Troubleshooting client issues

This document offers practical tips and insights to help you debug various problems, ensuring a seamless user experience.

NetBird agent status

The netbird agent is a daemon service that runs in the background; it provides information about peers connected and about the NetBird control services. You can check the status of the agent with the following command:

netbird status --detail

This will output the following information:

Peers detail:
 server-a.netbird.cloud:
  NetBird IP: 100.75.232.118/32
  Public key: kndklnsakldvnsld+XeRF4CLr/lcNF+DSdkd/t0nZHDqmE=
  Status: Connected
  -- detail --
  Connection type: P2P
  Direct: true
  ICE candidate (Local/Remote): host/host
  ICE candidate endpoints (Local/Remote): 10.128.0.35:51820/10.128.0.54:51820
  Last connection update: 20 seconds ago
  Last Wireguard handshake: 19 seconds ago
  Transfer status (received/sent) 6.1 KiB/20.6 KiB
  Quantum resistance: false
  Routes: 10.0.0.0/24
  Latency: 37.503682ms

 server-b.netbird.cloud:
  NetBird IP: 100.75.226.48/32
  Public key: Mi6jtrK5Tokndklnsakldvnsld+XeRF4CLr/lcNF+DSdkd=
  Status: Connected
  -- detail --
  Connection type: Relayed
  Direct: false
  ICE candidate (Local/Remote): relay/host
  ICE candidate endpoints (Local/Remote): 108.54.10.33:60434/10.128.0.12:51820
  Last connection update: 20 seconds ago
  Last Wireguard handshake: 18 seconds ago
  Transfer status (received/sent) 6.1 KiB/20.6 KiB
  Quantum resistance: false
  Routes: -
  Latency: 37.503682ms

OS: darwin/amd64
Daemon version: 0.27.4
CLI version: 0.27.4
Management: Connected to https://api.netbird.io:443
Signal: Connected to https://signal.netbird.io:443
Relays:
  [stun:turn.netbird.io:5555] is Available
  [turns:turn.netbird.ioo:443?transport=tcp] is Available
Nameservers:
  [8.8.8.8:53, 8.8.4.4:53] for [.] is Available
FQDN: maycons-mbp-2.netbird.cloud
NetBird IP: 100.75.143.239/16
Interface type: Kernel
Quantum resistance: false
Routes: -
Peers count: 2/2 Connected

As you can see, the output shows the peers connected, the NetBird IP address, the public key, the connection status, and the connection type. The status will also report if there is an issue connecting to the relay servers, the management server, or the signal server.

As for Peers, the status will show the following information:

  • Connection type: P2P, Relayed, where relayed connections indicate a limitation in the network that prevents a direct connection between the peers.
  • Direct: true/false, where true indicates a direct connection between the peers without a local proxy. This case is common when the local peer is allocating the relay connection.
  • ICE candidate (Local/Remote): relay/host, where relay indicates that the local peer is using a relay connection and host indicates that the remote peer is using a direct connection.
  • Last Wireguard handshake: Indicating the last time the Wireguard handshake was performed. Usually, this is performed every 2 minutes, and if you don't see an update here or if the value is empty, that indicates that the connection wasn't possible yet.
  • Transfer status (received/sent): Indicating the amount of data received and sent by the peer. This is useful to check if the connection is being used.

See more details about the status command here.

Getting client logs

By default, client logs are located in the /var/log/netbird/client.log file on macOS and Linux and in the C:\ProgramData\netbird\client.log file on Windows.

You can analyze the logs to identify the root cause of the problem. If you need help, open a github issue and attach the logs.

Debug bundle

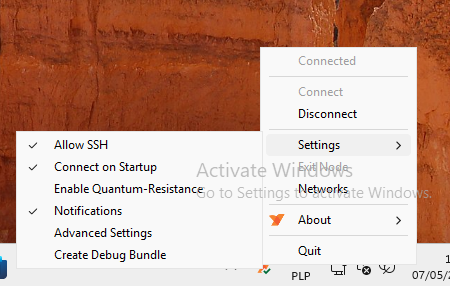

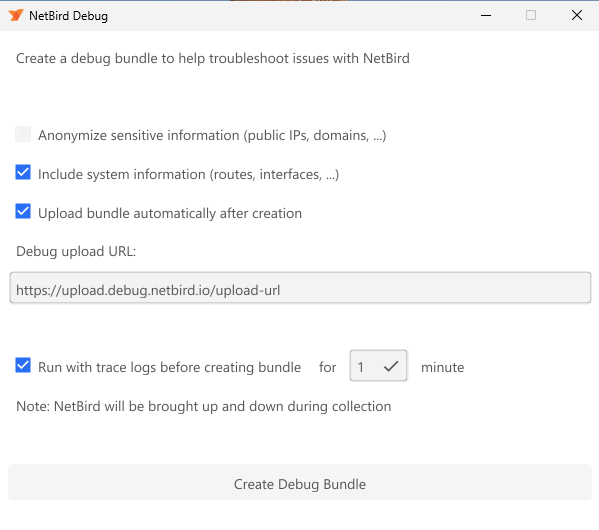

A debug archive containing the recent logs and the status at the time of execution can be generated with the following command.

Adding the -A flag will anonymize the logs, removing sensitive information such as public IP addresses and domain names. Adding the -S flag will add system information like network routes and interfaces

netbird debug bundle -AS

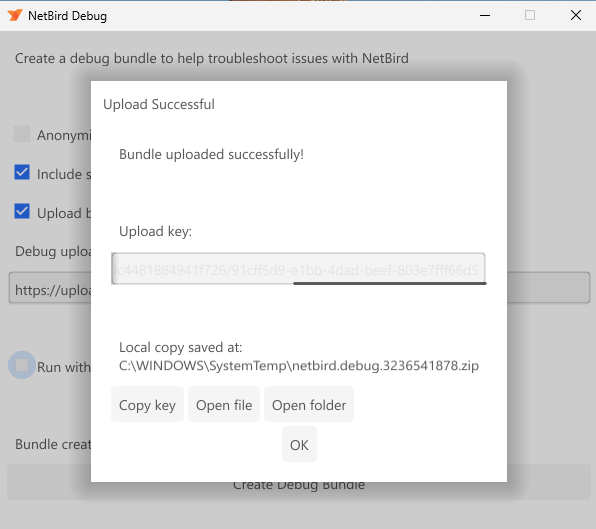

This will output the path of the generated file, which can be accessed with administrative privileges.

Debug for a specific time

To capture logs for a specific time period, you can use the debug for command. This will generate a debug bundle after the specified time has elapsed.

netbird debug for 5m -AS

To capture any issues arising during the up and down processes, this will set the log level to TRACE and bring netbird up and down up to a few times. After 5 minutes the netbird status will be restored to the previous state and the debug bundle will be generated.

Enabling debug logs on agent

Logs can be temporarily set using the following command.

netbird debug log level debug

or

netbird debug log level trace

The next time the daemon is restarted, the log level will return to the configured level.

Using netbird down and netbird up will not reset the log level.

To permanently set the log level, see the following sections.

On Linux with systemd

The default systemd unit file reads a set of environment variables from the path /etc/sysconfig/netbird. You can add the following line to the file to enable debug logs:

sudo mkdir -p /etc/sysconfig
echo 'NB_LOG_LEVEL=debug' | sudo tee -a /etc/sysconfig/netbird
sudo systemctl restart netbird

On Other Linux and MacOS

sudo netbird service stop
sudo netbird service uninstall
sudo netbird service install --log-level debug # or trace
sudo netbird service start

On Windows

You need to run the following commands with an elevated PowerShell or cmd.exe window.

netbird service stop
netbird service uninstall
netbird service install --log-level debug # or trace
netbird service start

On Docker

You can set the environment variable NB_LOG_LEVEL to debug to enable debug logs.

docker run --rm --name PEER_NAME --hostname PEER_NAME --cap-add=NET_ADMIN --cap-add=SYS_ADMIN --cap-add=SYS_RESOURCE -d \
-e NB_SETUP_KEY=<SETUP KEY> -e NB_LOG_LEVEL=debug -v netbird-client:/etc/netbird netbirdio/netbird:latest

On Android

Enable the ADB in the developer menu on the Android device. In the app set the the Trace log level setting - it is a checkbox in the advanced menu. With the ADB tool, you can get the logs from your device. The ADB is part of the SDK platform tools pack (zip file). You can download it from here. Please extract it and run the next command in the case of Linux:

sudo adb logcat -v time | grep GoLog

Running the agent in foreground mode

You can run the agent in foreground mode to see the logs in the terminal. This is useful to debugging issues with the agent.

Linux and MacOS

sudo netbird service stop
sudo netbird up -F

Windows

On Windows, the agent depends on the Wireguard's wintun.dll and can only be executed as a system account. To run the agent in foreground mode, you need to use a tool called PSExec.

Once you have downloaded and extracted psexec open an elevated Powershell window:

netbird service stop
.\PsExec64.exe -s cmd.exe /c "netbird up -F --log-level debug > c:\windows\temp\netbird.out.log 2>&1"

In case you need to configure environment variables, you need to add them as system variables so they get picked up by the agent on the next psexec run:

[Environment]::SetEnvironmentVariable("PIONS_LOG_DEBUG", "all", "Machine")

Enabling WireGuard in user space

Sometimes, you want to test NetBird running on userspace mode instead of a kernel module. That can be a check to see if there is a problem with NetBird's firewall management in kernel mode.

You must run the agent in foreground mode and set the environment variable NB_WG_KERNEL_DISABLED to true.

sudo netbird service stop
sudo bash -c 'NB_WG_KERNEL_DISABLED=true netbird up -F'  > /tmp/netbird.log

Debugging GRPC

The NetBird agent communicates with the Management and Signal servers using the GRPC framework. With these parameters, you can set verbose logging for this service.

sudo netbird service stop
sudo bash -c 'GRPC_GO_LOG_VERBOSITY_LEVEL=99 GRPC_GO_LOG_SEVERITY_LEVEL=info netbird up -F' > /tmp/netbird.log

Debugging ICE connections

The Netbird agent communicates with other peers through the Interactive Connectivity Establishment (ICE) protocol described in the RFC 8445. To debug the connection procedure, set verbose logging for the the Pion/ICE library with the PIONS_LOG_DEBUG or PIONS_LOG_TRACE variable.

Environment variable

PIONS_LOG_DEBUG=all
NB_LOG_LEVEL=debug

sudo netbird service stop
sudo bash -c 'PIONS_LOG_DEBUG=all NB_LOG_LEVEL=debug netbird up -F' > /tmp/netbird.log

Debugging access to network resources

In this section we will be presenting methodology of troubleshooting access issues involving Netbird.

We will start by presenting a glossary of all machines and services involved. A sub-section will describe a specific use case. Each will start with a concise summary of usual troubleshooting steps then expand into more detailed step-by-step guides.

Glossary

We will be using the following names for resources outside the Netbird network:

  • int-net1: an internal network 10.123.45.0/24,
  • srv-c: an internal HTTP server running at 10.123.45.17,
  • int-dns1: an internal DNS server running at 10.123.45.6,
  • int-dns2: an internal DNS server nunning at 10.7.8.9,
  • cf-dns: an Internet-accessible CloudFlare DNS server at 1.1.1.1 and 1.0.0.1,

and following Netbird network resources:

  • peer-a: end user's device running Netbird Client,
  • peer-b: a linux server inside the internal network running Netbird Client,
    • it has direct access to the whole int-net1 IP range,
  • users:employees: a Netbird Group containing peer-a,
  • routers:int-net1: a Netbird Group containing peer-b,
  • access:srv-c: a Netbird Groups used as a target of ACL rules for srv-c only,
  • access:int-net1: a Netbird Groups used as a target of ACL rules for the whole subnet,
  • net-a: a Netbird Network
    • net-a:srv-c: a Network Resource handling traffic to 10.123.45.17/32 (srv-c),
    • net-a:int-net1: a Network Resource handling traffic to 10.123.45.0/24 (int-net1),
  • route:int-net1: a Netbird Network Route handling traffic to 10.123.45.0/24 (int-net1),
  • route:srv-c: a Netbird Network Route handling traffic to 10.123.45.17/32 (srv-c),

Access from peer-a to srv-c

In short:

  1. Does peer-b have direct access to srv-c's port 80?
  2. Can a routing peer peer-b forward traffic to srv-c?
  3. Are Netbird's network routing resources configured?
  4. Do Netbird's Access Control rules allow access from peer-a to peer-b?
  5. Do Netbird's Access Control rules allow access from peer-a to the target's ACL Group?
  6. Is peer-a's operating system configured to use the route?

Does peer-b have direct access to srv-c's port 80?

After logging in to peer-b you can confirm/troubleshoot the HTTP port 80 connection by issuing any of the following commands:

curl -v "http://10.123.45.17"
curl --fail -v --max-time=2 "http://10.123.45.17:80"
wget -O - --timeout=2 "http://10.123.45.17:80"
nc -nvz -w 2 10.123.45.17 80

You can also try ping (an ICMP packet), but the firewall might have a different configuration for ICMP and TCP ports:

ping --numeric --count=1 --timeout=2 10.123.45.17

Can a routing peer peer-b forward traffic to srv-c?

Only Linux OS machines can be assigned as routing peers.

This is more complicated to test, but usually boils down to confirming net.ipv4.ip_forward is set to 1 on peer-b's Linux operating system:

> sysctl net.ipv4.ip_forward
net.ipv4.ip_forward = 1

For setting up the value persistently (across reboots) please consult your operating system's documentation. It is often handled by either /etc/sysctl.conf or /etc/sysctl.d/*.conf files.

Testing the functionality in practice involves:

  • connecting to another machine with direct access to peer-b,
  • adding a routing table entry to route int-net1 (10.123.45.0/24) traffic through it,
  • trying to at least ping 10.123.45.17 (srv-c)

Are Netbird's network routing resources configured?

For Netbird network routing resources configurations you can use either (new) Networks or (old) Network Routes.

A Network net-a should have at minimum:

  • Network Resource: net-a:srv-c with either of:
    • an Address set to 10.123.45.17/32 to configure route to srv-c exclusively and nothing else,
    • Assigned Groups set to access:srv-c
  • Routing Peer Group assigned to routers:int-net1

A Network Route route:srv-c should have at least:

  • a Network Range set to 10.123.45.17/32 to configure route to srv-c exclusively and nothing else,
  • Routing Peer Group assigned to routers:int-net1,
  • Distribution Group assigned to users:employees,
  • (optional) Access Control Groups assigned to access:srv-c,

You can loosen the rules and replace following to grant access to the whole int-net1 network range:

  • Address: 10.123.45.17/32 -> 10.123.45.0/24,
  • Assigned Groups / Access Control Groups: access:srv-c -> access:int-net1

Do Netbird's Access Control rules allow access from peer-a to peer-b?

There should be an Access Control Policy present allowing traffic from users:employees Group to routers:int-net1 Group.

You can confirm the Policy is working by:

  1. logging in to peer-a,
  2. issuing netbird status -d command,
  3. finding peer-b.netbird.cloud under Peers detail,

In the most specific setup it should have at:

  • have TCP protocol selected,
  • a blue arrow should point from left to right and a second right-to-left arrow should be greyed out,
  • a Source group set to users:employees,
  • a Destination group set to routers:int-net1,
  • have 80 in the Ports section,

You can loosen above example by:

  • allowing ALL protocol, Ports will become greyed out because all traffic will be allowed,
  • creating a bidirectional rule (both arrows should be green), always true for the protocol ALL,
  • selecting a different source group from the pool assigned to peer-a,
    • it could be built-in All group, but it is discouraged,
  • selecting a different destination group from the pool assigned to peer-b,
    • it could be built-in All group, but it is discouraged,

Do Netbird's Access Control rules allow access from peer-a to the target's ACL Group?

You can skip this check, when you are using (old) Network Route feature without filling in Access Control Groups ( optional) section.

Otherwise, there should be an Access Control Policy present allowing traffic from one of peer-a's Groups to:

  • Networks Resource's Assigned Groups: access:srv-c or access:int-net1,
  • Network Route's Access Control Groups: access:srv-c or access:int-net1,

You can confirm the Policy is working by:

  1. logging in to peer-a,
  2. issuing netbird status -d command,
  3. finding peer-b.netbird.cloud under Peers detail,
  4. finding 10.123.45.0/24 or 10.123.45.17/32 under peer-b.netbird.cloud's Networks field,

In the most specific setup it should have at:

  • have TCP protocol selected,
  • a blue arrow should point from left to right and a second right-to-left arrow should be greyed out,
  • a Source group set to users:employees,
  • a Destination group set to access:srv-c,
  • have 80 in the Ports section,

Just like with the previous section you can loosen the above example by:

  • replacing access:srv-c Group with access:int-net1 Group,
  • allowing ALL protocol, Ports will become greyed out because all traffic will be allowed,
  • creating a bidirectional rule (both arrows should be green), always true for the protocol ALL,
  • selecting a different source group from the pool assigned to peer-a,
    • it could be built-in All group, but it is discouraged,
  • selecting a different destination group from the pool assigned to peer-b,
    • it could be built-in All group, but it is discouraged,

Is peer-a's operating system configured to use the route?

After all resources are configured in the Netbird management you should check whether they are properly registered with your operating system.

You can start by checking Netbird client's configuration with netbird status -d command:

% netbird status -d
Peers detail:
 brys-vm-nbt-ubuntu-isolated-01.netbird.cloud:
...
  Status: Connected
  -- detail --
  Connection type: P2P
...
  Networks: 10.123.45.0/24
...
Peers count: 1/1 Connected

You should be primarily looking for Networks section under each Peers detail, but you can also check:

  • Peer's name,
  • Peer's Status: it should be Connected,
  • Peer's Connection type: it can be either P2P (direct) or Relayed (over the Internet),
  • Peers count near the end of the output,
Verifying routing configuration on the Windows operating system

Below commands assume running a PowerShell prompt with administrator's privileges.

The easiest way is to read output of Get-NetRoute command:

PS C:\Users\user> Get-NetRoute

ifIndex DestinationPrefix                              NextHop                                  RouteMetric ifMetric PolicyStore
------- -----------------                              -------                                  ----------- -------- -----------
...
17      10.123.45.255/32                             0.0.0.0                                          256 5        ActiveStore
17      10.123.45.0/24                               0.0.0.0                                            1 5        ActiveStore
...
17      100.83.255.255/32                              0.0.0.0                                          256 5        ActiveStore
17      100.83.183.133/32                              0.0.0.0                                          256 5        ActiveStore
17      100.83.0.0/16                                  0.0.0.0                                          256 5        ActiveStore
...

You should be looking for your specific subnet's IP ranges (10.123.45.0/24 in case of int-net1) and anything from 100.*.0.0/16 range.

Some other alternatives are route print & Get-NetIPConfiguration.

Verifying routing configuration on the MacOS operating system

The easiest way to verify system configuration is netstat -nr command:

% netstat -nr

Routing tables

Internet:
Destination        Gateway            Flags               Netif Expire
...
100.83/16          utun100            USc               utun100
100.83.19.63       100.83.19.63       UH                utun100
...
10.123.45          utun100            USc               utun100
...

Internet6:
Destination                             Gateway                                 Flags               Netif Expire
...

You should be looking for utun* interface in 4th column and searching the rows for your specific subnet's clamped IP ranges (10.123.45 in case of int-net1) and anything from 100.*/16 range.

Verifying routing configuration on the Linux operating system

Depending on specifics of your Linux distribution (or even your configuration of it) you should be able to use either iproute2 or net-tools family of network commands.

Netbird client stores it's custom routes in the routing table 7120 (or 0x1BD0) when it's available (through iproute2 interface).

For iproute2 (ip, ss tools):

  • ip route to find built-in 100.*.0.0/16 route,
  • ip route show table 7120 or ip route show table all to find the specific routed networks,

For net-tools (ifconfig, route, netstat tools):

  • route -n to find built-in 100.*.0.0/16 route,
  • neither route nor netstat support viewing content of custom routing tables,

Public nameservers

When you configure a Nameserver accessible from the Internet without a VPN, the Netbird client acts as a proxy to the public nameserver.

There are really just two things you can check:

  1. Confirm Netbird client picked up the nameserver,
  2. Confirm the operating system is configured to use Netbird client's proxy nameserver,

You can check the first one in operating system independent manner by:

  1. running netbird status -d,
  2. locating the Nameserver's IP address
  3. confirming it is Available (it could also be timed out or in other state)
...
Nameservers:
  [1.1.1.1:53, 1.0.0.1:53] for [.] is Available
...

Verifying the DNS names resolve properly in practice

Here is a short summary of commands querying nameservers for name.at.example.com in different operating systems. The . at the end makes sure you are querying a fully-qualified names independent of your local network's configuration (specifically search domains):

# MacOS
dscacheutil -q host -a name name.at.example.com.
# Windows PowerShell
Resolve-DnsName -Name name.at.example.com.
# Linux/UNIX
dig name.at.example.com.
nslookup name.at.example.com.
# Linux with systemd-resolved
resolvectl query name.at.example.com.

Verifying the nameservers are properly registered in Windows operating system

To confirm the nameservers are properly registered in Windows operating system using PowerShell:

PS C:\Users\user> Get-DnsClientNrptRule
Name                             : NetBird-Match
Version                          : 2
Namespace                        : {.netbird.cloud, .83.100.in-addr.arpa}
...
NameServers                      : 100.83.255.254
...
PS C:\Users\kdn> Get-DnsClientNrptPolicy


Namespace                        : .83.100.in-addr.arpa
...
NameServers                      : 100.83.255.254
..

Namespace                        : .netbird.cloud
...
NameServers                      : 100.83.255.254
...

You should be searching for following in the outputs of above commands:

  • the 100.XXX.255.254 under Nameservers (a local proxy address of the Netbird client)
  • .netbird.cloud and .XXX.100.in-addr.arpa under matching Namespace for built-in entries,
  • .your.custom.domain.example.com under matching Namespace for your custom domains,

Verifying the nameservers are properly registered in MacOS operating system

To confirm the nameservers are properly registered in MacOS operating system using terminal:

> scutil --dns
...
resolver #2
  domain   : netbird.cloud
  nameserver[0] : 100.83.255.254
  port     : 53
  flags    : Supplemental, Request A records, Request AAAA records
  reach    : 0x00000002 (Reachable)
  order    : 101200
...
resolver #8
  domain   : 83.100.in-addr.arpa
  nameserver[0] : 100.83.255.254
  port     : 53
  flags    : Supplemental, Request A records, Request AAAA records
  reach    : 0x00000002 (Reachable)
  order    : 102402
...

You should be searching for following in the outputs of above commands:

  • the 100.XXX.255.254 under nameserver[N] (a local proxy address of the Netbird client)
  • netbird.cloud and .XXX.100.in-addr.arpa under matching domain for built-in entries,
  • .your.custom.domain.example.com under matching domain for your custom domains,
  • Reachable under reach field,

Verifying the nameservers are properly registered in Linux operating system

Nameserver can be configured in different ways depending on your specific distribution's configuration:

For systemd-resolved, you can see the config with resolvectl status,

For other configuration backends, you should see additional entries in /etc/resolv.conf:

  • 127.0.0.1 - default address for Netbird DNS proxy listener
  • 127.0.0.153 - fallback address for Netbird DNS proxy listener
  • value of $NB_DNS_RESOLVER_ADDRESS - a custom override for the Netbird DNS proxy listener

You can find the address Netbird client is listening by issuing one of following commands:

sudo ss -nlptu 'sport = 53' | grep netbird
sudo netstat -ltnup | grep ':53' | grep netbird

Internal nameservers

When you configure an internal Nameserver, not accessible from the Internet in addition to steps described in the previous section Public nameservers you should make sure the Nameserver's IP addresses are properly routed and accessible.

Please refer to Access from peer-a to srv-c section above.

To configure int-dns1, while following Access from peer-a to srv-c section you should:

  • substitute port 80 for port 53
  • substitute ip address 10.123.45.17 for 10.123.45.6,

To configure int-dns2, while following Access from peer-a to srv-c section you should:

  • substitute port 80 for port 53
  • completely ignore the 10.123.45.0/24 network instructions,
  • substitute ip address 10.123.45.17 for 10.7.8.9,
  • create a respective Network (along with Resources and Routing Peers) or Network Route for the 10.7.8.9/32 IP address range,

To test the configuration in practice please refer to previous section Public nameservers. usb-storage,drive=raw-30F4989D-AE95B60F797D,serial=30F4989D-AE95B60F797D
