JumpCloud with NetBird Self-Hosted

This guide is a part of the NetBird Self-hosting Guide and explains how to integrate self-hosted NetBird with JumpCloud.

Before you start creating and configuring an JumpCloud application, ensure that you have the following:

• An JumpCloud account: To create application, you must have an JumpCloud account. If you don't have one, sign up at https://jumpcloud.com/.
• User account with admin permissions: You must have an JumpCloud account with the admin permissions. If you don't have the required permissions, ask your administrator to grant them to you.

Step 1: Create and configure SSO application

• Navigate to to Admin Portal page

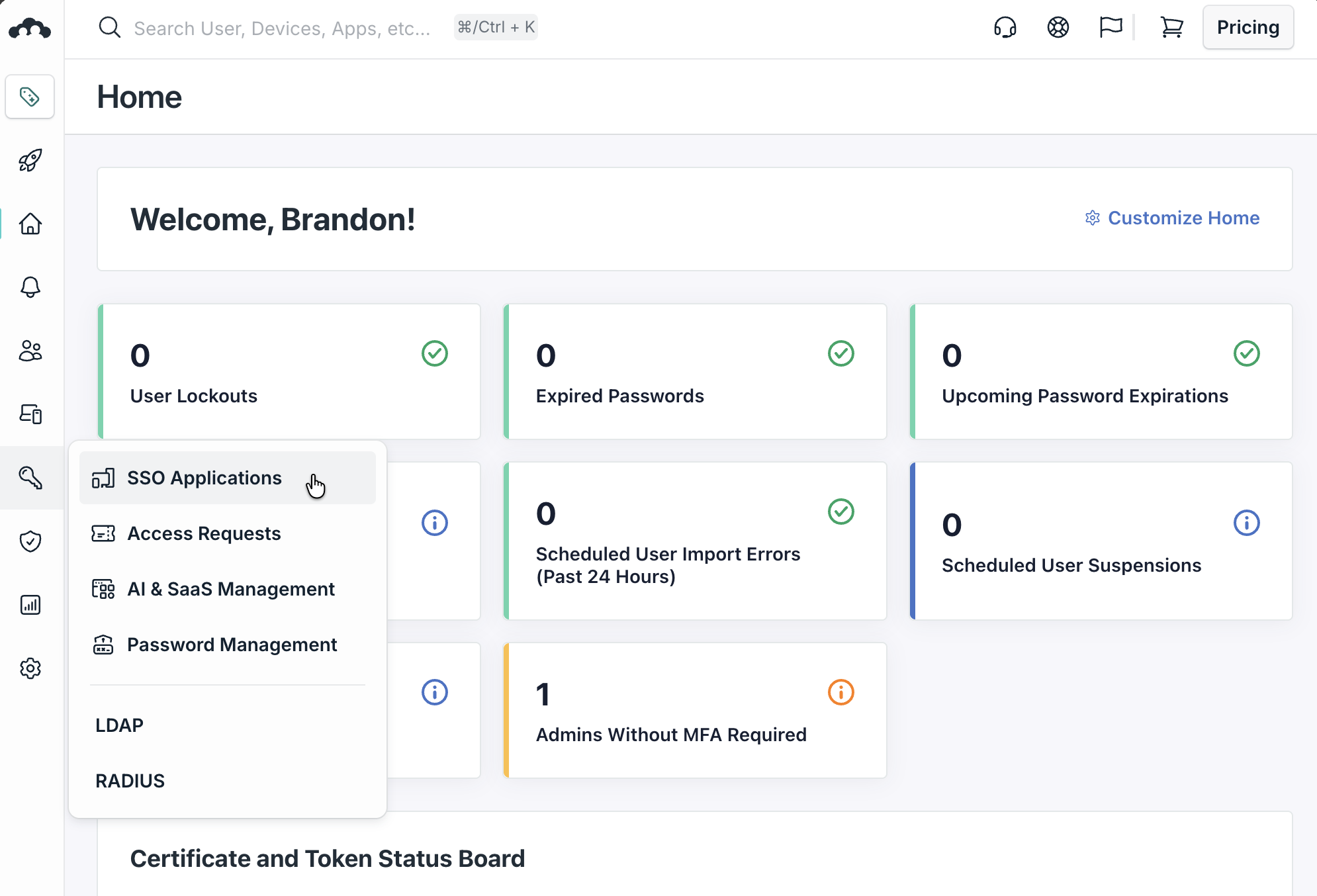

• Click SSO Applications on the left menu under USER AUTHENTICATION section

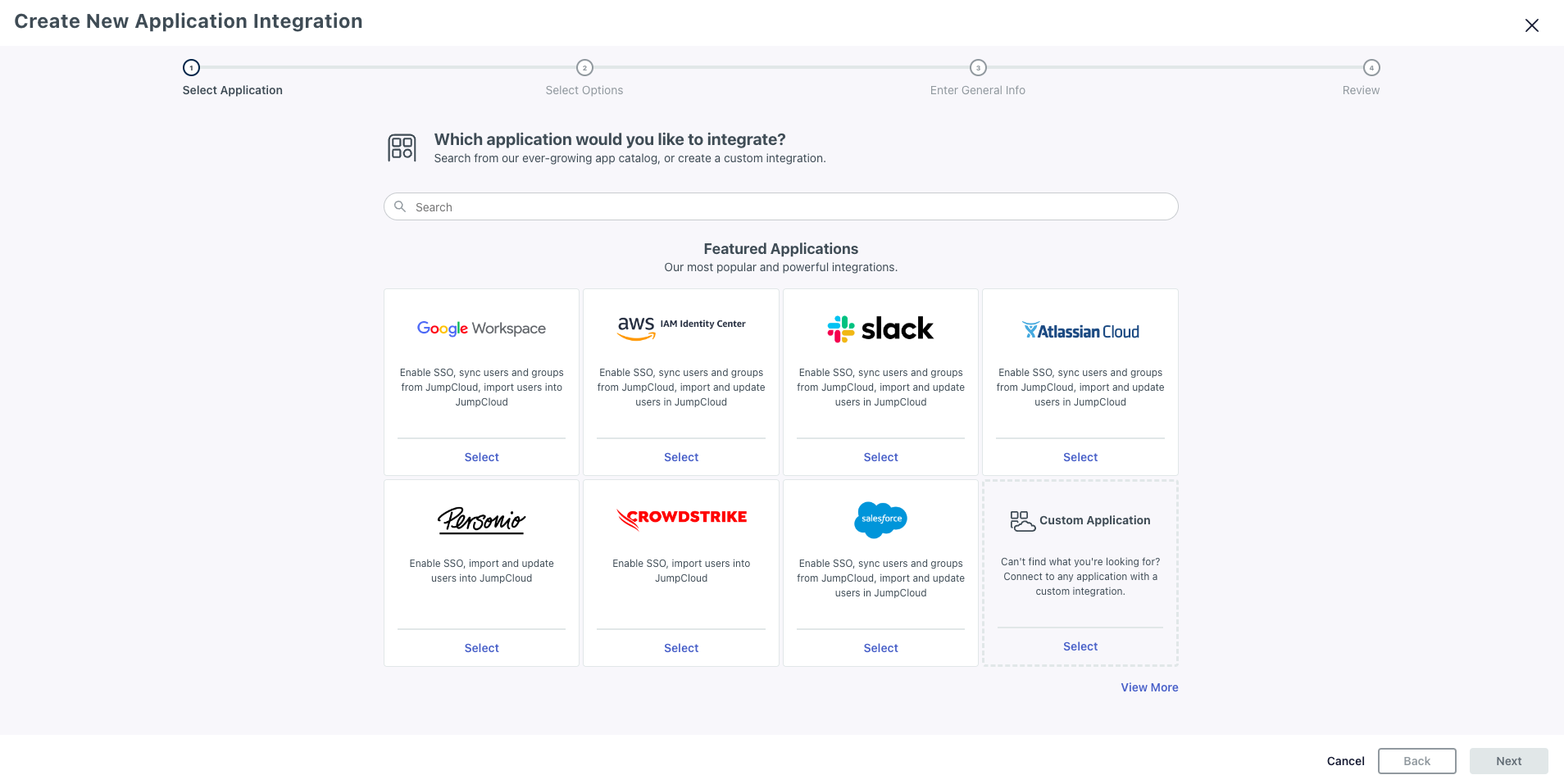

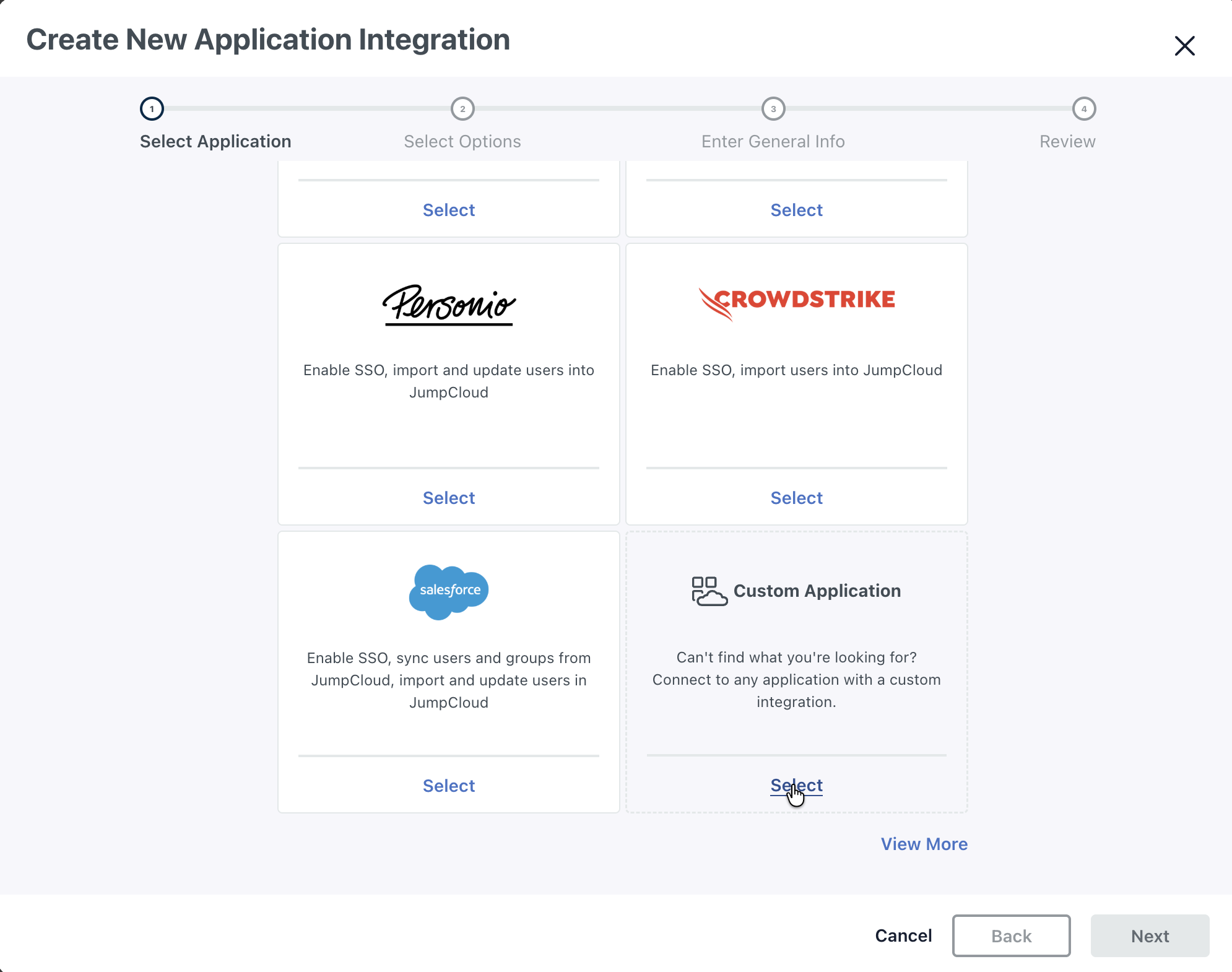

• Click Add New Application and select Custom Application

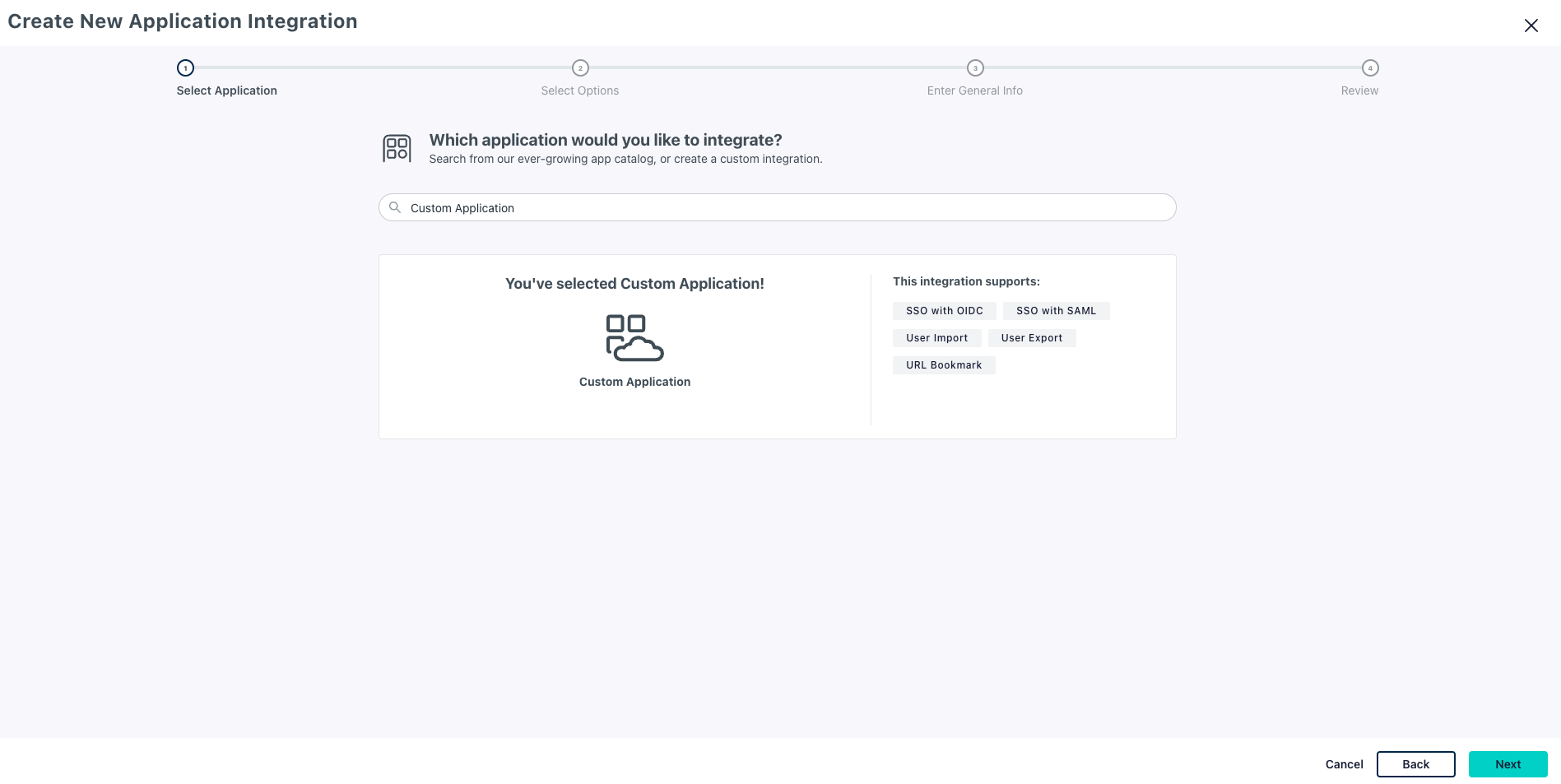

• On the Which application would you like to integrate screen, confirm that you've selected Custom application and click Next

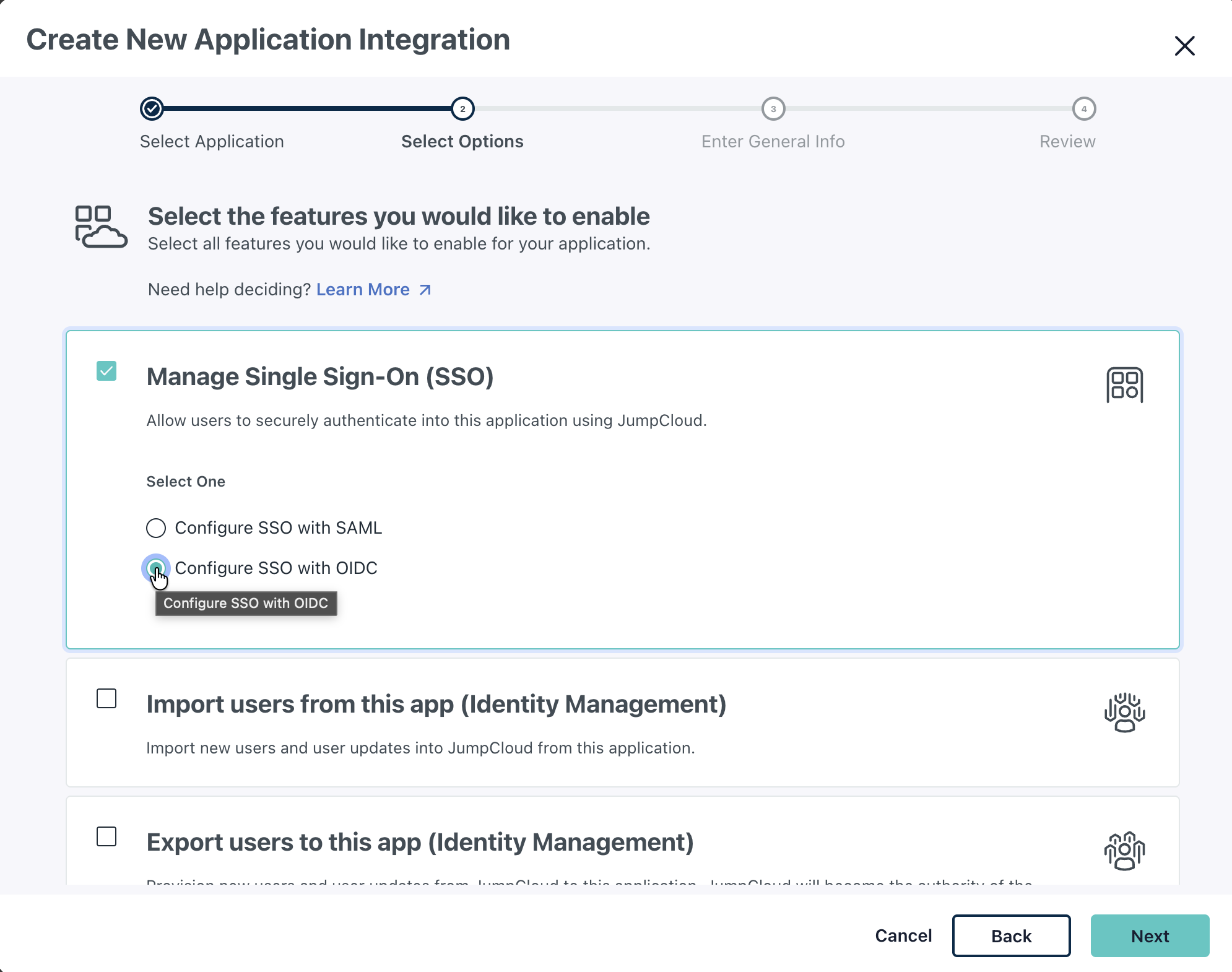

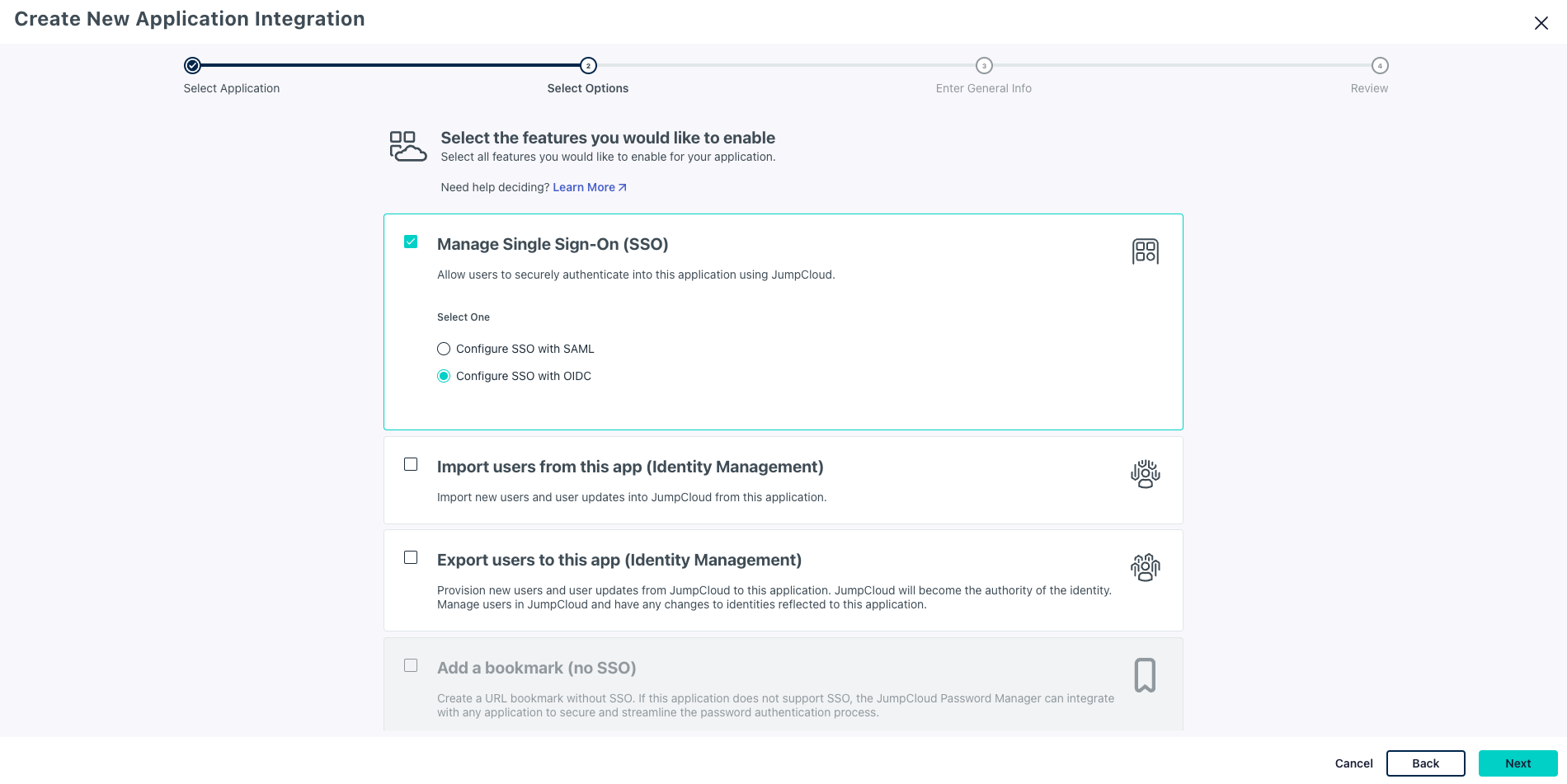

• On the Select the features you would like to enable screen, select Manage Single Sign-On (SSO) and check Configure SSO with OIDC and click Next

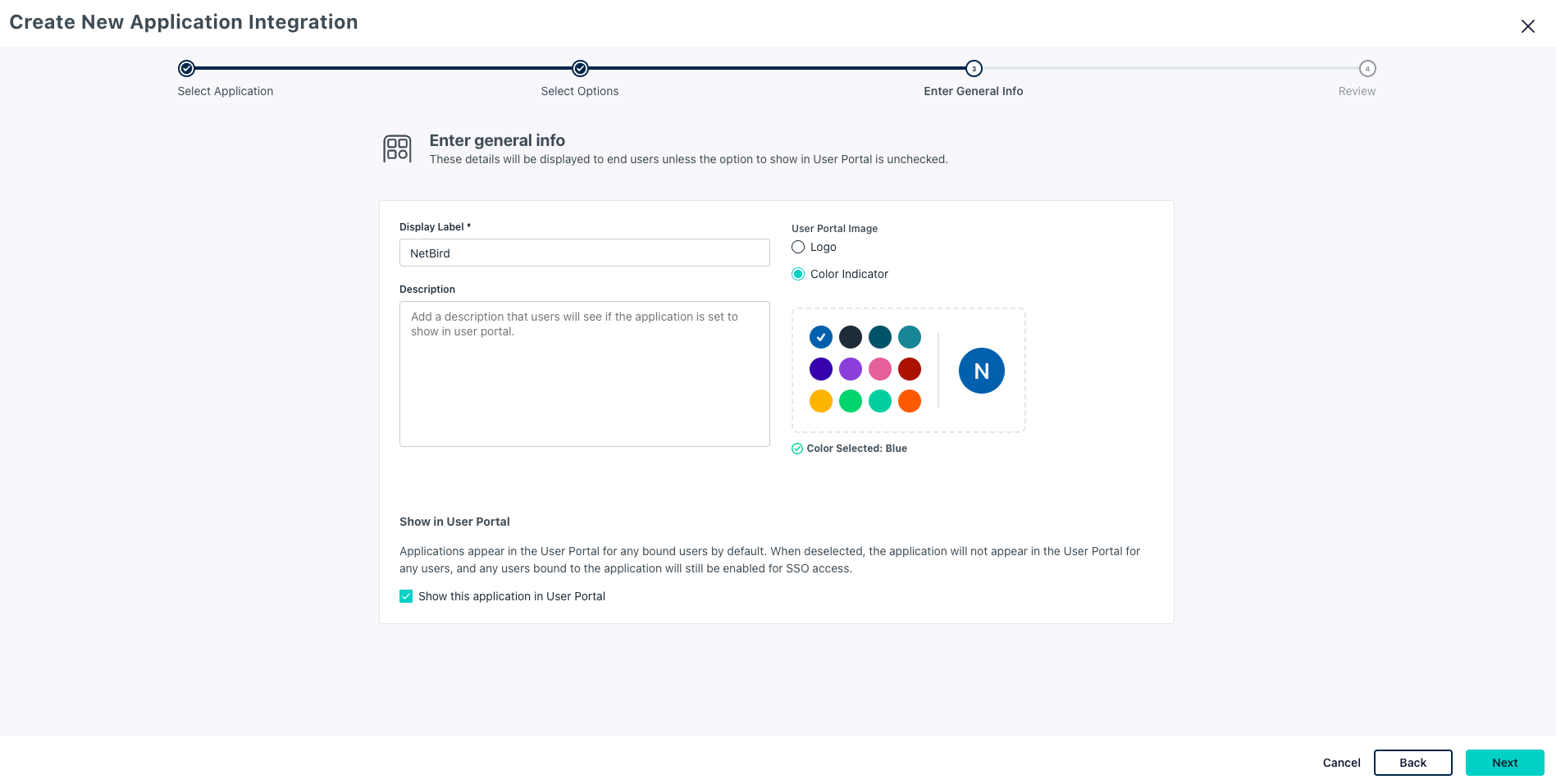

• On the Enter General info screen, add NetBird as Display Label and click Next

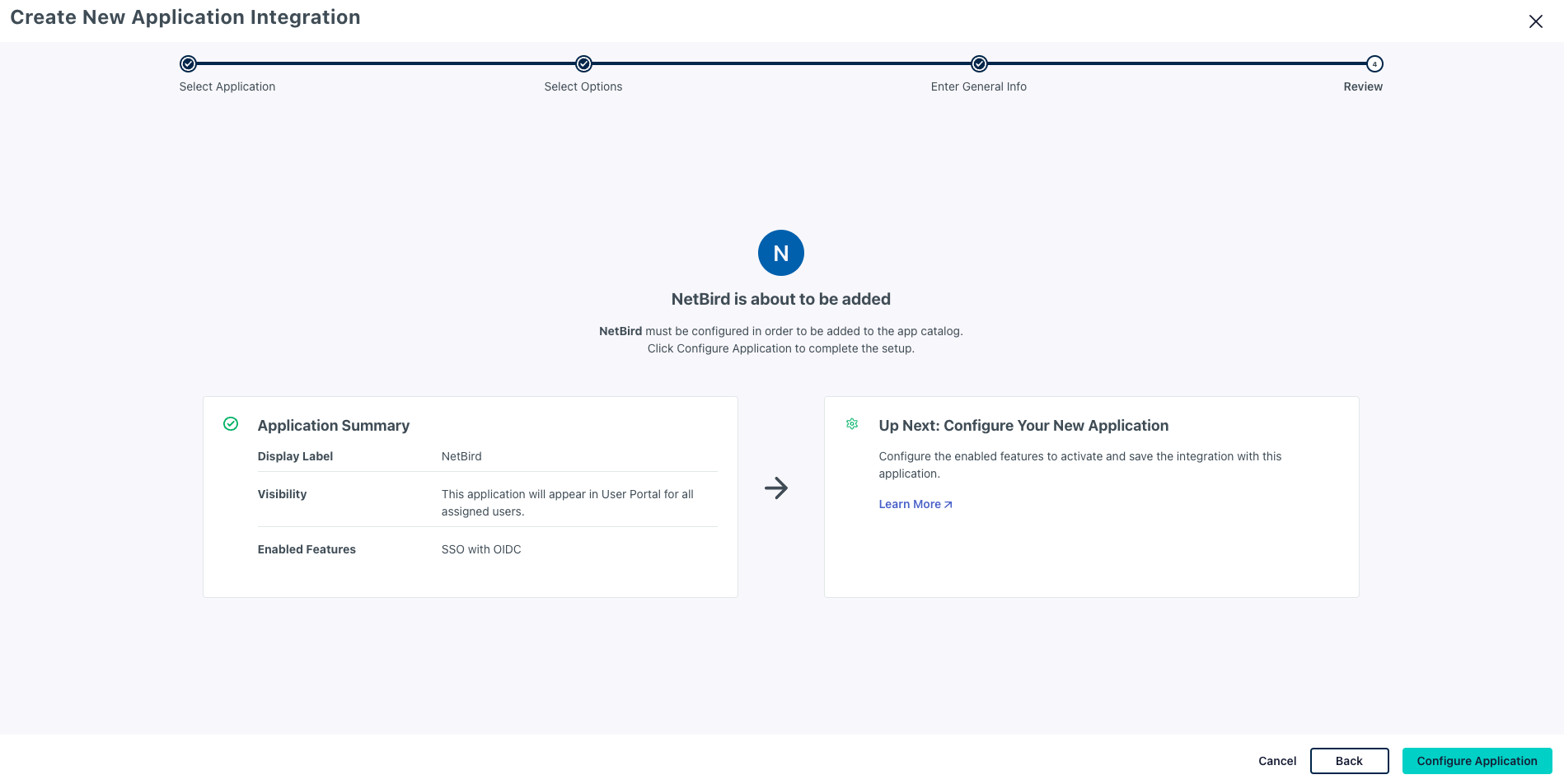

• On the confirmation screen, review the information and click on Configure Application to proceed

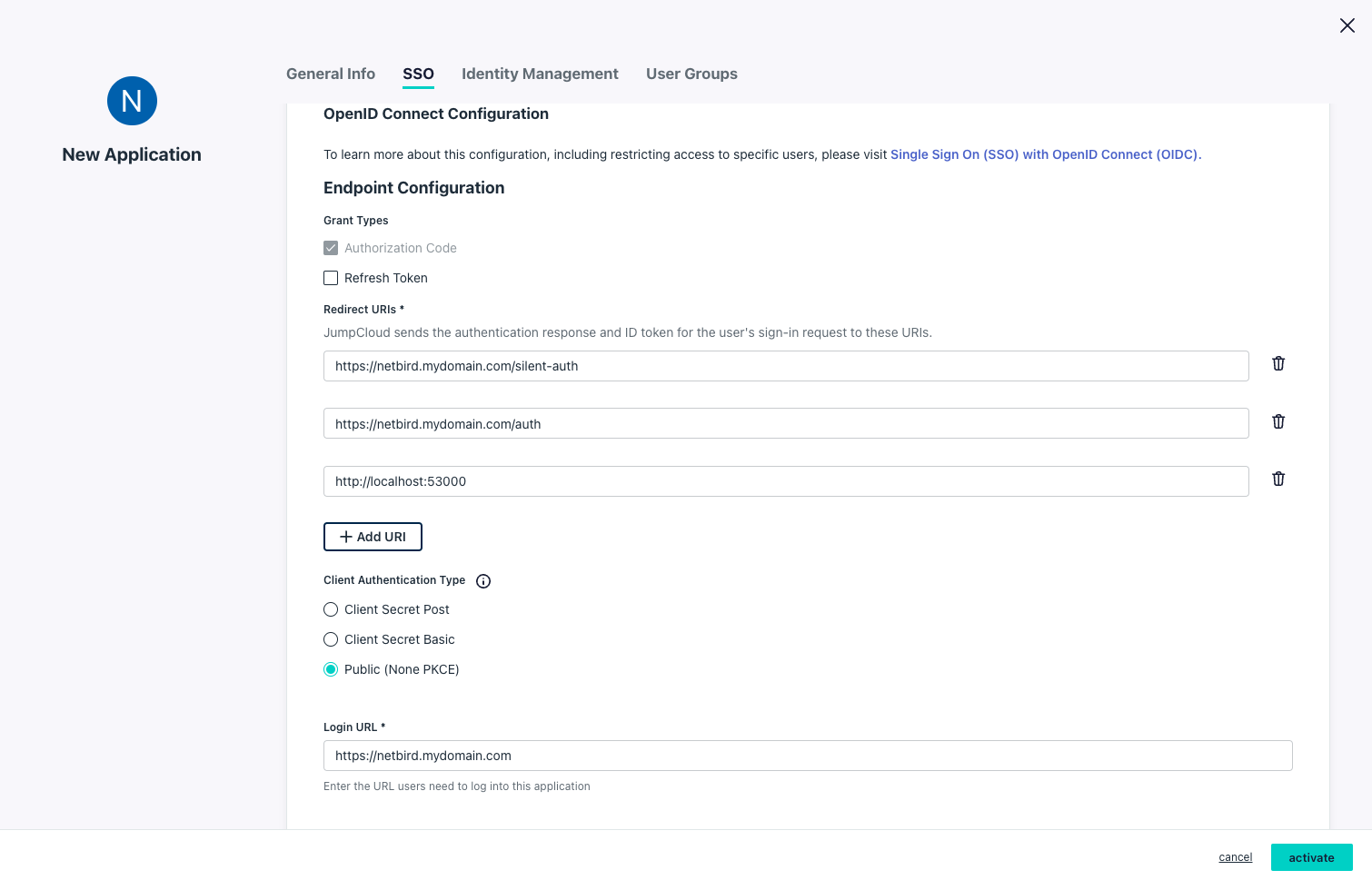

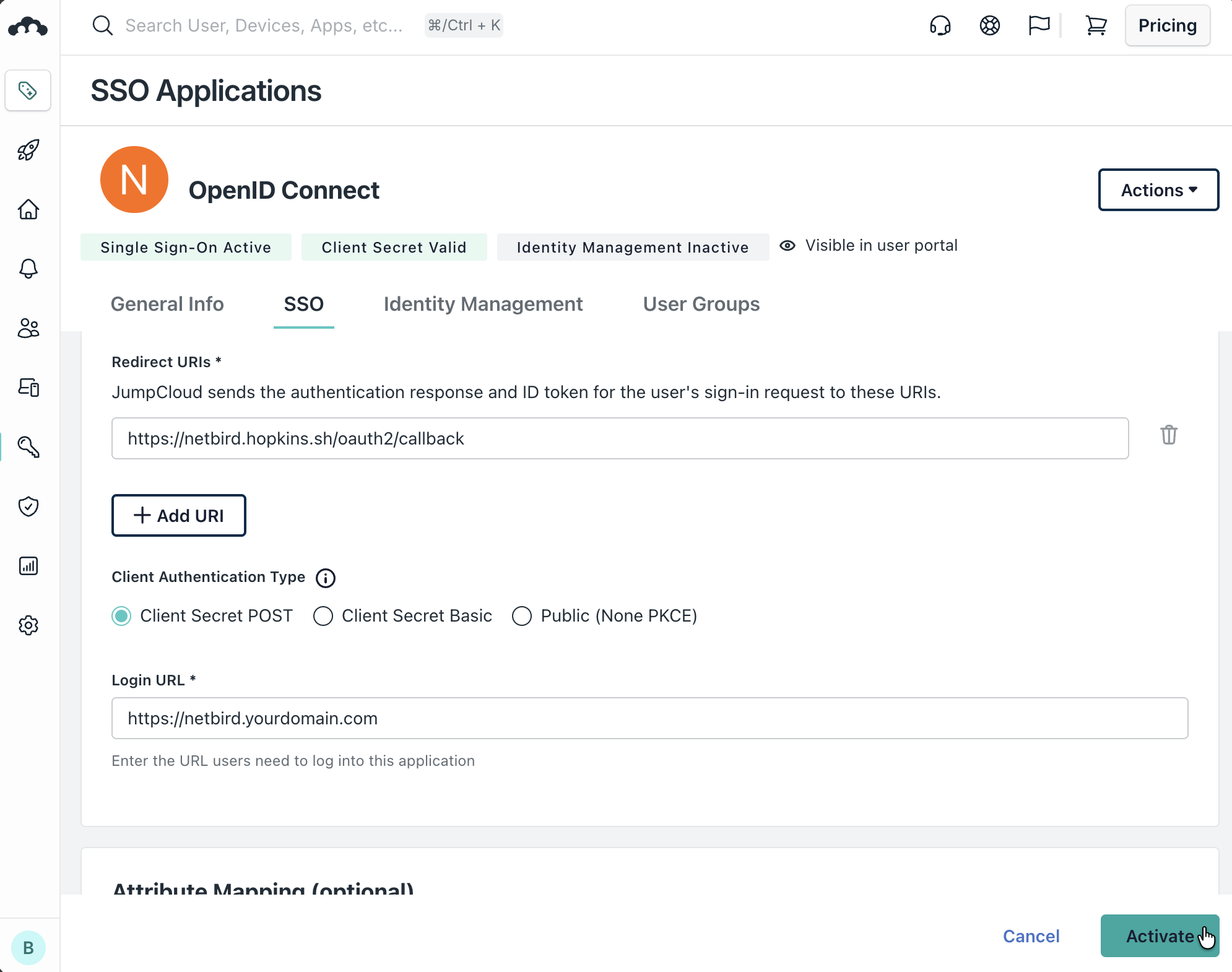

• On the New Application screen, click on the SSO tab and enter the following values:
  • Under Endpoint Configuration section:
    • Redirect URIs: https://<domain>/silent-auth, https://<domain>/auth and http://localhost:53000
    • Client Authentication Type: Public (None PKCE)
    • Login URL: https://<domain>

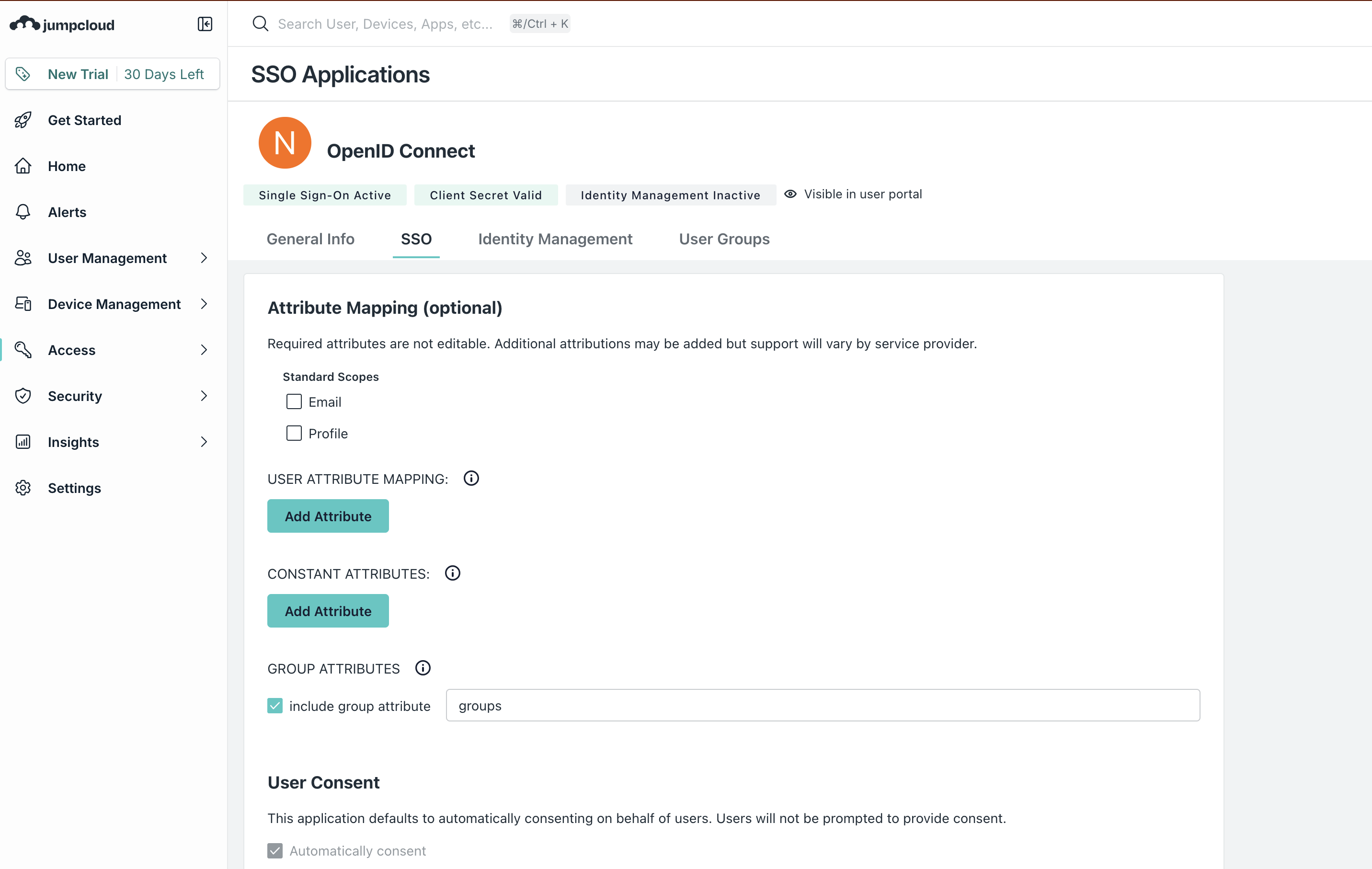

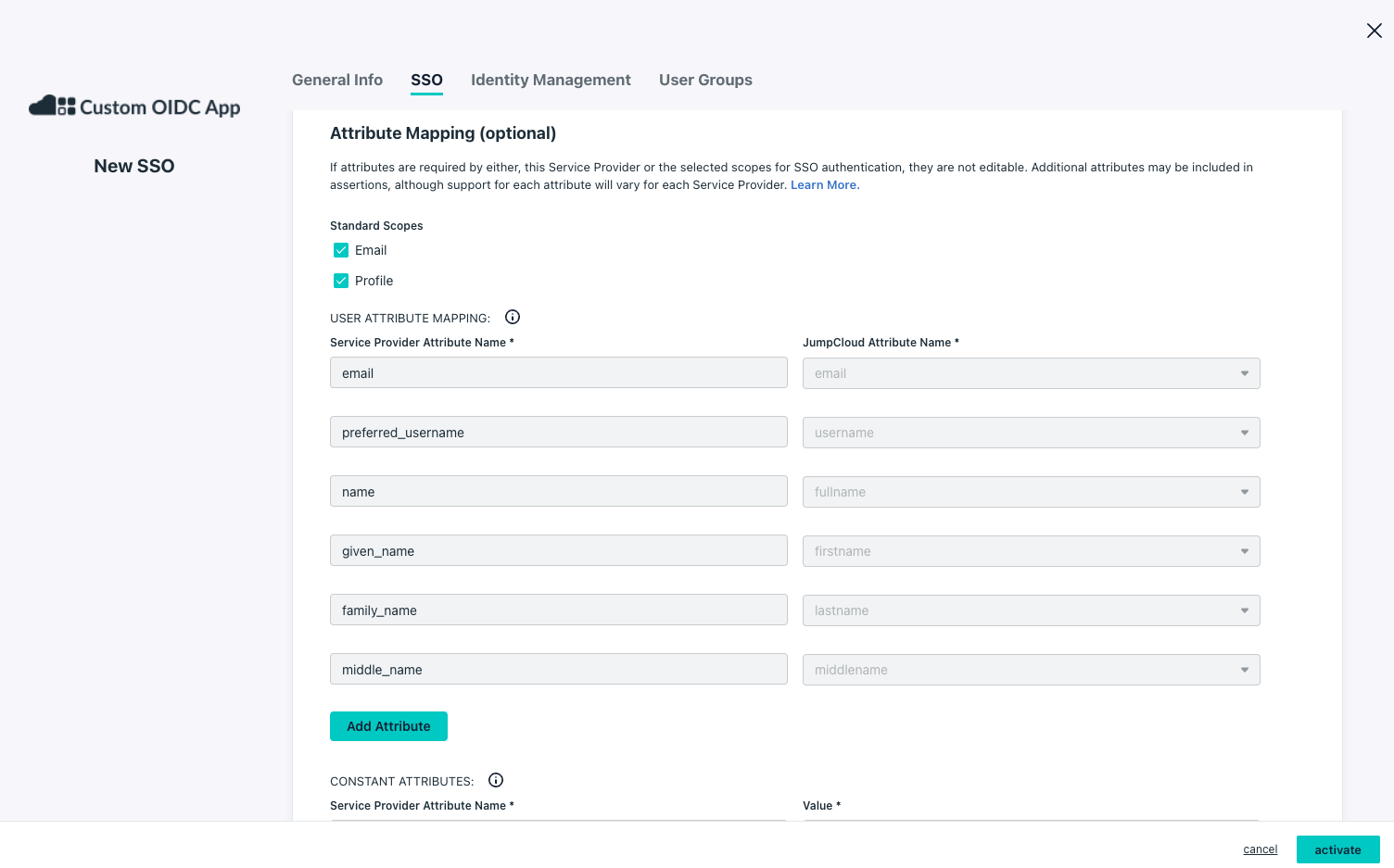

• Under Attribute Mapping (optional) section:
  • Standard Scopes: Email, Profile

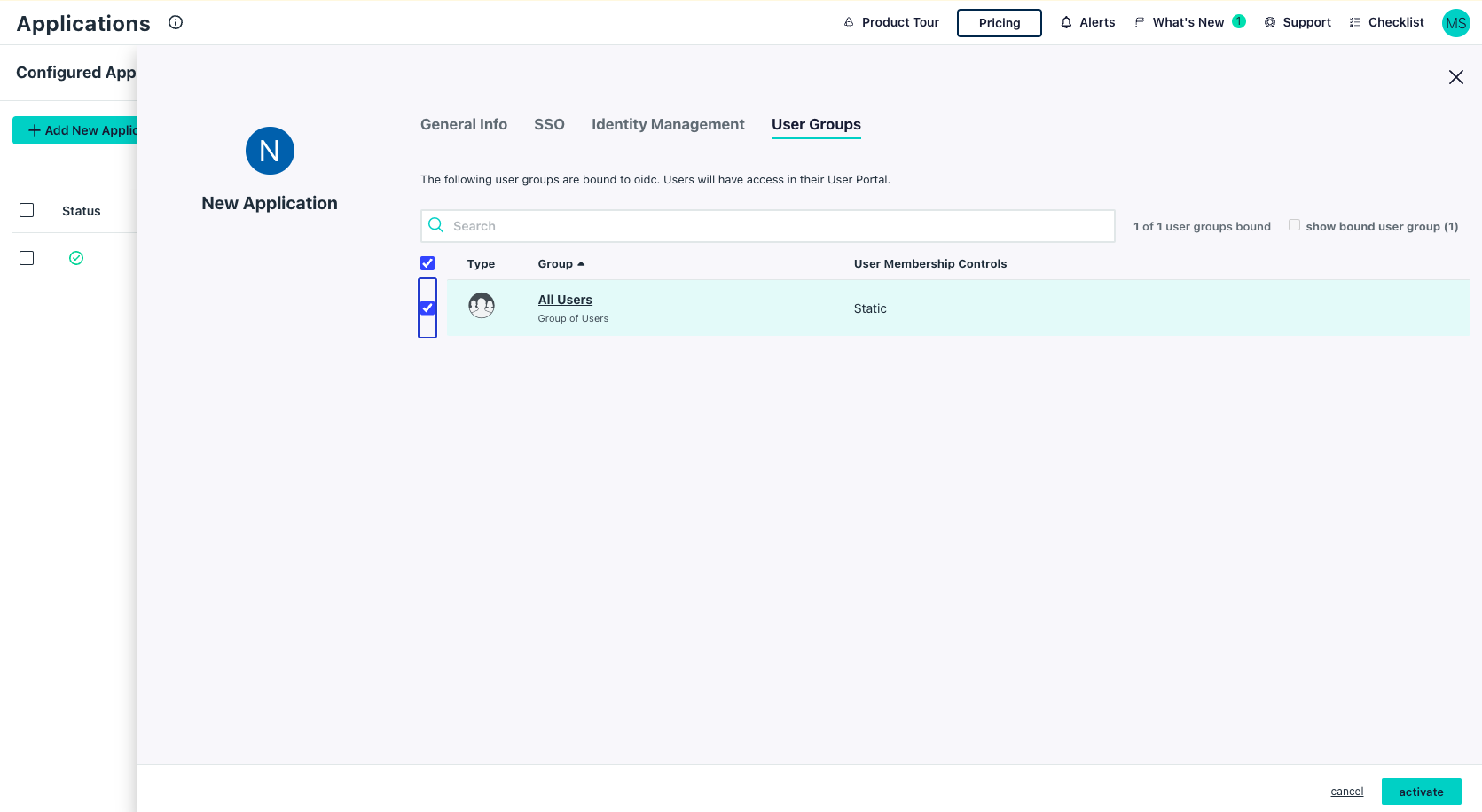

• Click on the User Groups tab and select the user groups that can access this application

• Click Activate

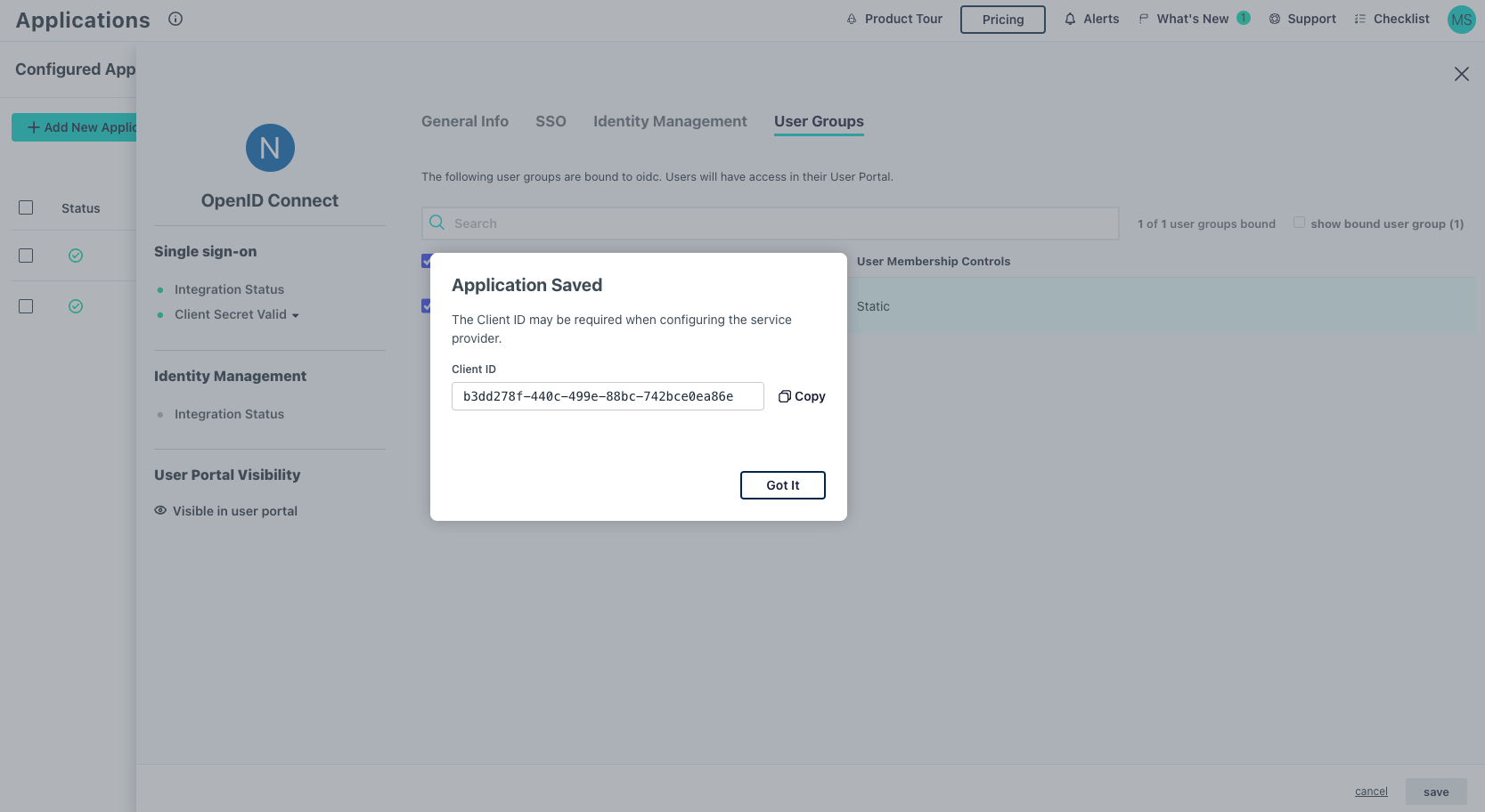

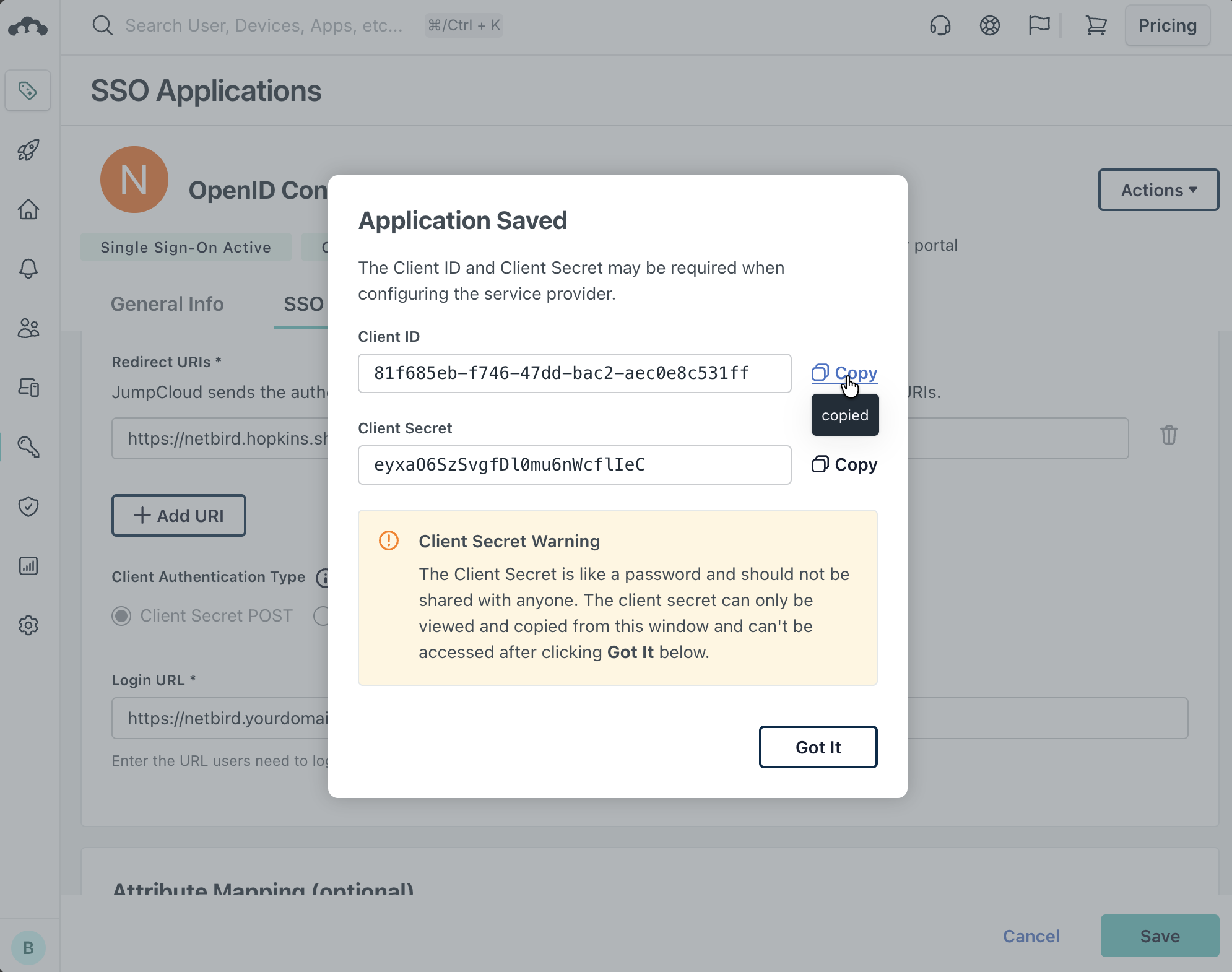

• Take note of Client ID, will be used later

Step 2: Create an account administrator for integration

The NetBird management system requires an API token to get user information from JumpCloud. This API is bound to an administrator user configured in JumpCloud's admin portal.

The following steps will assume that you are creating a new account. If you already have a user for this purpose, confirm it has the required role described below and skip to Step 3 in this guide.

• Navigate to to Admin Portal page
• Go to account Settings and click on the add button (+)

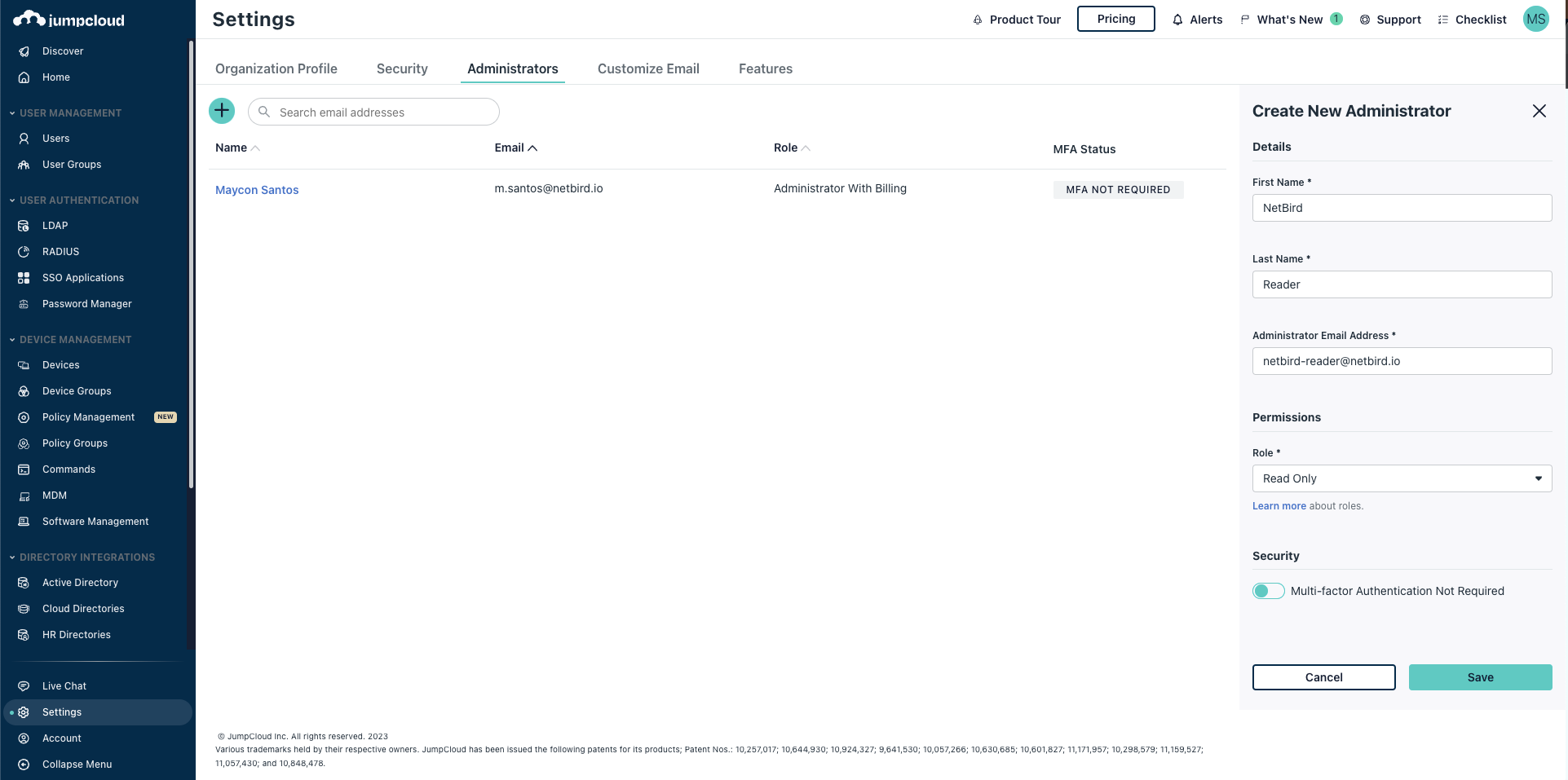

• On the Create New Administrator window, enter the following values:
  • First Name: NetBird
  • Last Name: Integration
  • Administrator Email: netbird-user@<yourdomain> # this email will be used to receive the login instructions
  • Role: Read Only
  • Click Save

After following the steps above, you will receive the login instructions for the newly created user in the email configured. Please follow the instructions to set a password for the user.

Step 3: Generate api token

In this step, we will generate netbird api token in jumpcloud for authorizing calls to user api.

• Navigate to to Admin Portal page
• Login with the user created in the previous step or with an existing user

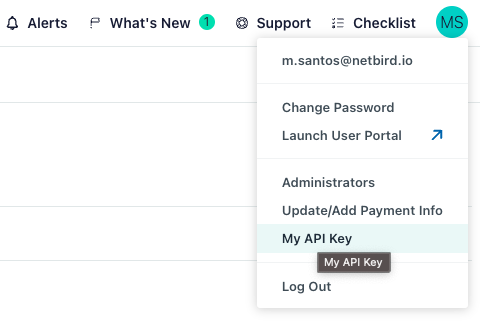

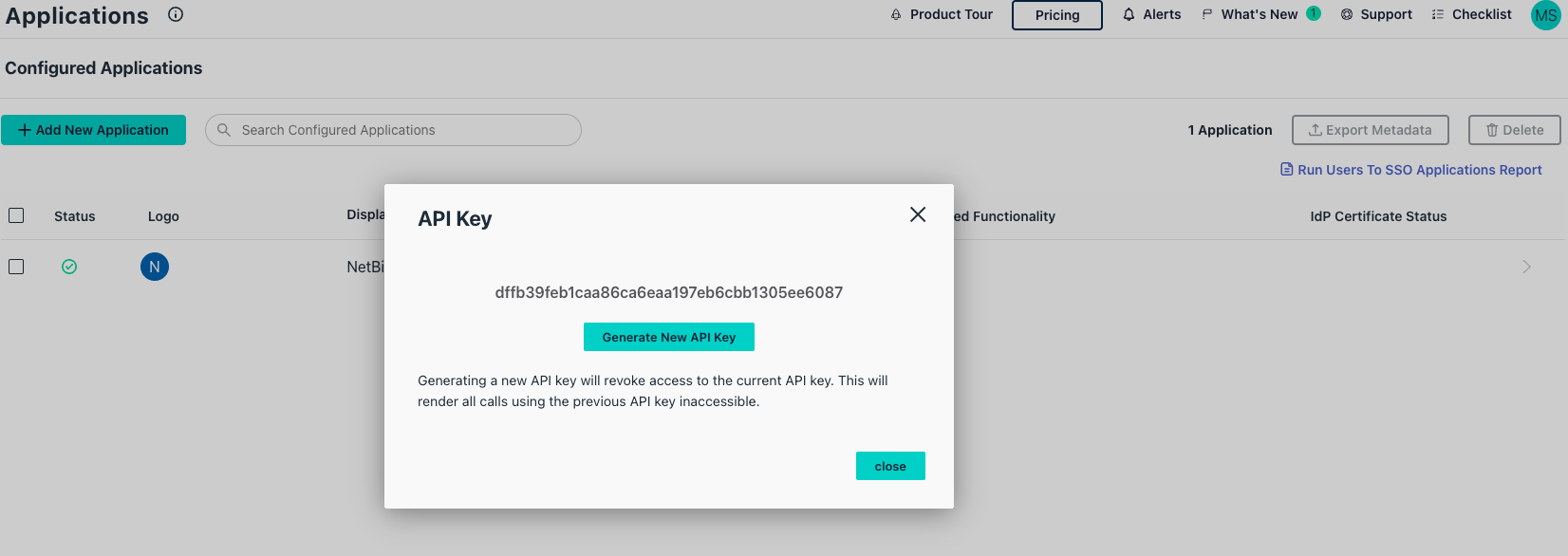

• Click on the account initials displayed at the top-right and select My API Key from the drop-down

• If there is no API key generated, click on Generate New API Key button
• Take note of your api token displayed

• Set properties in the setup.env file:

NETBIRD_DOMAIN="<YOUR_DOMAIN>"
NETBIRD_AUTH_OIDC_CONFIGURATION_ENDPOINT="https://oauth.id.jumpcloud.com/.well-known/openid-configuration"
NETBIRD_USE_AUTH0=false
NETBIRD_DASH_AUTH_USE_AUDIENCE=false
NETBIRD_AUTH_AUDIENCE="<CLIENT_ID>"
NETBIRD_AUTH_SUPPORTED_SCOPES="openid profile email offline_access"
NETBIRD_AUTH_CLIENT_ID="<CLIENT_ID>"
NETBIRD_AUTH_REDIRECT_URI="/auth"
NETBIRD_AUTH_SILENT_REDIRECT_URI="/silent-auth"
NETBIRD_TOKEN_SOURCE="idToken"

NETBIRD_AUTH_DEVICE_AUTH_PROVIDER="none"

NETBIRD_MGMT_IDP="jumpcloud"
NETBIRD_IDP_MGMT_EXTRA_API_TOKEN="<API_TOKEN>"

Step 4: Continue with the NetBird Self-hosting Guide

You've configured all required resources in JumpCloud. You can now continue with the NetBird Self-hosting Guide.
