PocketID

PocketID is a simplified identity management solution designed for self-hosted environments, offering a lightweight and easy-to-deploy option for authentication.

PocketID is secure and effective but makes some tradeoffs in terms of features. Notably, it does not allow scoping the access of API Tokens. Keep careful track of the token used by NetBird for management.

Add PocketID as a connector to the embedded IdP. This is the simplest approach and recommended for most deployments.

Prerequisites

  • NetBird self-hosted with embedded IdP enabled
  • PocketID instance with admin access

Step 1: Create OIDC Client in PocketID

  1. Navigate to PocketID console
  2. Click the Administration dropdown in the left-hand bar
  3. Select OIDC Clients

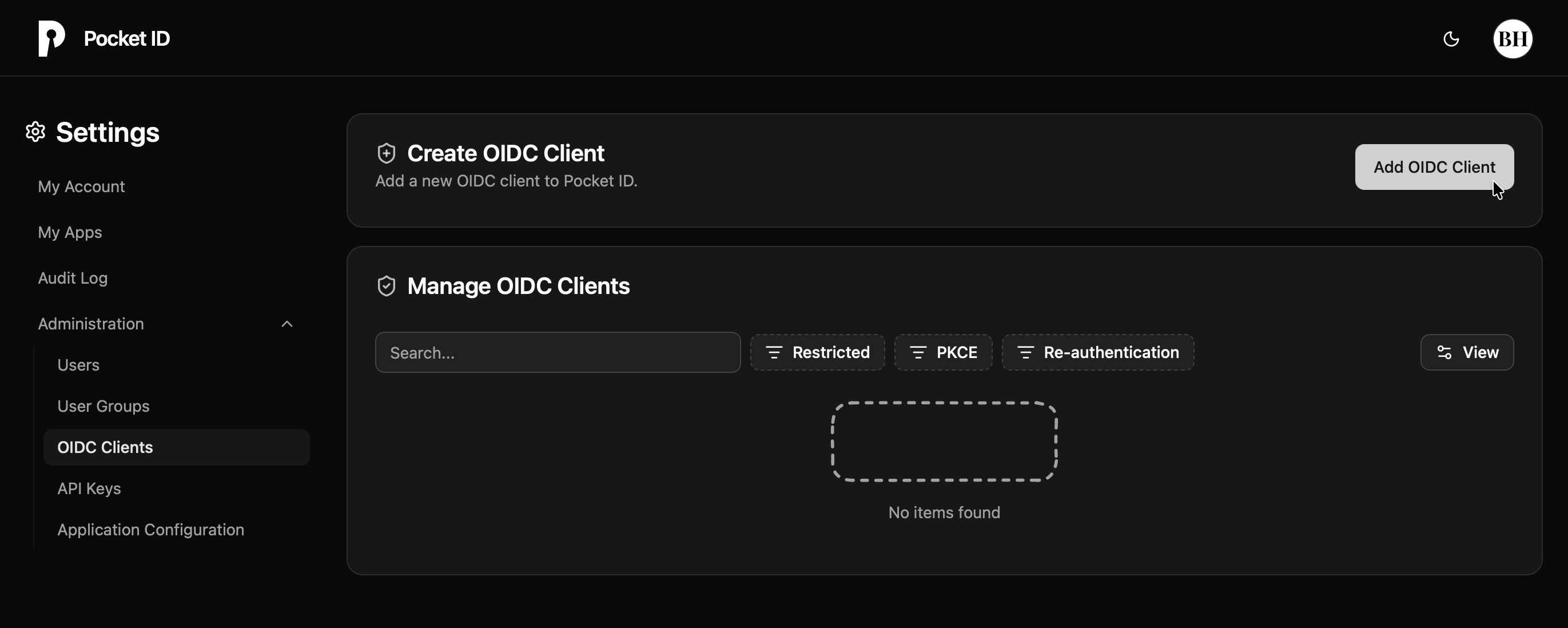

  4. Click Add to create a new client
  5. Fill in the form:
    • Name: NetBird
    • Public Client: Off (for confidential client)
    • PKCE: Off

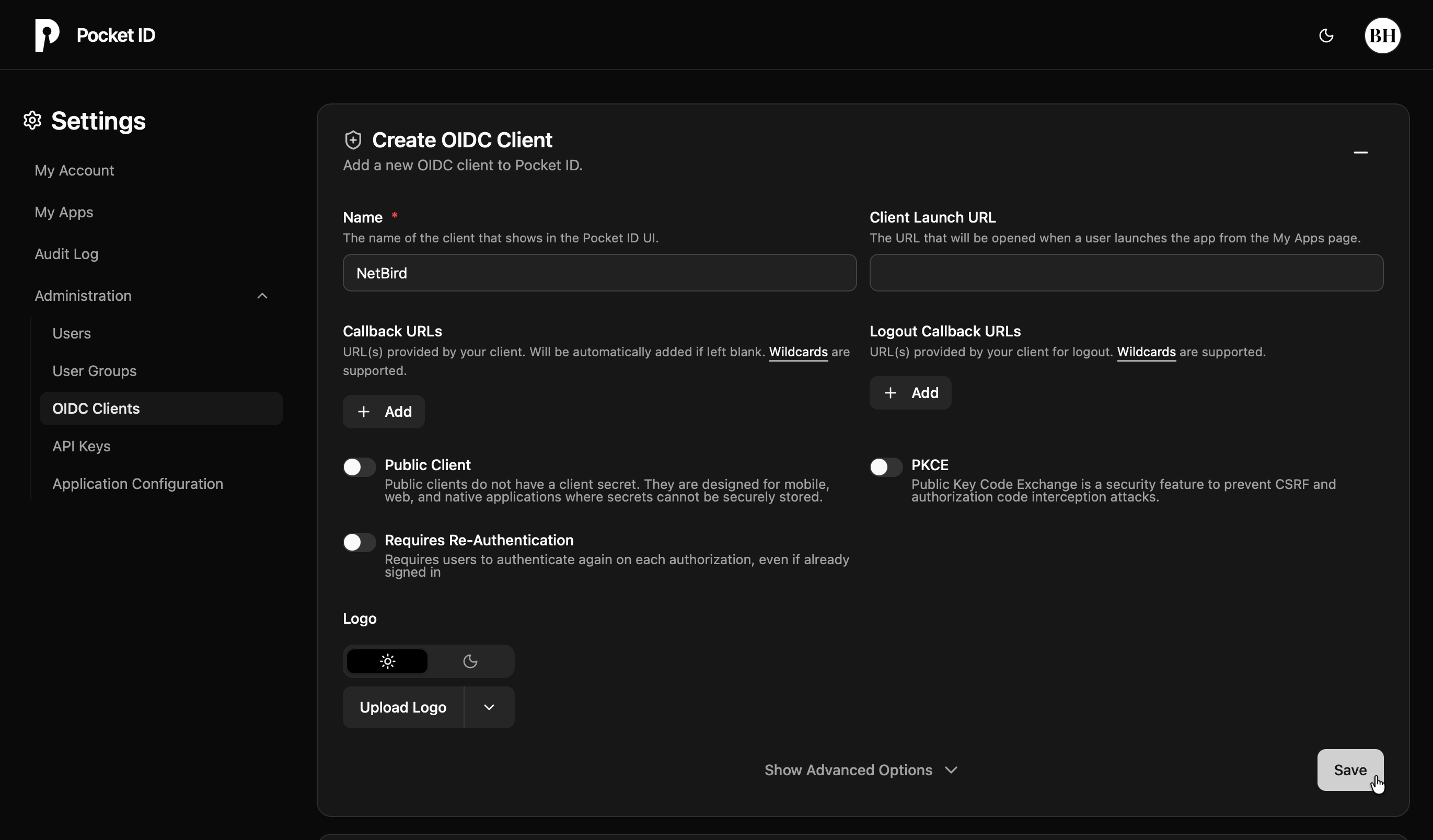

  6. Click Save

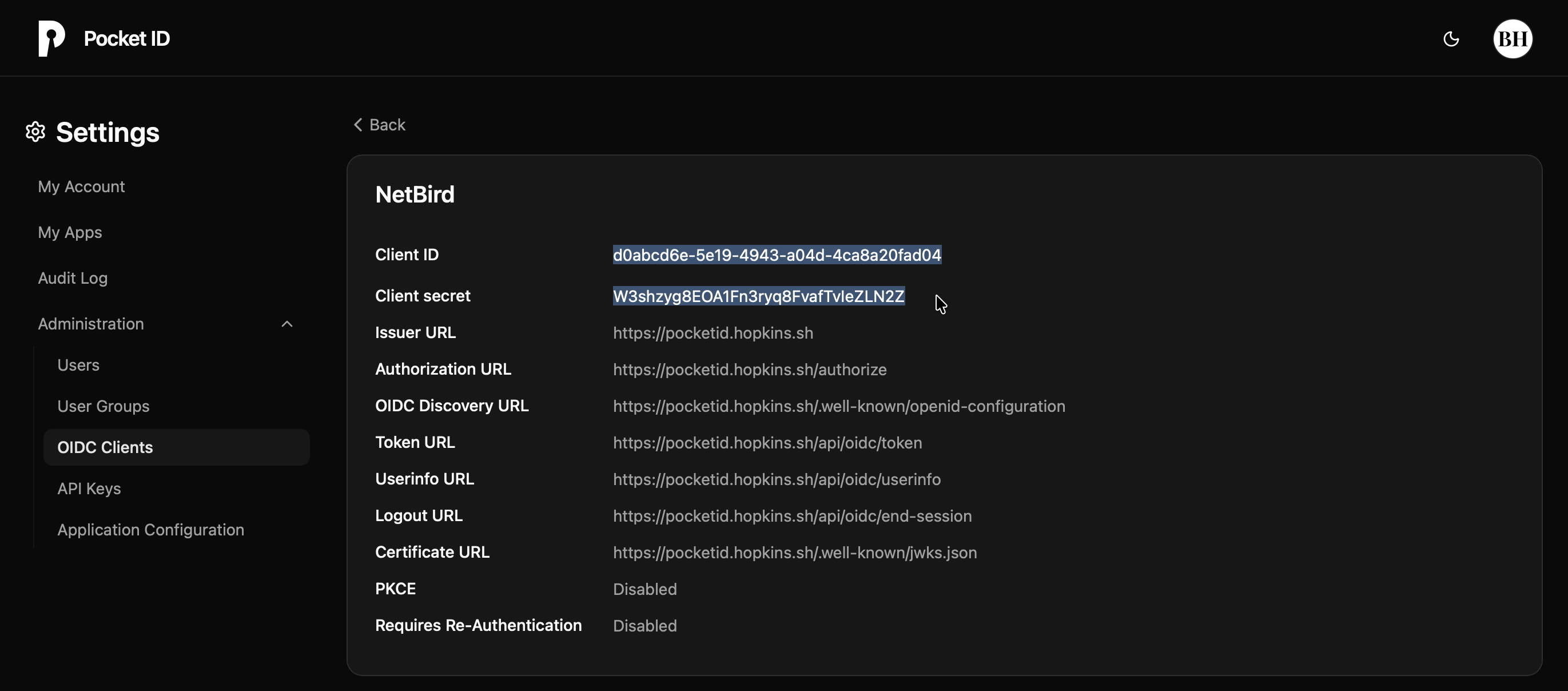

  7. Note the Client ID and Client Secret

Step 2: Add Connector in NetBird

  1. Log in to your NetBird Dashboard
  2. Navigate to Settings → Identity Providers
  3. Click Add Identity Provider
  4. Fill in the fields:
FieldValue
TypePocketID
NamePocketID (or your preferred display name)
Client IDFrom PocketID
Client SecretFrom PocketID
Issuerhttps://pocketid.example.com
  1. Click Save

Step 3: Configure Redirect URI

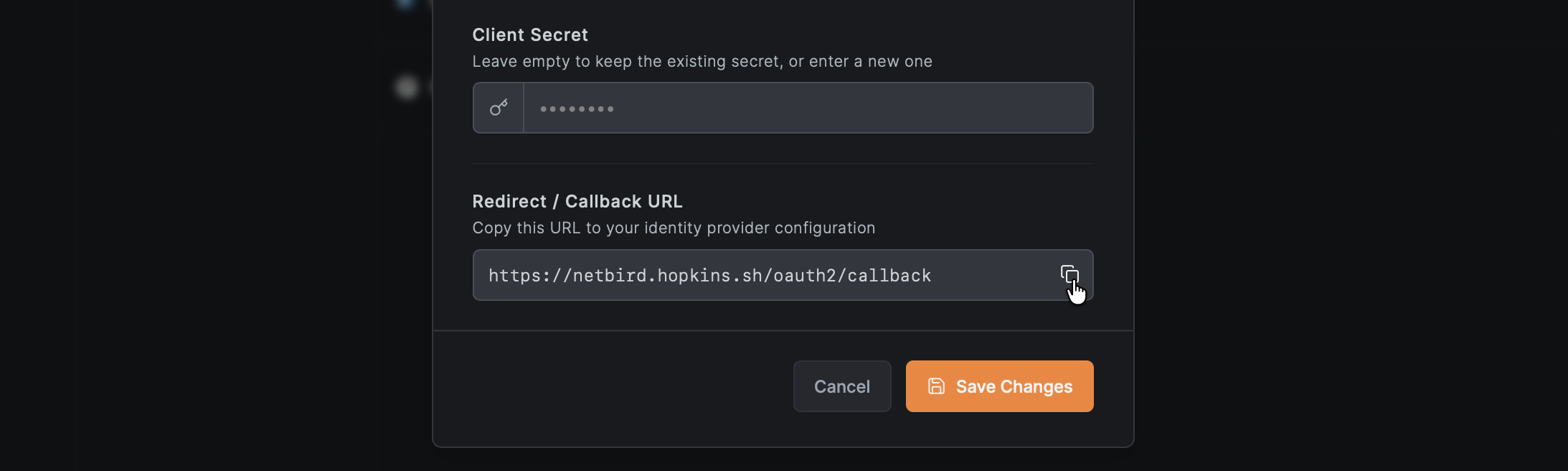

After saving, NetBird displays the Redirect URL. Copy this URL and add it to your PocketID client:

  1. Return to PocketID console → OIDC Clients
  2. Edit your NetBird client

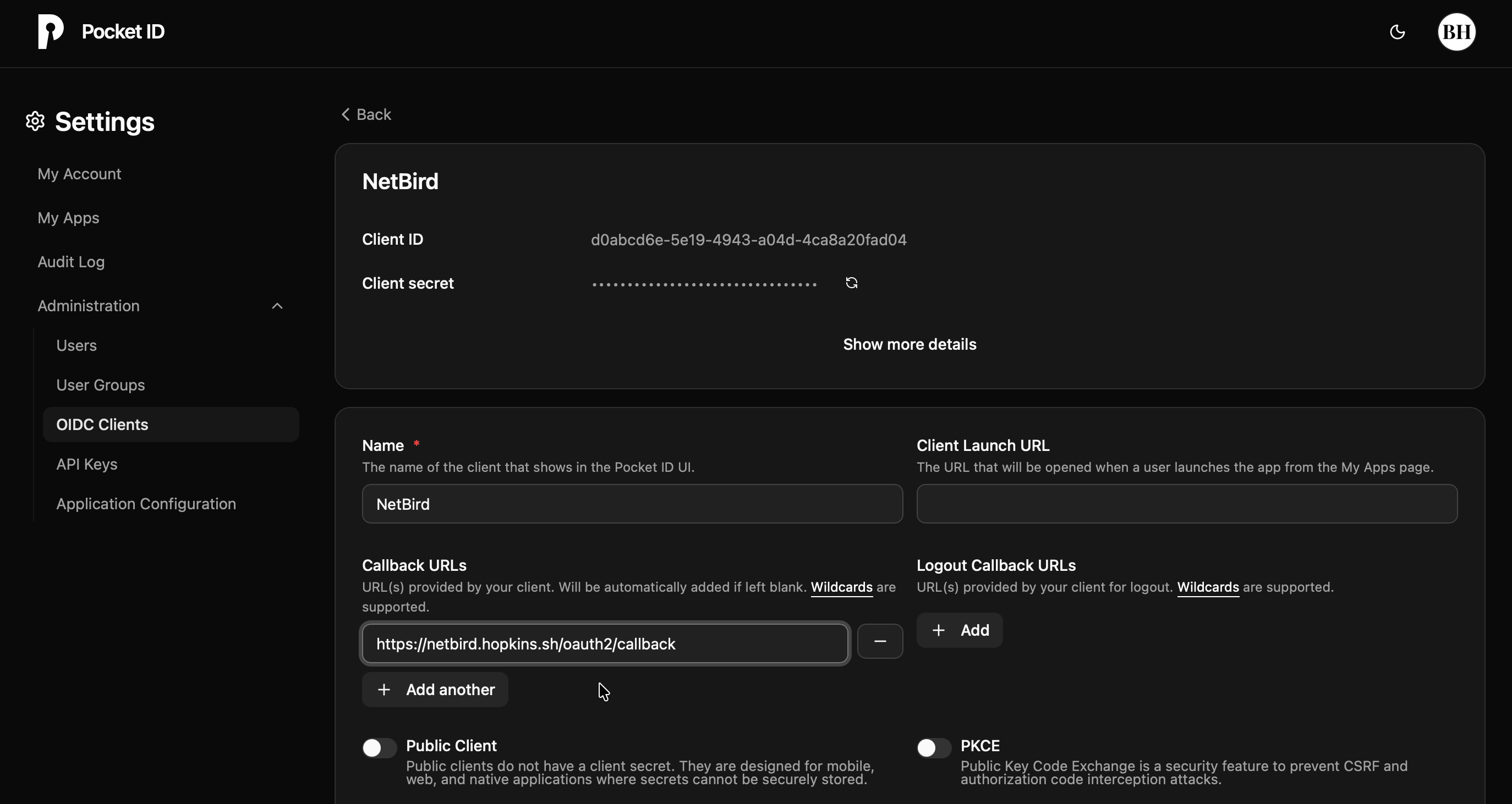

  3. Add the redirect URL to Callback URLs
  4. Click Save

Step 4: Test the Connection

  1. Log out of NetBird Dashboard
  2. On the login page, you should see a "PocketID" button
  3. Click it and authenticate with your PocketID credentials
  4. You should be redirected back to NetBird and logged in

Standalone Setup (Advanced)

Use PocketID as your primary identity provider instead of NetBird's embedded IdP. This option gives you full control over authentication and user management, is recommended for experienced PocketID administrators as it also requires additional setup and ongoing maintenance.

For most deployments, the embedded IdP is the simpler choice — it's built into NetBird, fully integrated, and requires minimal configuration to get started. For this implementation, go back up to the Connector Setup (Recommended) section above.

Prerequisites

  • PocketID instance running with SSL
  • Docker and Docker Compose for NetBird

Step 1: Create and Configure PocketID Application

  1. Navigate to PocketID console
  2. Click the Administration dropdown, then select OIDC Clients
  3. Fill in the form:
    • Name: NetBird
    • Client Launch URL: https://<domain>
    • Callback URLs:
      • http://localhost:53000
      • https://<domain>/auth
      • https://<domain>/silent-auth
    • Logout Callback URL: https://<domain>/
    • Public Client: On
    • PKCE: On
  4. Click Save

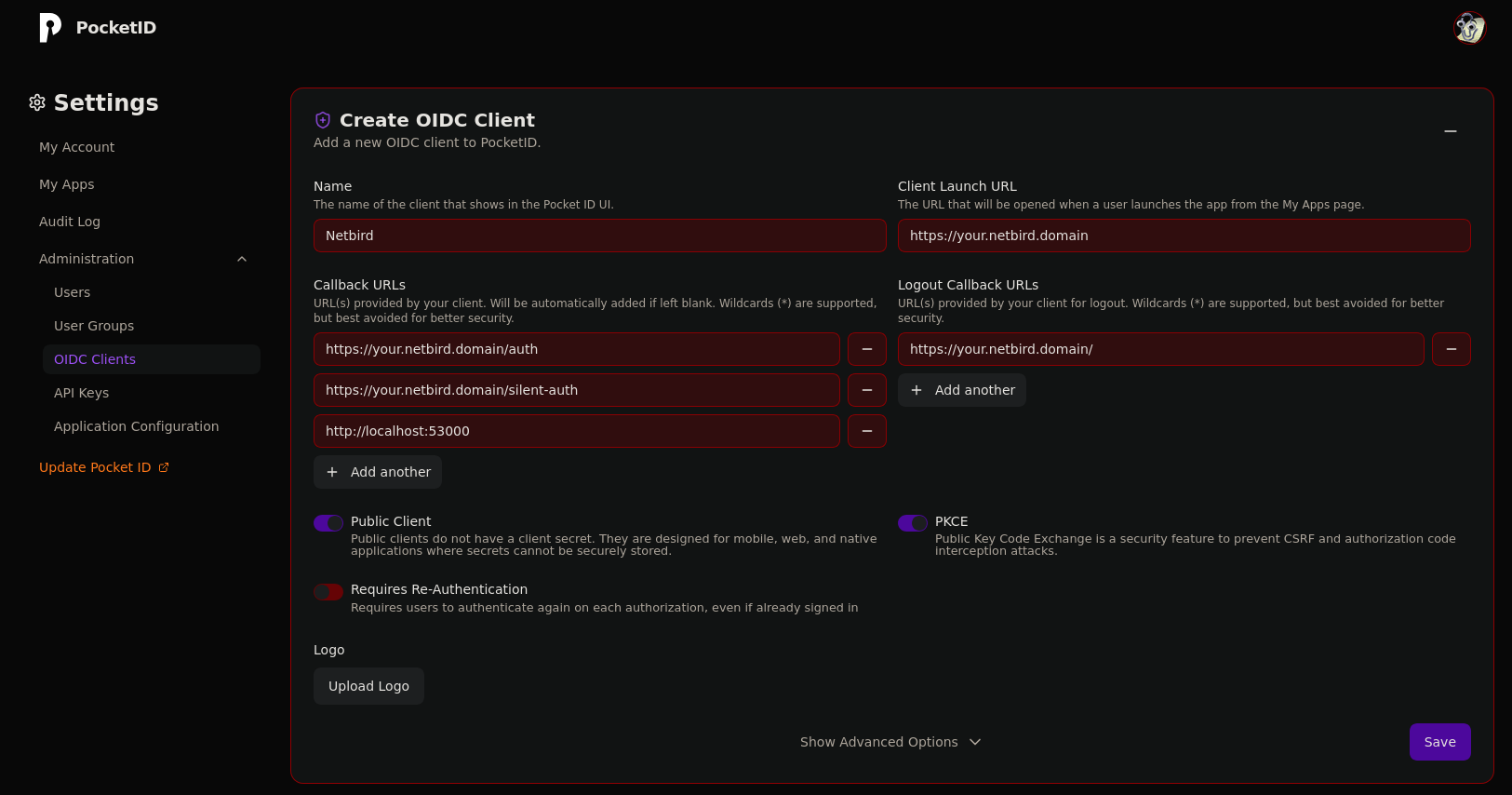

Create OIDC client

  1. Copy Client ID for later use

Step 2: Create API Token

  1. Click Administration dropdown, then select API Keys
  2. Click Add API Key
  3. Fill in:
    • Name: NetBird Management Token
    • Expires At: Pick a date in the future
    • Description: NetBird Management Token
  4. Click Save

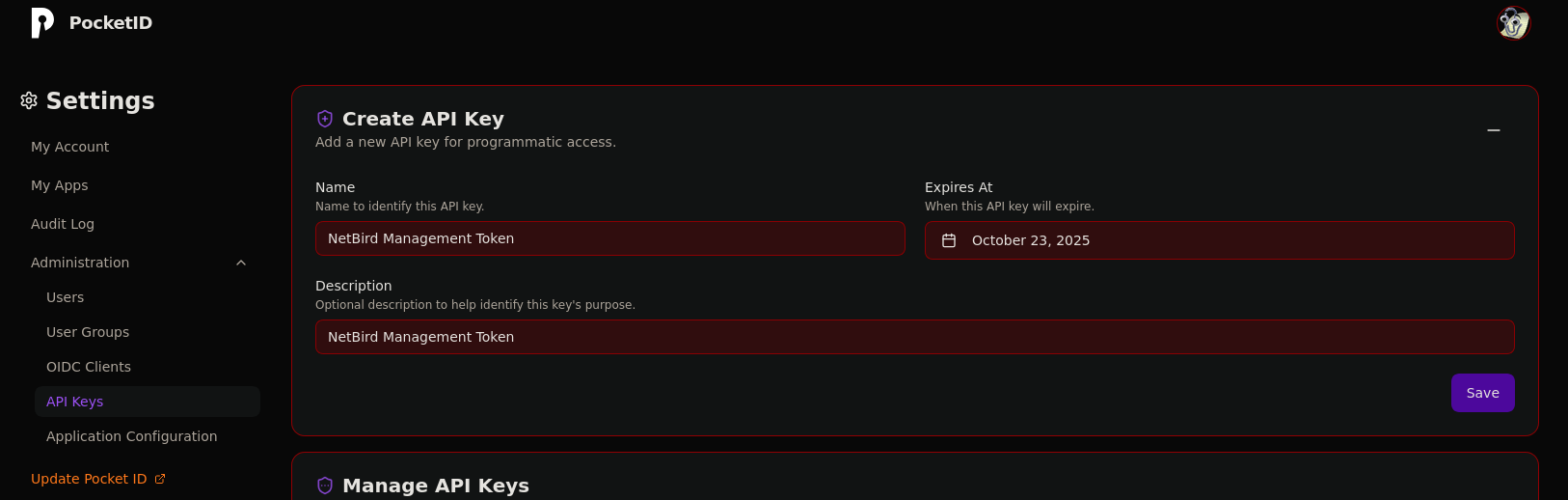

Create API token

  1. Copy API Key for later use

Step 3: Configure NetBird

Your authority OIDC configuration will be available at:

https://<YOUR_POCKETID_HOST_AND_PORT>/.well-known/openid-configuration

Double-check if the endpoint returns a JSON response by calling it from your browser.

Set properties in the setup.env file:

NETBIRD_AUTH_OIDC_CONFIGURATION_ENDPOINT="https://<YOUR_POCKETID_HOST_AND_PORT>/.well-known/openid-configuration"
NETBIRD_USE_AUTH0=false
NETBIRD_AUTH_CLIENT_ID="<CLIENT_ID>"
NETBIRD_AUTH_SUPPORTED_SCOPES="openid profile email groups"
NETBIRD_AUTH_AUDIENCE="<CLIENT_ID>"
NETBIRD_AUTH_REDIRECT_URI="/auth"
NETBIRD_AUTH_SILENT_REDIRECT_URI="/silent-auth"
NETBIRD_TOKEN_SOURCE="idToken"

NETBIRD_AUTH_DEVICE_AUTH_PROVIDER="none"
NETBIRD_AUTH_DEVICE_AUTH_CLIENT_ID="<CLIENT_ID>"
NETBIRD_AUTH_DEVICE_AUTH_AUDIENCE="<CLIENT_ID>"
NETBIRD_AUTH_DEVICE_AUTH_SCOPE="openid profile email groups"
NETBIRD_AUTH_DEVICE_AUTH_USE_ID_TOKEN=true

NETBIRD_MGMT_IDP="pocketid"
NETBIRD_IDP_MGMT_CLIENT_ID="netbird"
NETBIRD_IDP_MGMT_EXTRA_MANAGEMENT_ENDPOINT="https://<YOUR_POCKETID_HOST_AND_PORT>"
NETBIRD_IDP_MGMT_EXTRA_API_TOKEN="<API_TOKEN>"

Step 4: Continue with NetBird Setup

You've configured all required resources in PocketID. Continue with the NetBird Self-hosting Guide.

Troubleshooting

"Invalid redirect URI" error

  • Ensure all callback URLs are properly configured in PocketID
  • Include both HTTP (localhost) and HTTPS (domain) variants

API token not working

  • Verify the token hasn't expired
  • Ensure the token was created by an admin user

Device authorization not available

  • PocketID has limited device auth support
  • Set NETBIRD_AUTH_DEVICE_AUTH_PROVIDER="none" if issues persist
