Site-to-Site: Cloud Environments

This guide shows how to connect cloud VPCs across providers or bridge cloud and on-premise networks using Network Routes.

What You'll Achieve

After following this guide, workloads across different cloud providers (AWS, GCP, Azure) or between cloud and on-premise can communicate without exposing traffic to the public internet.

AWS VPC ────► Routing Peer ────► NetBird ────► Routing Peer ────► GCP VPC
(10.0.0.0/16)   (peer)                           (peer)         (10.1.0.0/16)

Multi-cloud Site-to-Site requires Network Routes because the Networks feature doesn't yet support this scenario.

Prerequisites

Example: Multi-Cloud Connectivity

Connect workloads across AWS and GCP:

  • AWS VPC: 10.0.0.0/16
  • GCP VPC: 10.1.0.0/16

Step 1: Create Setup Keys with Groups

Before deploying routing peers, create setup keys with auto-assigned groups:

  1. Go to Setup Keys in the NetBird dashboard
  2. Click Create Setup Key
  3. For AWS:
    • Name: "AWS Routing Peer"
    • Auto-assigned groups: Create and add aws-routing-peers
    • Click Create
  4. For GCP:
    • Name: "GCP Routing Peer"
    • Auto-assigned groups: Create and add gcp-routing-peers

You can also add groups to peers manually after setup. Go to Peers, select the peer, and add groups under Assigned Groups.

Step 2: Deploy Routing Peers in Each Cloud

AWS:

Launch an EC2 instance in your VPC with NetBird installed. Use the following user data:

#!/bin/bash
curl -fsSL https://pkgs.netbird.io/install.sh | sh
netbird up --setup-key YOUR_AWS_SETUP_KEY

GCP:

Launch a Compute Engine instance in your VPC:

#!/bin/bash
curl -fsSL https://pkgs.netbird.io/install.sh | sh
netbird up --setup-key YOUR_GCP_SETUP_KEY

Step 3: Create Network Routes

For AWS VPC:

  1. Go to Network Routes
  2. Click Add Route
  3. Network range: 10.0.0.0/16
  4. Routing Peer: Select your AWS instance (or use "aws-routing-peers" Peer Group)

Create route for AWS VPC

  1. Distribution Groups: "gcp-routing-peers"
  2. Access Control Groups: "aws-routing-peers" (required for route-level policies—this group becomes the destination in access policies; without it, policies targeting this route won't apply)

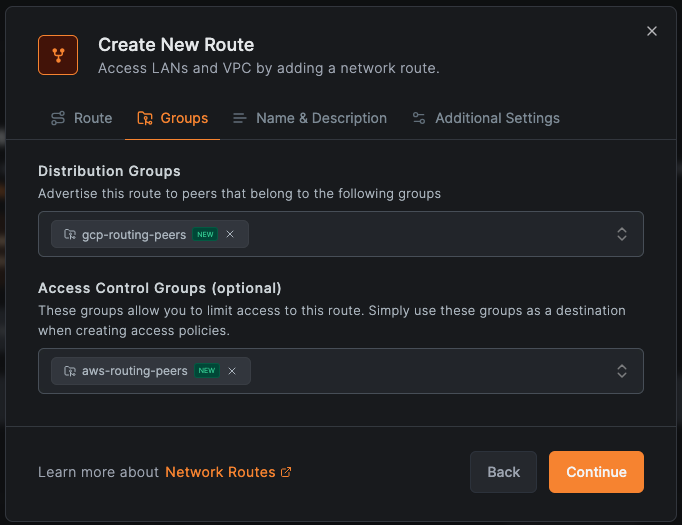

AWS route distribution and access control groups

  1. Network Identifier: aws-vpc
  2. Enable Masquerade (in Additional Settings)
  3. Click Add Route

Enable masquerade in additional settings

For GCP VPC:

  1. Click Add Route
  2. Network range: 10.1.0.0/16
  3. Routing Peer: Select your GCP instance (or use "gcp-routing-peers" Peer Group)

Create route for GCP VPC

  1. Distribution Groups: "aws-routing-peers"
  2. Access Control Groups: "gcp-routing-peers" (required for route-level policies—this group becomes the destination in access policies; without it, policies targeting this route won't apply)

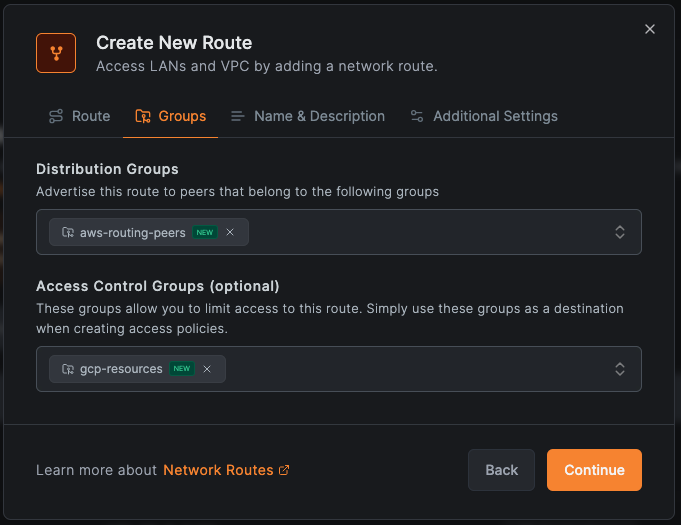

GCP route distribution and access control groups

  1. Network Identifier: gcp-vpc
  2. Enable Masquerade (in Additional Settings)
  3. Click Add Route

Step 4: Create Access Policies

Create two policies allowing the routing peers to communicate in both directions:

  1. Go to Access Control > Policies
  2. Create policies between the routing peer groups:
Source: aws-routing-peers → Destination: gcp-routing-peers (All)
Source: gcp-routing-peers → Destination: aws-routing-peers (All)

For route-level access control (if Access Control Groups configured), you can restrict by protocol and port:

Source: aws-routing-peers → Destination: gcp-routing-peers (specific protocols)
Source: gcp-routing-peers → Destination: aws-routing-peers (specific protocols)

AWS to GCP policy with TCP port 443

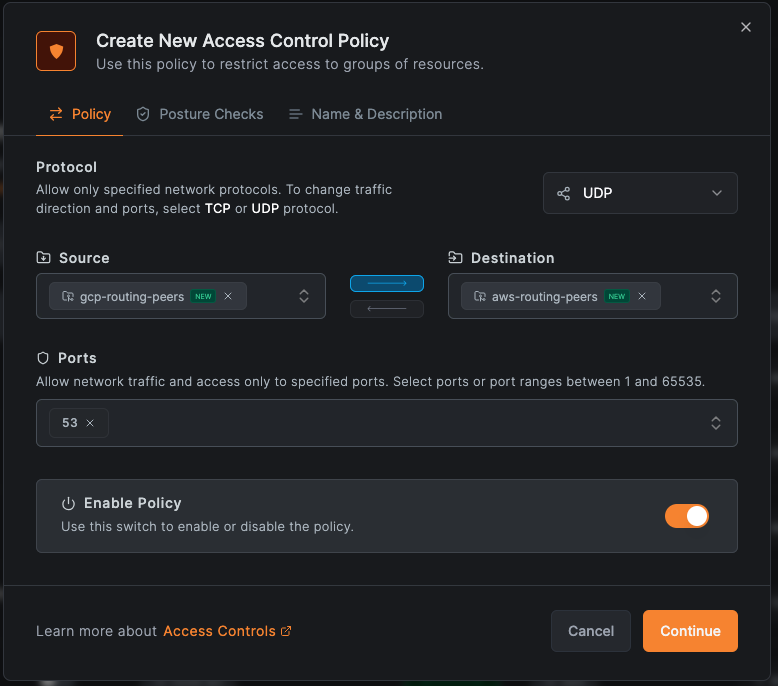

GCP to AWS policy with UDP port 53

Step 5: Configure VPC Routing

AWS VPC:

Add a route in your route table:

  • Destination: 10.1.0.0/16 (GCP CIDR)
  • Target: Your NetBird routing peer instance (ENI)

GCP VPC:

Add a custom route:

  • Destination: 10.0.0.0/16 (AWS CIDR)
  • Next hop: Your NetBird routing peer instance

Enable IP forwarding on routing peer instances in both clouds.

Step 6: Test Connectivity

From an AWS instance:

ping 10.1.0.100  # GCP instance

From a GCP instance:

ping 10.0.0.100  # AWS instance

Cloud-Specific Considerations

AWS

  • Security groups must allow traffic from the NetBird routing peer
  • Enable source/destination check disabled on the routing peer instance
  • Consider using an Auto Scaling group for the routing peer with a static ENI

GCP

  • Firewall rules must allow traffic from the routing peer's internal IP
  • Enable IP forwarding on the routing peer instance
  • Use managed instance groups for high availability

Azure

  • Network security groups must allow traffic from the routing peer
  • Enable IP forwarding on the routing peer NIC
  • Consider using a Virtual Machine Scale Set for HA

Secure Workload Migration

Use Site-to-Site connectivity for migrating workloads between environments:

Example: Migrating from On-Premise to Cloud

  1. Before migration: Application and database both on-premise
  2. During migration: Application in cloud, database still on-premise (use VPN-to-Site via Networks)
  3. Cutover: Switch traffic to the cloud application
  4. After migration: Once database is also migrated, update connection strings and remove NetBird if no longer needed

Best Practices

Security

  • Use dedicated setup keys per environment (dev, staging, production)
  • Restrict access policies to specific ports and protocols
  • Enable activity logging for compliance

High Availability

  • Deploy multiple routing peers and configure failover
  • Monitor routing peer health with your existing tools
  • Use cloud-native load balancing where appropriate

Performance

  • Place routing peers close to the resources they serve
  • Use direct peering where possible (NetBird will automatically optimize paths)
  • Monitor latency and throughput between environments

Troubleshooting

Multi-cloud connectivity issues:

  1. Confirm both routing peers are connected to NetBird
  2. Check VPC routing tables have correct entries
  3. Verify security groups/firewall rules allow traffic

High latency:

  1. Check routing peer placement and network connectivity
  2. Verify traffic is using direct peer-to-peer connections (not relays)
  3. Review cloud network configuration for bottlenecks

Advanced Configuration

For masquerade options, ACL Groups, and detailed troubleshooting, see Advanced Configuration.
