CrowdSec IP Reputation

CrowdSec is an open-source security engine that combines local detection with a crowdsourced threat feed. Agents installed across the CrowdSec community share decisions about malicious IPs, and that shared intelligence is redistributed as blocklists that any CrowdSec instance can consume. NetBird Proxy integrates with CrowdSec to check every incoming client IP against a local decision cache and block connections from flagged addresses before they reach your services. For background on the wider CrowdSec platform, see the CrowdSec documentation.

This page covers how the integration works and how to operate it. For full setup instructions, see Step 7: Enable CrowdSec IP reputation in the Enable Reverse Proxy guide.

How it works

The integration has three components:

1. CrowdSec LAPI container. A local CrowdSec instance (pinned to v1.7.7 in the quickstart) runs alongside your NetBird deployment, syncs community blocklists, and persists decisions to a dedicated Docker volume.
2. Stream bouncer. The proxy embeds a stream bouncer that pulls decisions from the LAPI into an in-memory cache. The bouncer starts automatically when the first service enables CrowdSec and stops when the last one disables it, so there is no ongoing cost when the feature is unused.
3. Per-service enforcement. Each reverse proxy service can be set to off, enforce, or observe. The proxy consults the local cache on every incoming connection, so checks are fast and do not add a network round trip.

The proxy advertises a supports_crowdsec capability to the management plane, which is how the dashboard decides whether to show the CrowdSec option in the Access Control tab. If CrowdSec is not configured on the proxy cluster, the option is hidden.

Configuration is provided to the proxy via --crowdsec-api-url / --crowdsec-api-key command-line flags or the equivalent NB_PROXY_CROWDSEC_API_URL / NB_PROXY_CROWDSEC_API_KEY environment variables. The setup guide writes these to proxy.env automatically.

Enforcement modes

CrowdSec decisions include several remediation types (ban, captcha, throttle). The proxy treats every type as a connection denial in enforce mode: there is no captcha challenge or rate limiting at the proxy layer. The specific decision type is recorded in the access logs as crowdsec_ban, crowdsec_captcha, or crowdsec_throttle so you can distinguish between them when reviewing traffic.

Reviewing observe-mode verdicts

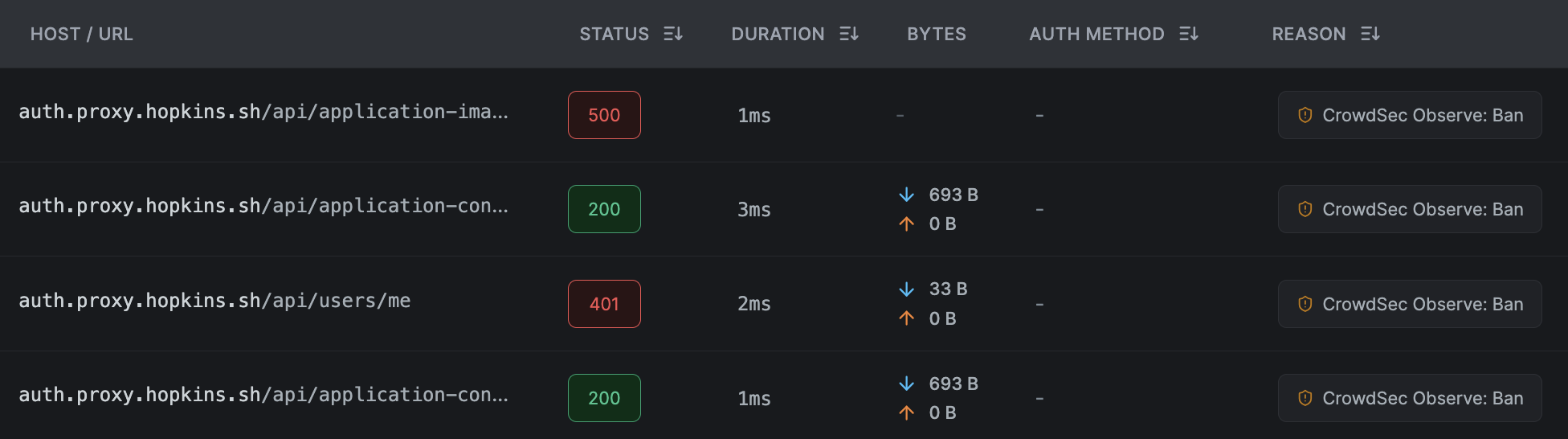

Observe-mode verdicts are recorded in the NetBird proxy access logs, not in the CrowdSec Console. When a service is in observe mode and CrowdSec flags an IP, the connection is allowed but the verdict is attached to the log entry as metadata, while the deny_reason field stays empty. In the dashboard's reverse proxy event log, these entries render with an observe-mode badge on the reason cell and show the decision type (ban, captcha, throttle, unavailable) so you can audit what would have been blocked before switching the service to enforce. The CrowdSec Console shows the aggregate view of community decisions and scenarios but does not know which of your proxy requests the bouncer was consulted on.

Access restrictions are evaluated in a fixed order: CIDR, then country, then CrowdSec. A denial at any earlier layer short-circuits the rest, and CrowdSec can never relax a CIDR or country decision. See the restriction evaluation order reference for the full precedence table and worked examples.

Enroll with the CrowdSec Console (optional)

Enrolling your LAPI with the CrowdSec Console lets you view blocked IPs, manage scenarios, and opt into premium blocklists from a web UI. The quickstart script prompts for an enrollment key and registers it automatically. To enroll an existing deployment:

docker compose exec crowdsec cscli console enroll <your-enrollment-key>
docker compose restart crowdsec

Enrollment is optional. The bouncer continues to sync the community blocklist without it.

Configuring services

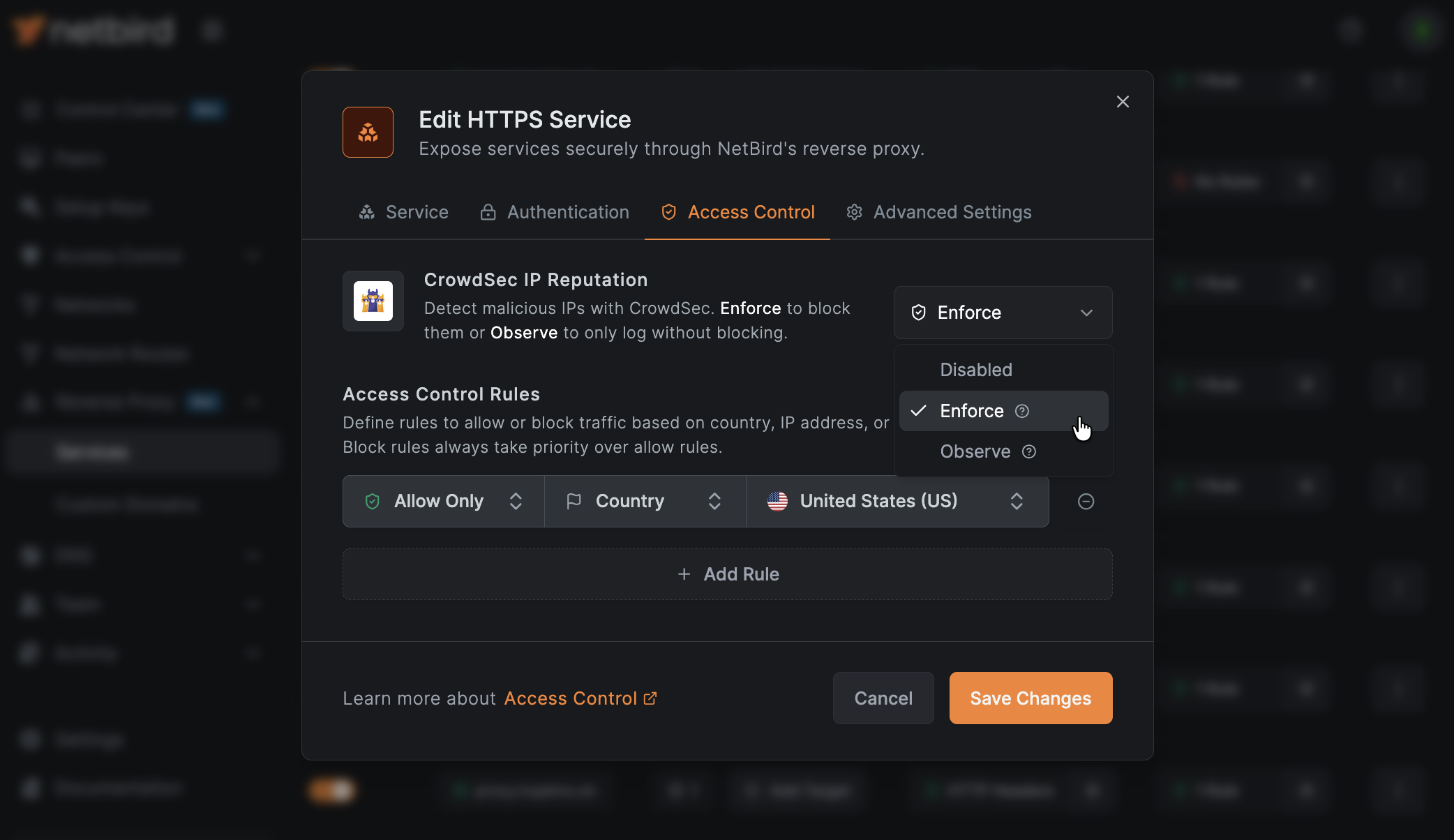

Once CrowdSec is enabled on the proxy, the CrowdSec IP Reputation dropdown appears in the Access Control tab of each reverse proxy service. Set it to Enforce or Observe per service. See reverse proxy authentication for configuration steps and access logs for the verdict fields that appear in event logs.

Testing the integration

After enabling CrowdSec, confirm that the proxy bouncer connected to the LAPI and completed its initial decision sync:

docker compose logs proxy | grep -i crowdsec

A healthy startup looks like this:

netbird-proxy  | INFO proxy/internal/crowdsec/bouncer.go:70: connecting to CrowdSec LAPI at http://crowdsec:8080
netbird-proxy  | INFO proxy/internal/crowdsec/registry.go:94: CrowdSec bouncer started
netbird-proxy  | INFO proxy/internal/crowdsec/bouncer.go:187: CrowdSec bouncer synced initial decisions

To verify end-to-end enforcement without waiting for a real malicious IP to hit the cache, add a short-lived decision for your own IP and then attempt a connection:

docker compose exec crowdsec cscli decisions add --ip <your-public-ip> --duration 5m --reason "netbird test"

With a service set to enforce, the connection from <your-ip> should be rejected and the event log should show a crowdsec_ban deny reason. With a service set to observe, the connection succeeds but the verdict appears on the event entry with an observe-mode badge. The decision expires automatically after 5 minutes, or you can remove it earlier with cscli decisions delete --ip <your-ip>.
