Okta with NetBird Self-Hosted

This guide is a part of the NetBird Self-hosting Guide and explains how to integrate self-hosted NetBird with Okta.

If you prefer to have full control over authentication and authorization of your NetBird network, there are good self-hosted alternatives to the managed Okta service like Keycloak.

Before you start creating and configuring an Okta application, ensure that you have an Okta workforce identity cloud account. If you don't have one, sign up for a free account at https://www.okta.com/free-trial/.

Step 1. Create and configure Okta single-page application

In this step, we will create and configure Netbird single-page application in okta.

  • Navigate to Okta Admin Dashboard
  • Click Applications in the left menu and then click on Applications
  • Click Create App Integration

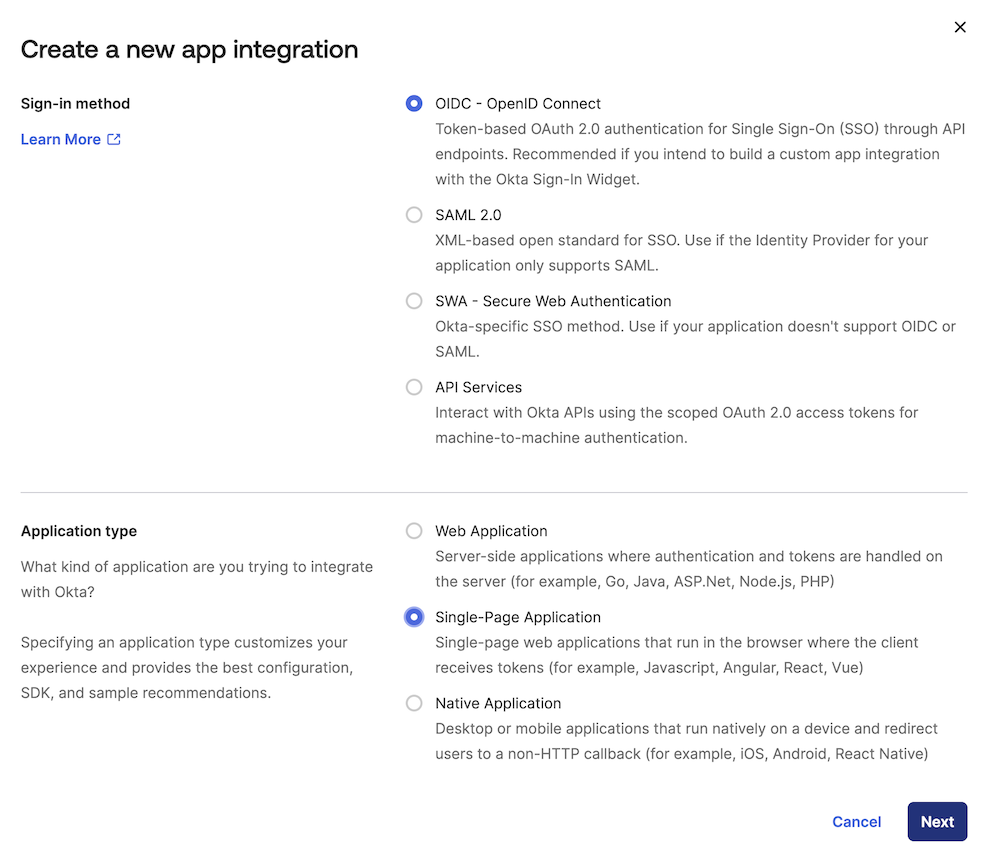

  • Fill in the form with the following values and click Next
    • Sign-in method: OIDC - OpenID Connect
    • Application type: Single-Page Application

high-level-dia

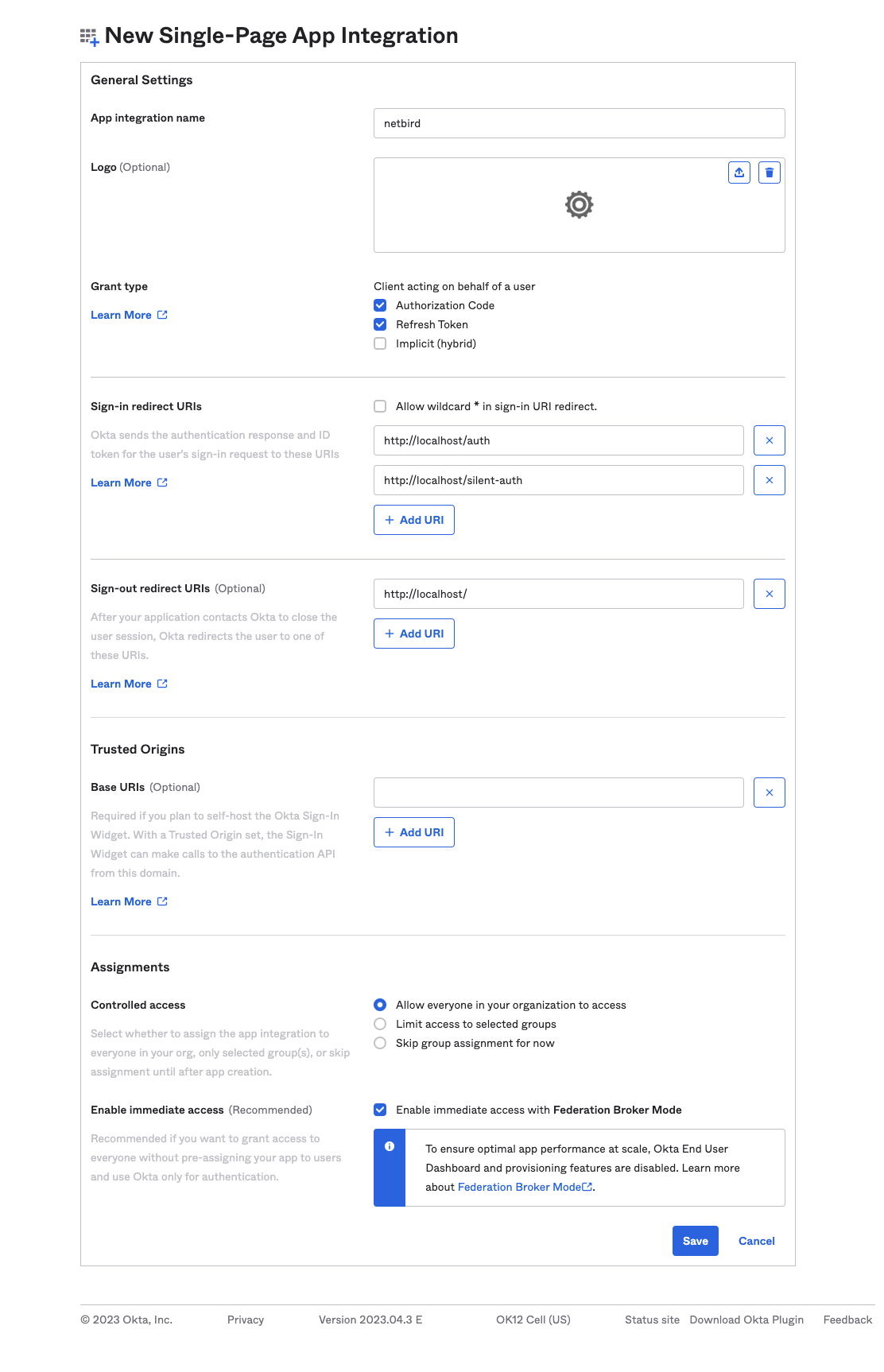

  • Fill in the form with the following values and click Save
    • App integration name: Netbird
    • Grant type: Authorization Code and Refresh Token
    • Sign-in redirect URIs: https://<yournetbirddomain.com>/auth, https://<yournetbirddomain.com>/silent-auth and http://localhost:53000
    • Sign-out redirect URIs: https://<yournetbirddomain.com>/
  • Click Save

high-level-dia

  • Navigate to Okta Admin Dashboard
  • Click Applications in the left menu and then click on Applications
  • Select Netbird application on the list and take a note of the Client ID, we will use it later
  • Click on Sign On tab on top menu

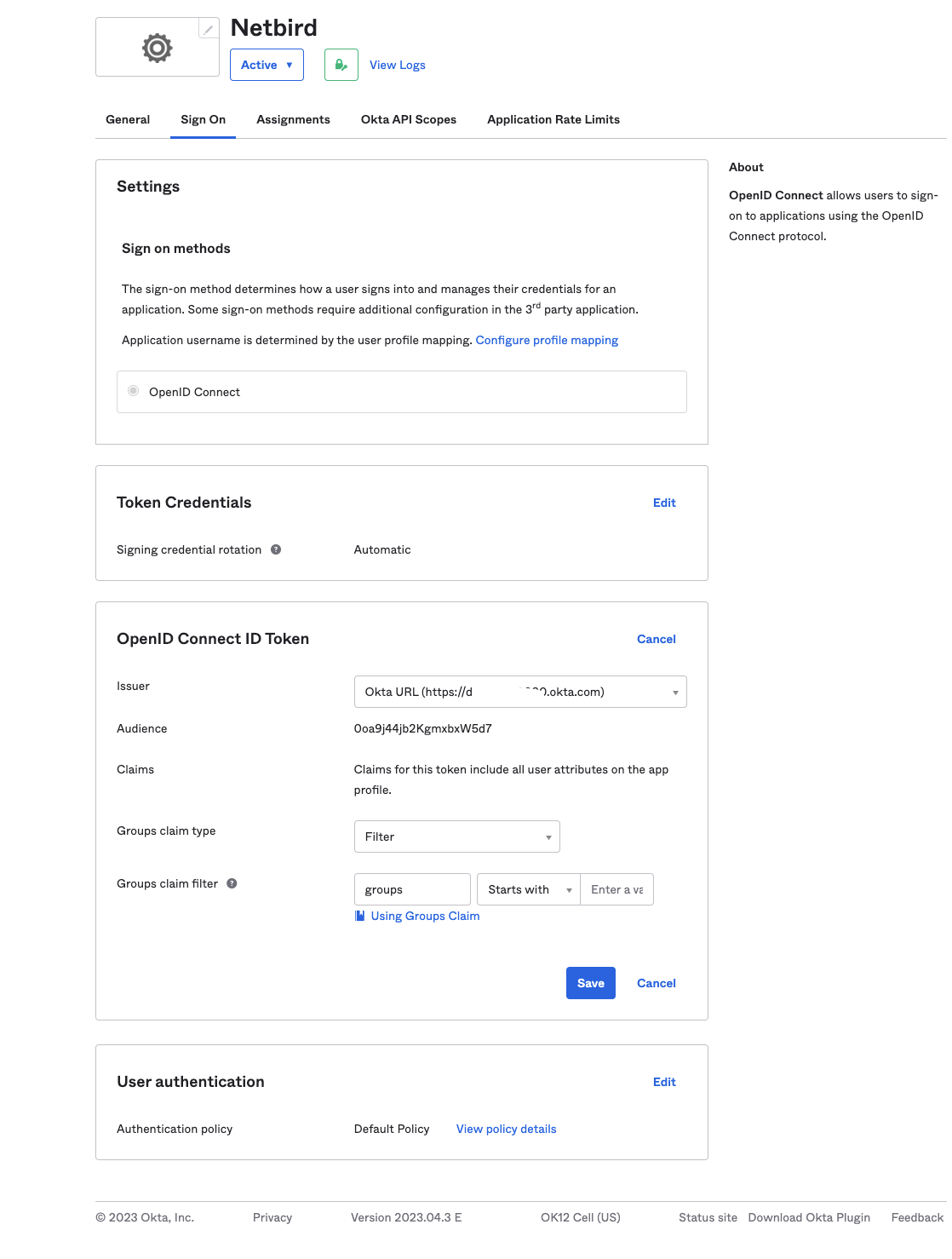

  • Under OpenID Connect ID Token section, click Edit and update Issuer to use the Okta URL
  • Click Save

high-level-dia

Step 2. Create and configure Okta native application

In this step, we will create and configure Netbird native application in okta.

  • Navigate to Okta Admin Dashboard
  • Click Applications in the left menu and then click on Applications
  • Click Create App Integration

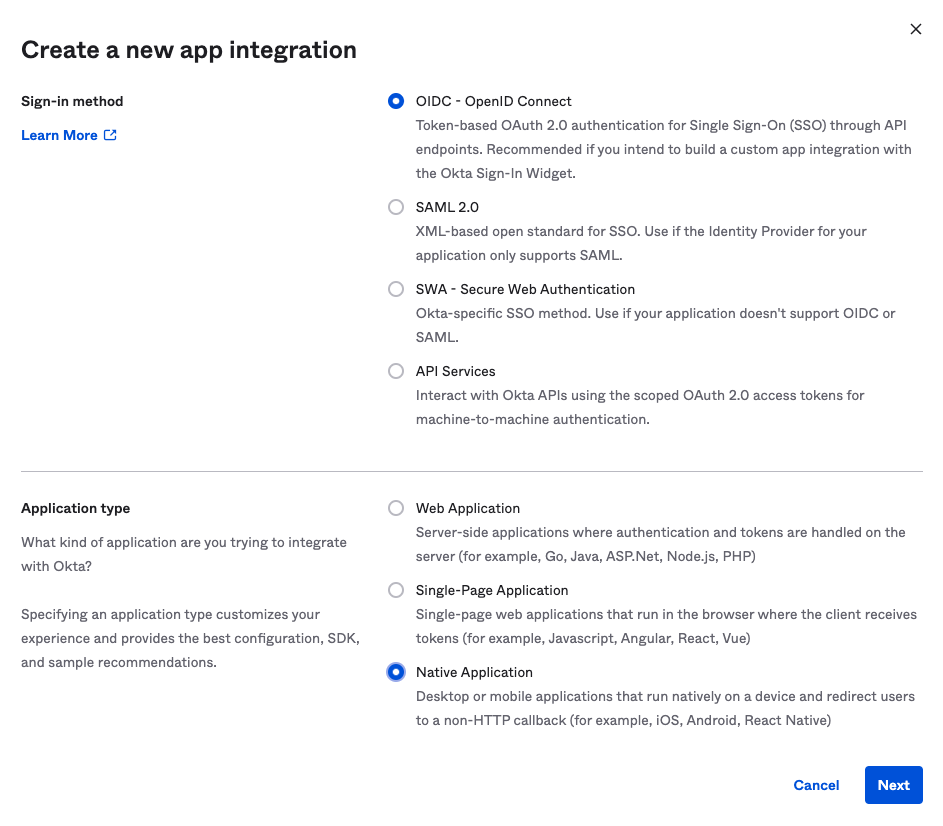

  • Fill in the form with the following values and click Next
    • Sign-in method: OIDC - OpenID Connect
    • Application type: Native Application

high-level-dia

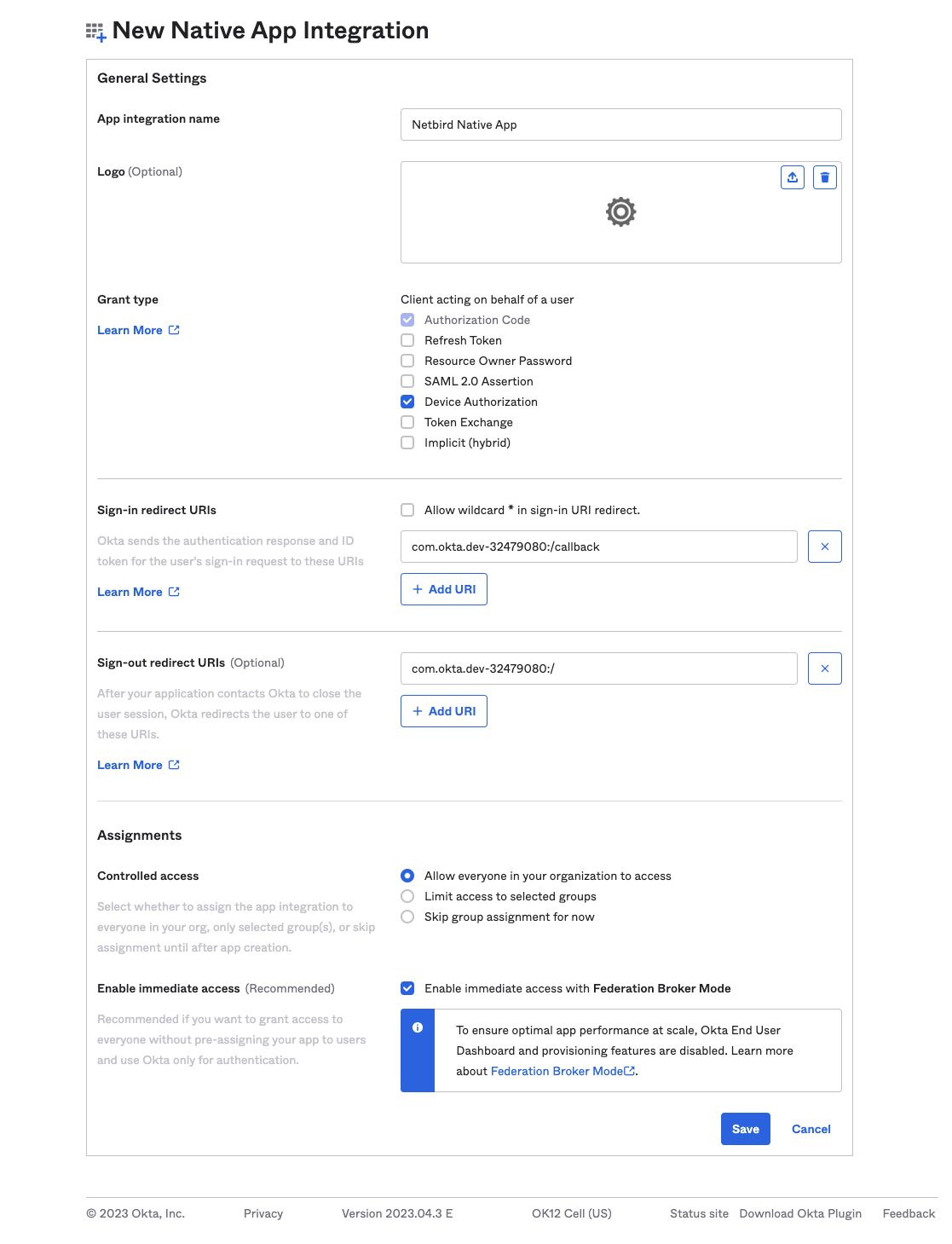

  • Fill in the form with the following values and click Save
    • App integration name: Netbird Native App
    • Grant type: Device Authorization
  • Click Save

high-level-dia

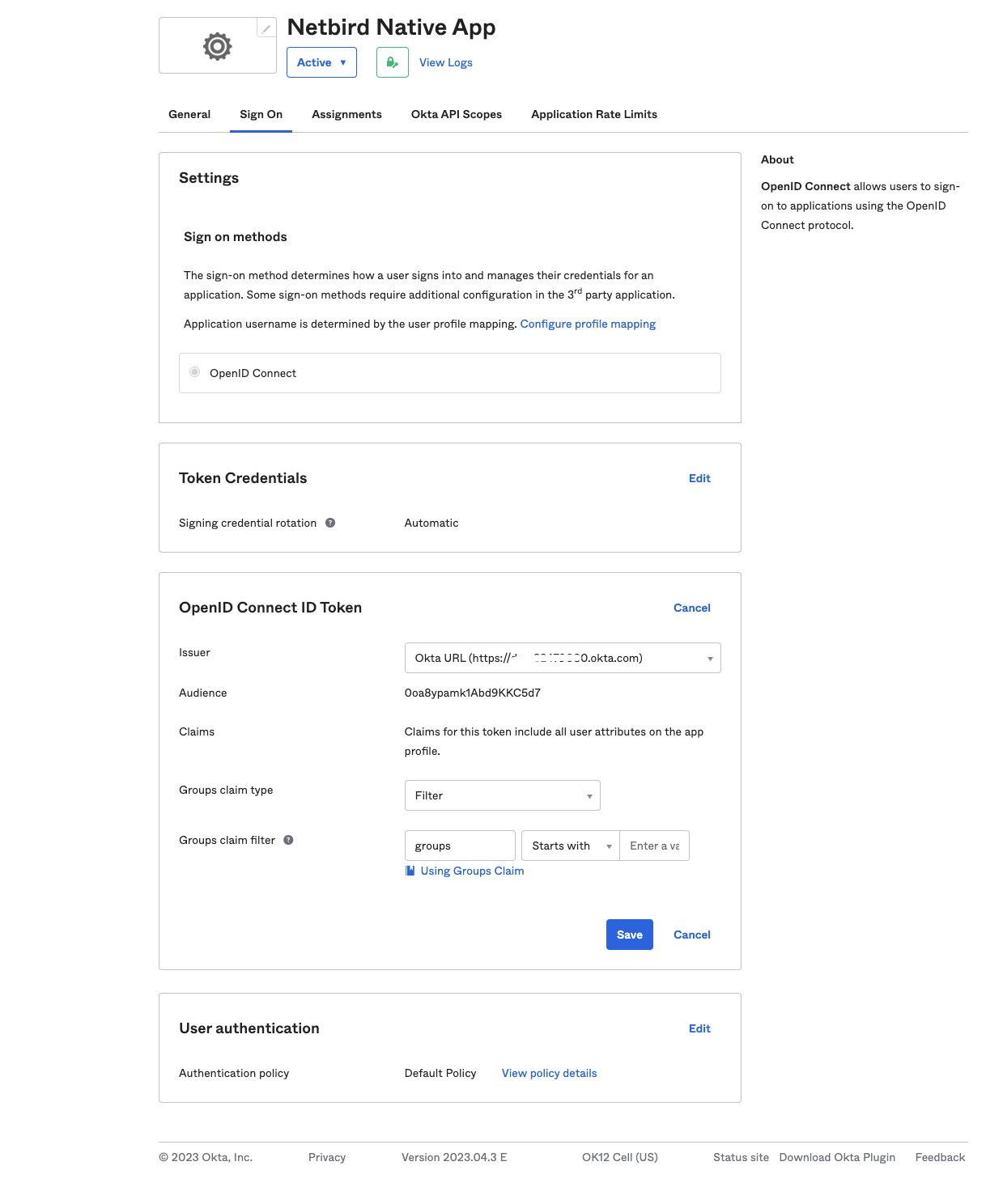

  • Navigate to Okta Admin Dashboard
  • Click Applications in the left menu and then click on Applications
  • Select Netbird Native App application on the list and take a note of the Client ID, we will use it later
  • Click on Sign On tab on top menu
  • Under OpenID Connect ID Token section, click Edit and update Issuer to use the Okta URL
  • Click Save

high-level-dia

Step 3. Generate api token

In this step, we will generate netbird api token in okta for authorizing calls to user api.

  • Navigate to Okta Admin Dashboard
  • Click Security in the left menu and then click on API
  • Click on Tokens tab on top menu

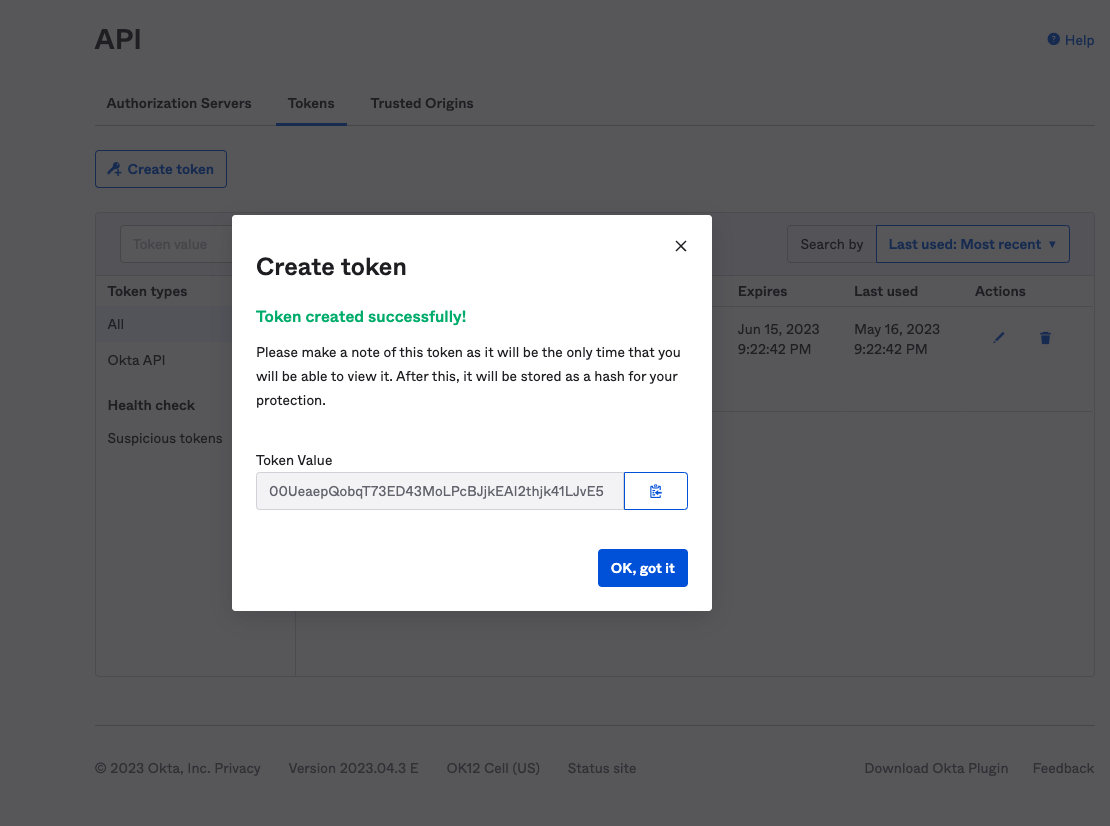

  • Click Create token
  • Fill in the form with the following values and click Create token
    • Name: Netbird
  • Take note of token value and click OK, got it

high-level-dia

Your authority OIDC configuration will be available under:

https://<YOUR_OKTA_ORGANIZATION_URL>/.well-known/openid-configuration

Double-check if the endpoint returns a JSON response by calling it from your browser.

  • Set properties in the setup.env file:
NETBIRD_DOMAIN="<YOUR_DOMAIN>"
NETBIRD_AUTH_OIDC_CONFIGURATION_ENDPOINT="https://<YOUR_OKTA_ORGANIZATION_URL>/.well-known/openid-configuration"
NETBIRD_USE_AUTH0=false
NETBIRD_AUTH_AUDIENCE="<<NETBIRD_CLIENT_ID>>"
NETBIRD_AUTH_CLIENT_ID="<NETBIRD_CLIENT_ID>"
NETBIRD_AUTH_SUPPORTED_SCOPES="openid profile email"
NETBIRD_AUTH_REDIRECT_URI="/auth"
NETBIRD_AUTH_SILENT_REDIRECT_URI="/silent-auth"
NETBIRD_TOKEN_SOURCE="idToken"

NETBIRD_AUTH_DEVICE_AUTH_PROVIDER="hosted"
NETBIRD_AUTH_DEVICE_AUTH_CLIENT_ID="<NETBIRD_NATIVE_CLIENT_ID>>"
NETBIRD_AUTH_DEVICE_AUTH_AUDIENCE="<NETBIRD_NATIVE_CLIENT_ID>"
NETBIRD_AUTH_DEVICE_AUTH_SCOPE="openid email"
NETBIRD_AUTH_DEVICE_AUTH_USE_ID_TOKEN=true

NETBIRD_MGMT_IDP="okta"
NETBIRD_IDP_MGMT_EXTRA_API_TOKEN="<api_token>"

Step 4: Continue with the NetBird Self-hosting Guide

You've configured all required resources in Okta. You can now continue with the NetBird Self-hosting Guide.
