Accessing restricted domain resources

This guide shows how to access restricted websites or services using NetBird Networks with domain resources. Domain resources are useful when the target service is behind a load balancer with frequently changing IP addresses.

Example scenario

A company hosts an accounting application at accounting.example.com on AWS infrastructure in the EU Central region. The application runs on an EC2 instance behind a load balancer.

The company wants to implement zero-trust access with role-based permissions:

• Finance team: HTTP/HTTPS access to accounting.example.com (ports 80 and 443)
• Support team: SSH access to the backend at example.com (port 22)

Prerequisites

Before starting, ensure you have:

• NetBird clients installed on finance and support team devices
• Routing peers configured in the AWS VPC using setup keys

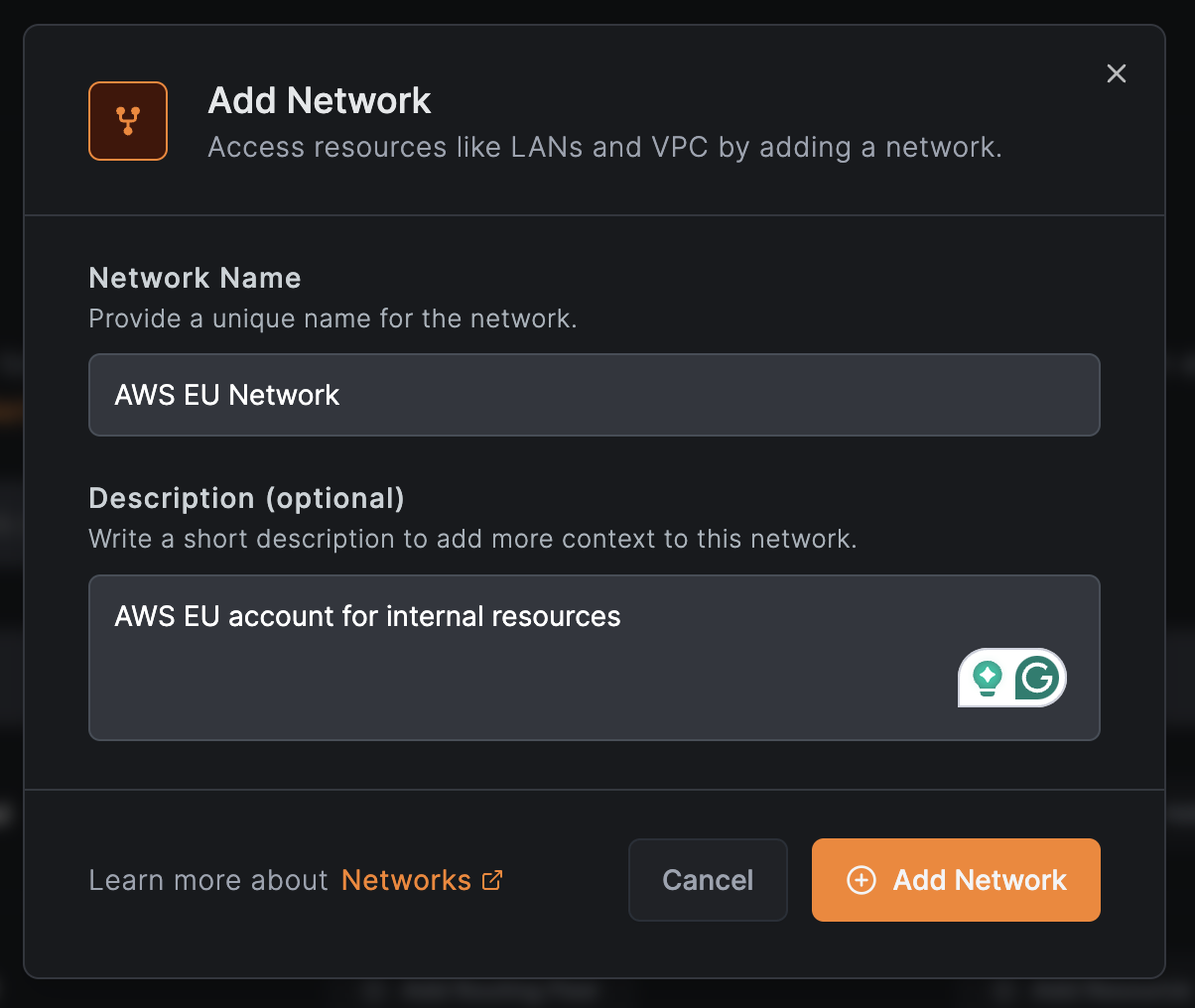

Create a network

1. Navigate to Networks > Networks in the NetBird dashboard
2. Click Add Network
3. Enter a name (e.g., AWS EU Network) and optional description
4. Click Add Network

Add routing peers

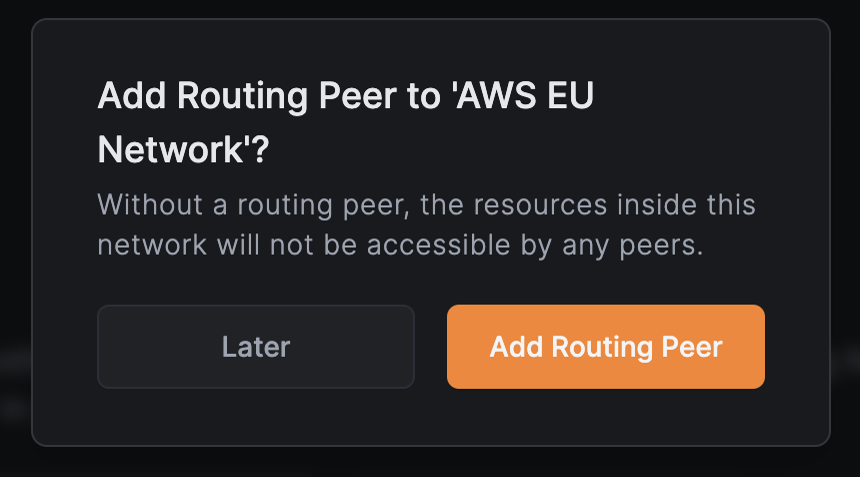

Click Add Routing Peer to enable access to the network's resources.

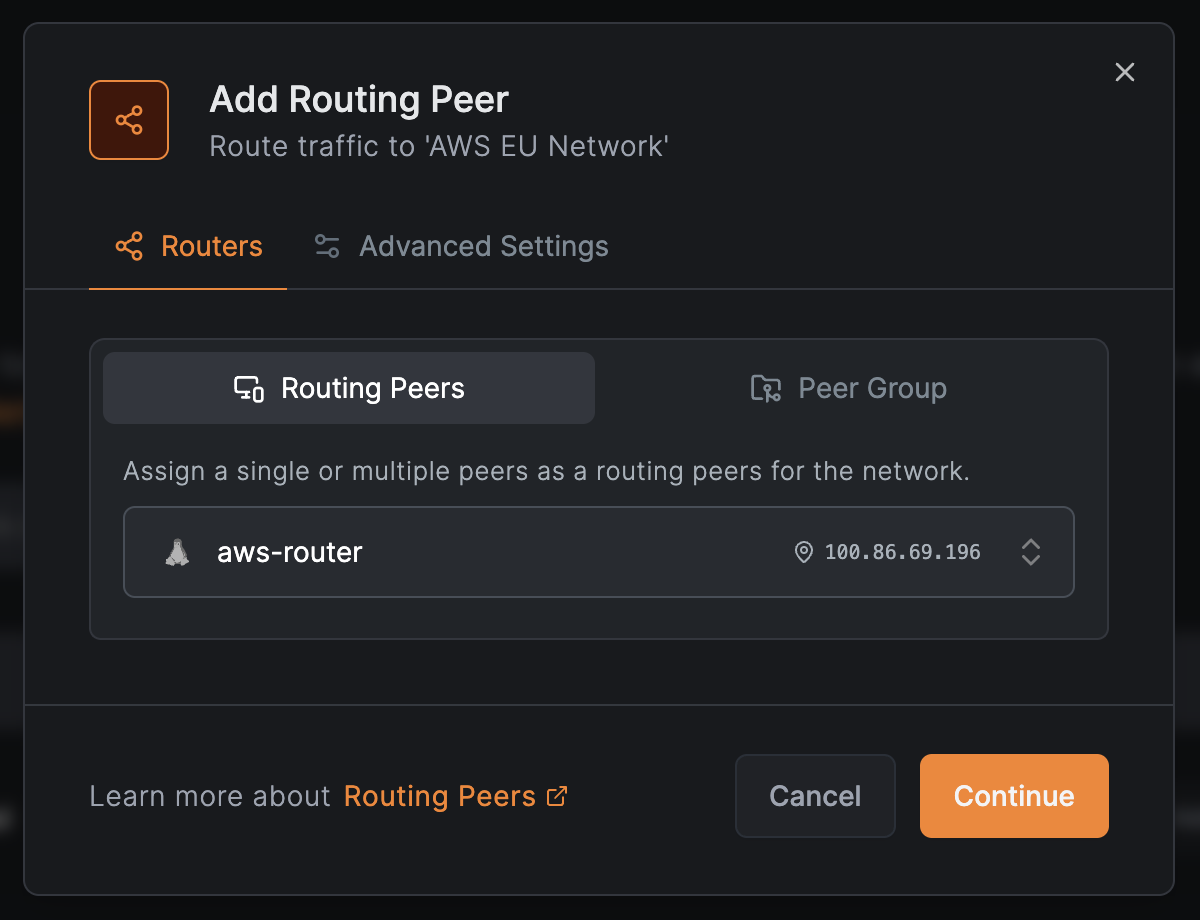

In the next window:

• Select Routing Peers to add a single peer (e.g., aws-router)
• Or select Peer Group to add multiple peers for high availability
• Click Continue

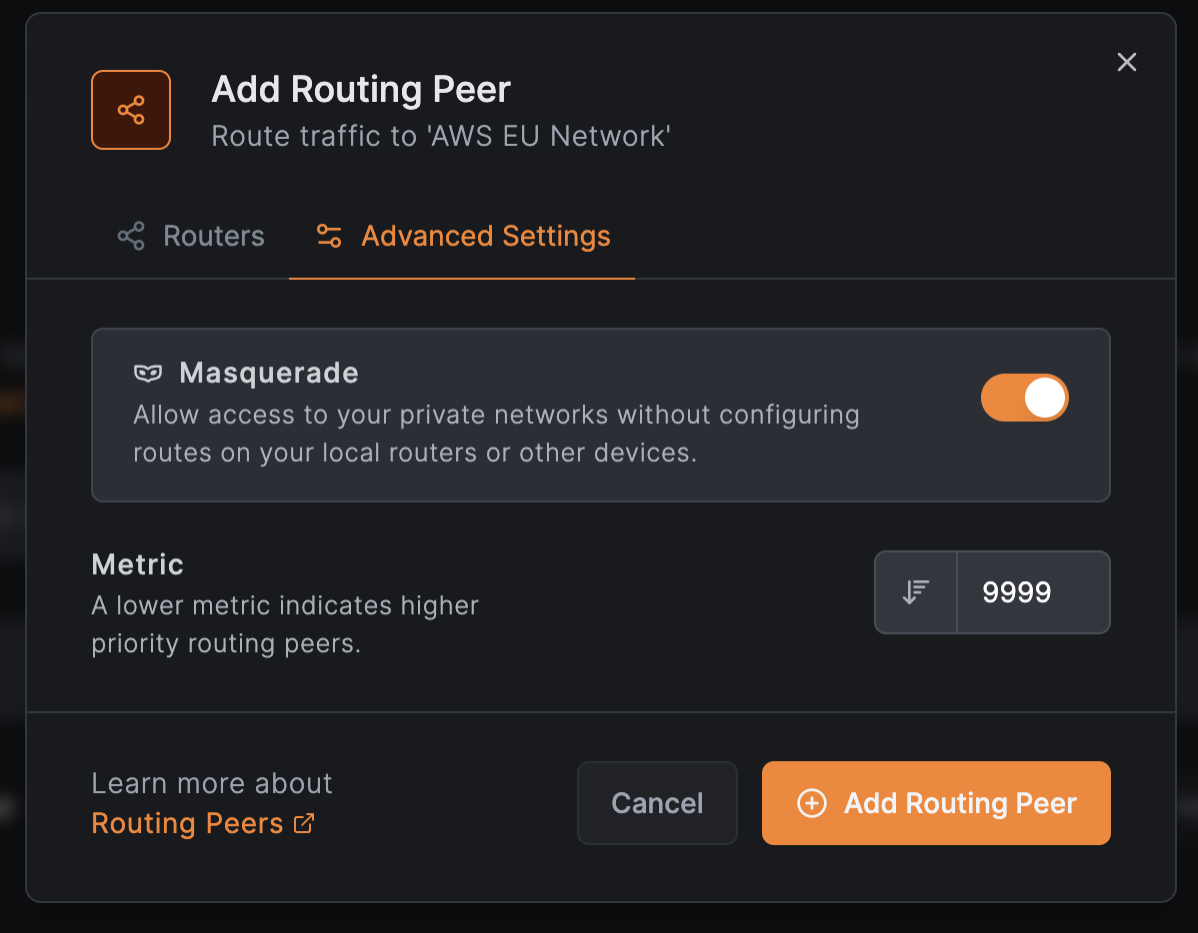

In Advanced Settings:

• Enable Masquerade to access private networks without configuring local routers
• Set Metric to prioritize routers (lower values = higher priority)
• Click Add Routing Peer

Add the accounting subdomain resource

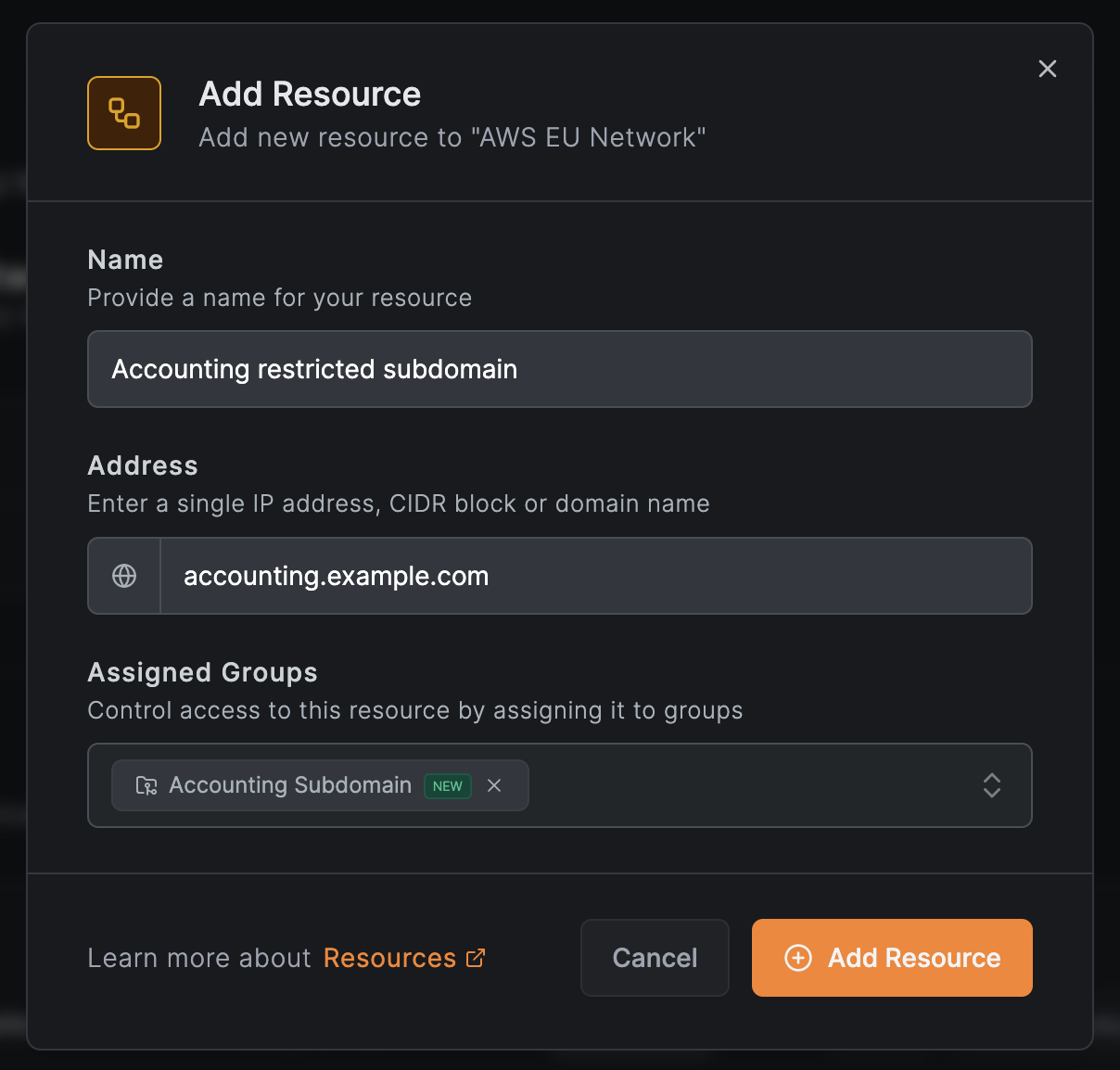

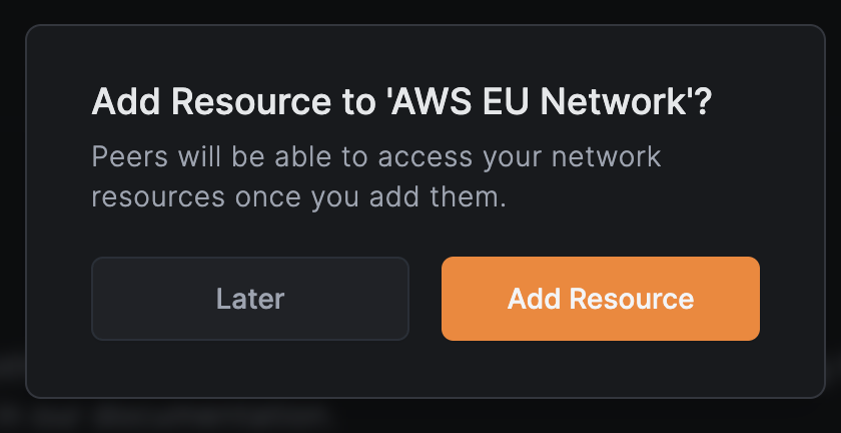

Click Add Resource to open the resource modal.

In the Resource tab, configure the resource:

• Name: Accounting restricted subdomain
• Address: accounting.example.com
• Expand Additional Options and under Resource Groups, select or create a group (e.g., Accounting Subdomain)
• Click Continue to proceed to the Access Control tab

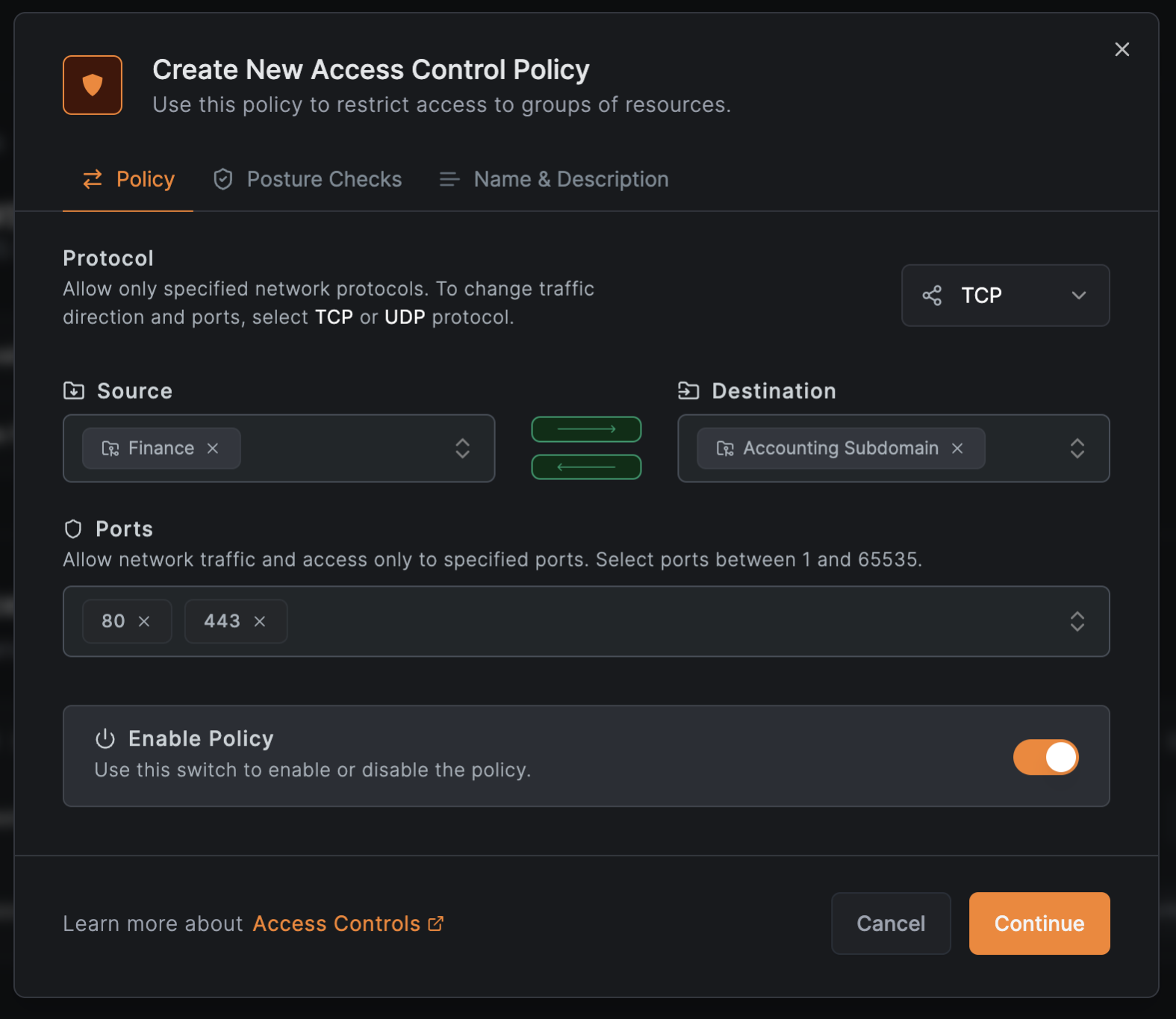

Create an access policy for the finance team

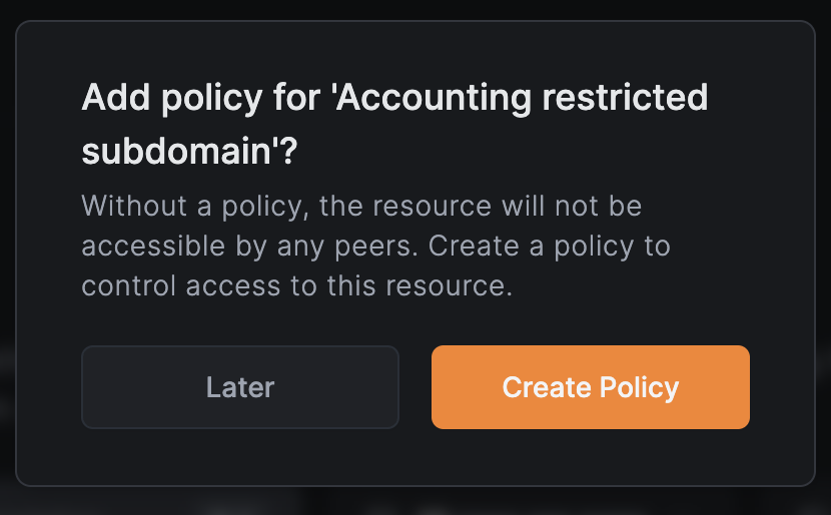

In the Access Control tab, click Add Policy to define access for the finance team.

Configure the policy:

• Protocol: TCP
• Source: Finance (the finance team group)
• Destination: Accounting Subdomain (auto-populated)
• Ports: 80 and 443

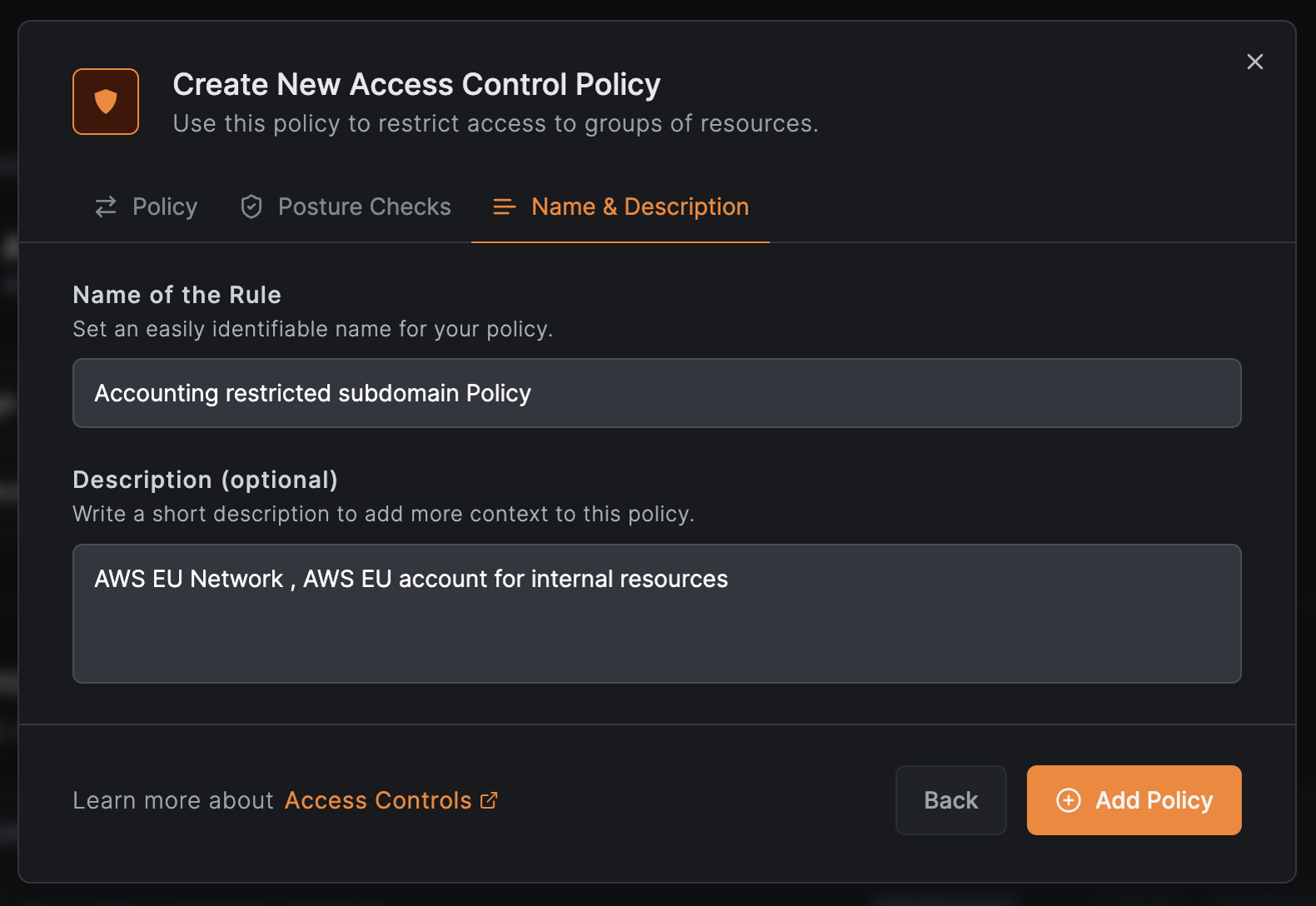

Click Continue to optionally add posture checks, then Continue again. Enter a policy name (e.g., Accounting subdomain Policy) and click Add Policy.

Click Add Resource to save the resource with its policy.

Add the top-level domain resource for support

The support team needs SSH access to the backend at example.com. Add a new resource:

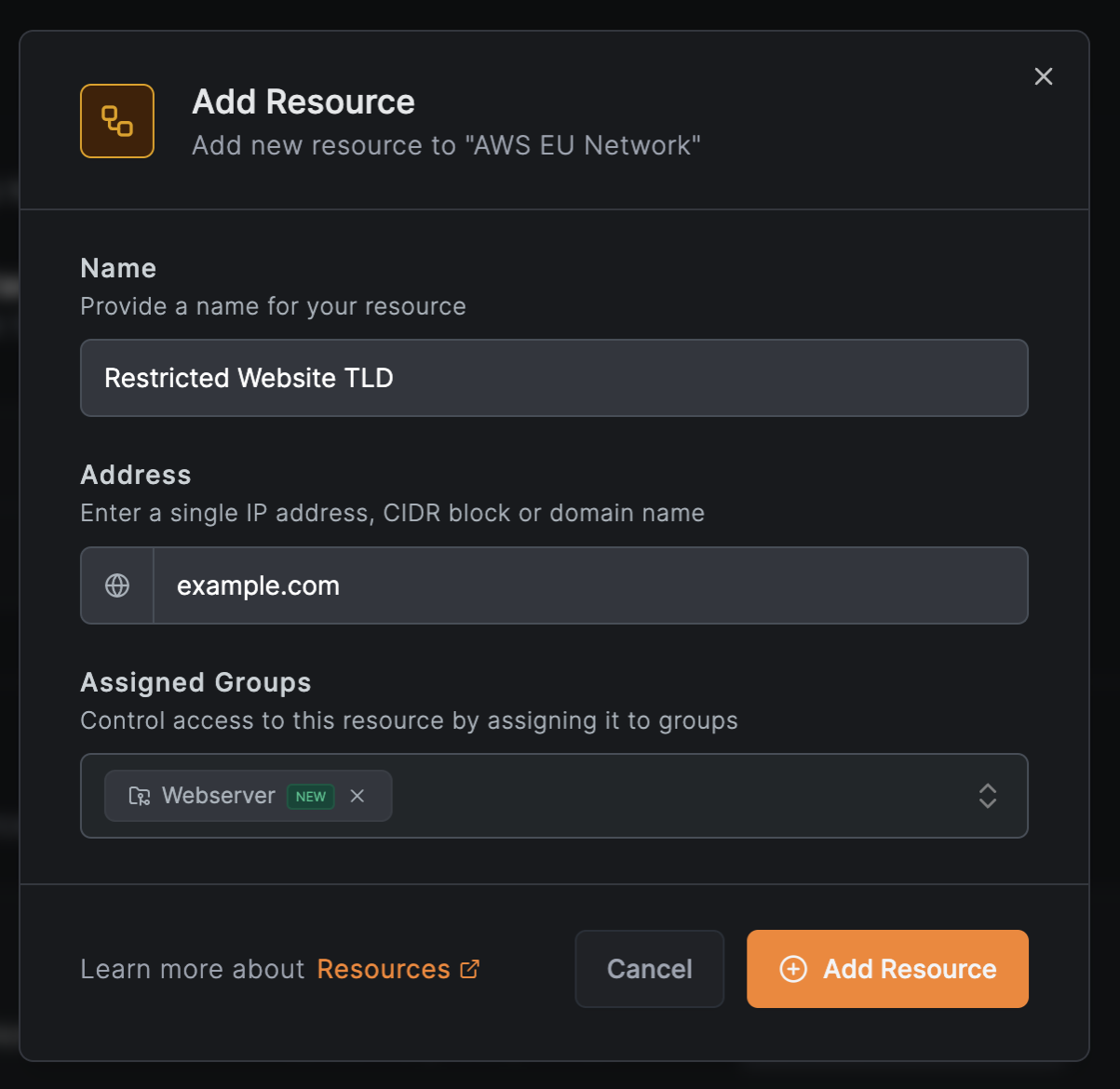

1. In the AWS EU Network screen, click Add Resource
2. In the Resource tab, configure:
   • Name: Restricted Website TLD
   • Address: example.com
   • Expand Additional Options and under Resource Groups, select or create a group (e.g., Webserver)
3. Click Continue to proceed to the Access Control tab

Create an access policy for the support team

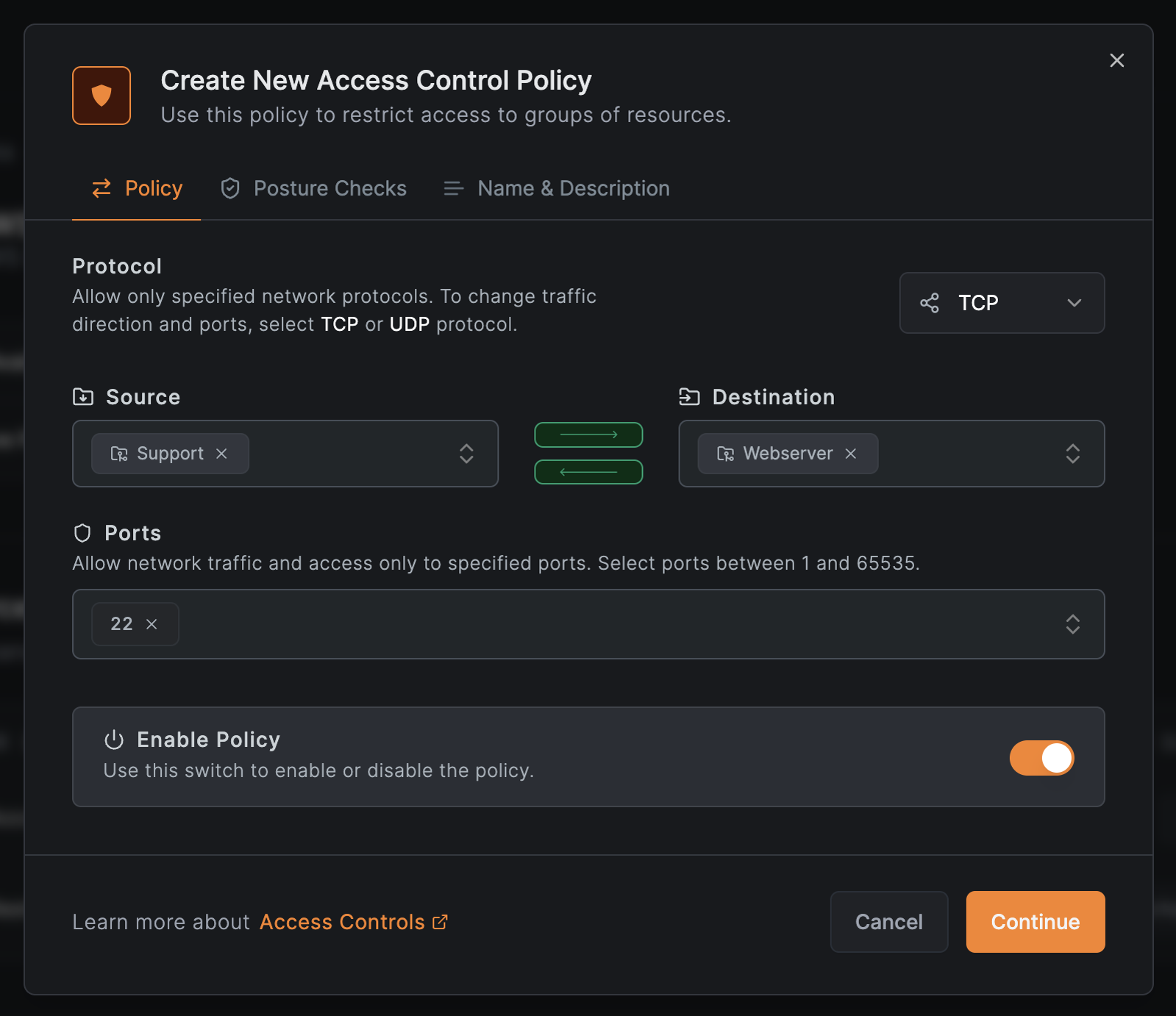

In the Access Control tab, click Add Policy to create a policy for SSH access:

1. Configure:
   • Protocol: TCP
   • Source: Support
   • Destination: Webserver
   • Ports: 22
2. Click Continue

3. Optionally add posture checks, then click Continue

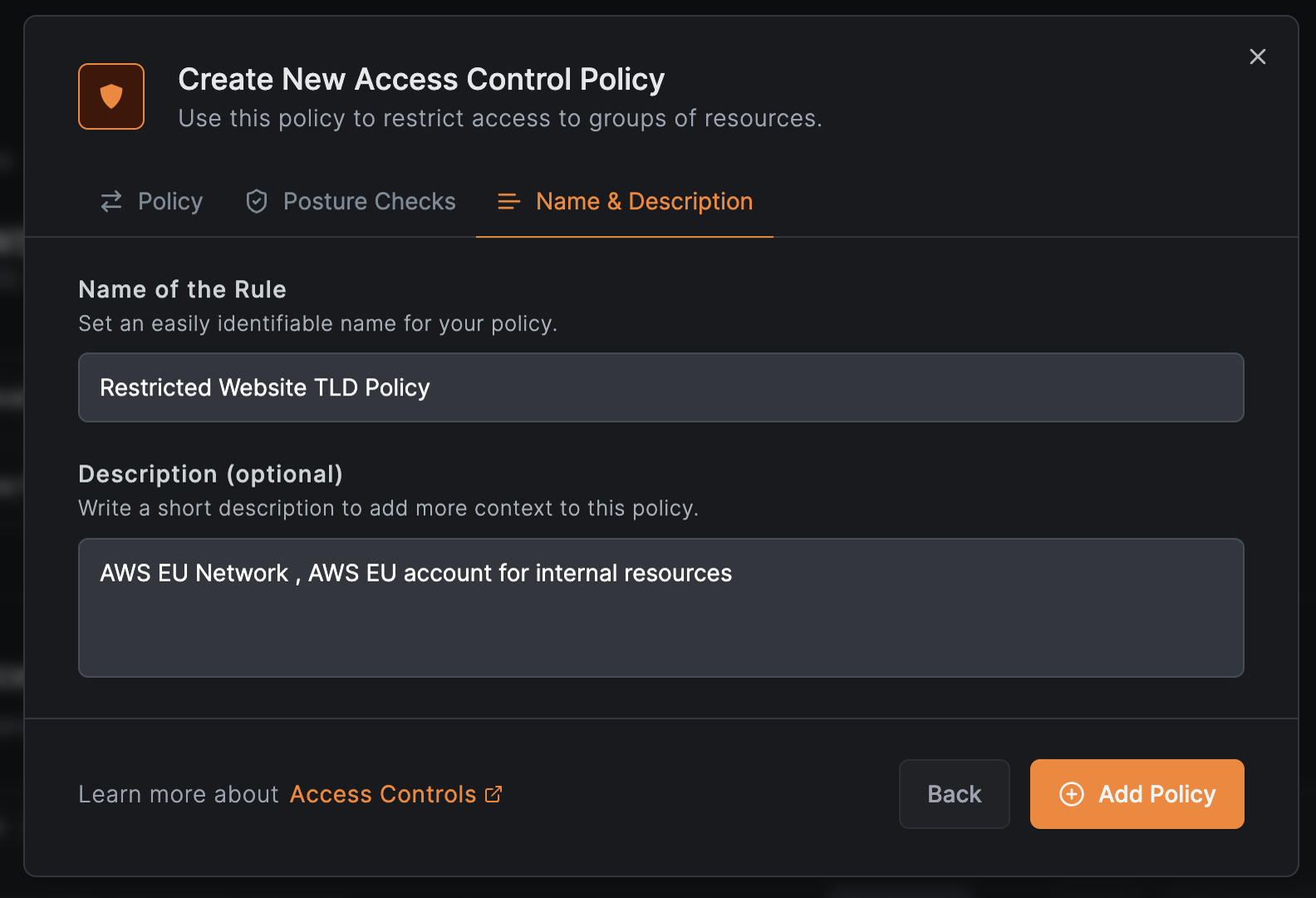

4. Enter a policy name (e.g., Restricted Website TLD Policy) and click Add Policy

Click Add Resource to save the resource with its policy.

Verify the configuration

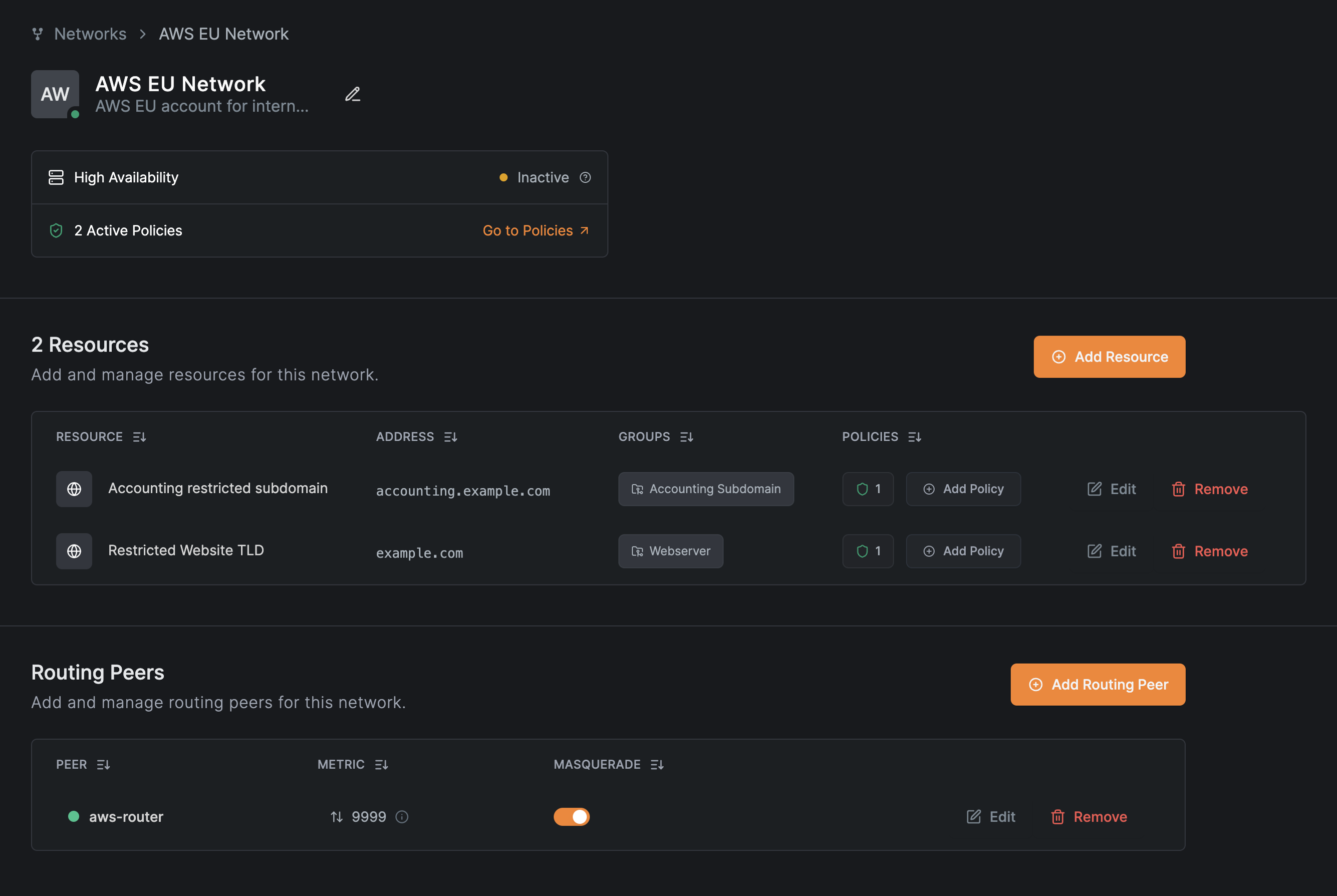

The completed network shows both resources with their access policies:

Use the NetBird CLI to verify access. From a finance team workstation:

$ netbird networks list
Available Networks:

  - ID: Accounting restricted subdomain
    Domains: accounting.example.com
    Status: Selected
    Resolved IPs: -

  - ID: Internal Web Services
    Domains: *.company.internal
    Status: Selected
    Resolved IPs: -

From a support team workstation:

$ netbird networks list
Available Networks:

  - ID: Internal Web Services
    Domains: *.company.internal
    Status: Selected
    Resolved IPs: -

  - ID: Restricted Website TLD
    Domains: example.com
    Status: Selected
    Resolved IPs:
      [example.com]: 93.184.215.14, 2606:2800:21f:cb07:6820:80da:af6b:8b2c

Each team sees only the resources they have access to, with appropriate port restrictions enforced by the access policies.
