Configuring Nameservers

Nameservers let you control which DNS servers your peers use and which domains they handle. This guide walks you through common configuration scenarios.

Before You Start

Make sure you understand:

• DNS basics and how NetBird handles DNS
• Which domains you want to resolve privately vs. publicly
• The IP addresses of your DNS servers

Creating Your First Nameserver

The nameserver configuration follows a step-by-step UI flow with three tabs:

1. Nameserver (required first) - Add DNS server IPs and distribution groups
2. Domains (unlocks after step 1) - Configure primary or match domain mode
3. Name & Description (unlocks after step 1) - Add descriptive information

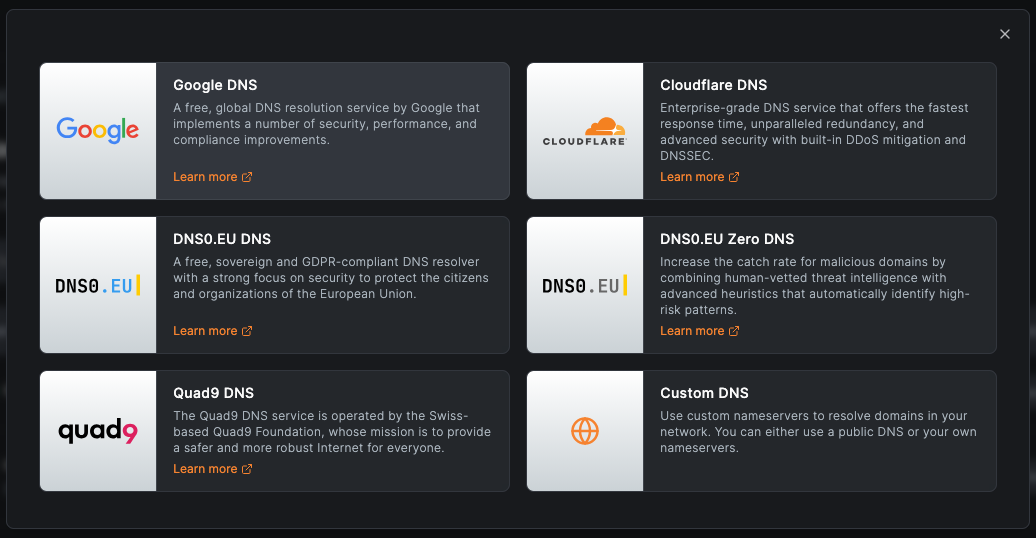

Step 1: Choose a DNS Provider

1. Log in to the NetBird dashboard
2. Navigate to DNS > Nameservers in the left sidebar
3. Click Add Nameserver
4. Select from predefined providers or choose Custom DNS to use your own

If you choose a predefined provider, the addresses are pre-filled for you.

Step 2: Configure Nameserver IPs and Distribution Groups (Nameserver Tab)

After selecting a provider, you'll be on the Nameserver tab. This is the first required step.

Add Nameserver IPs

Add a nameserver IP (or multiple IPs for redundancy):

Example configuration:

{
  "nameservers": [
    {"ip": "1.1.1.1", "port": 53},
    {"ip": "1.0.0.1", "port": 53}
  ]
}

Assign Distribution Groups

Select which peer groups will use this nameserver.

Click + Add Distribution Group and select one or more groups from the dropdown.

Enable/Disable Nameserver

Use the Enable Nameserver toggle to activate or deactivate this configuration without deleting it.

Step 3: Configure Domains (Domains Tab - Optional)

Once nameserver IPs and distribution groups are set, click Continue or navigate to the Domains tab.

Here you choose whether this is a primary nameserver (handles all domains) or a match domain nameserver (handles specific domains only).

Option A: Primary Nameserver (Leave Domains Empty)

Leave the Match Domains section empty for a primary nameserver that handles all DNS queries not matched by other nameservers.

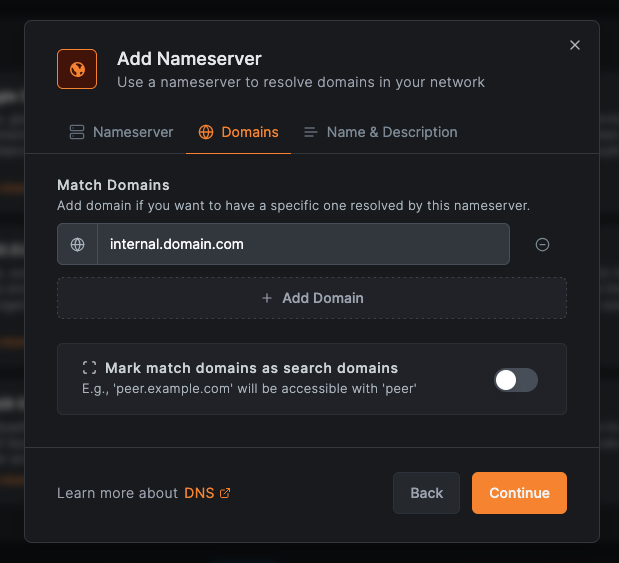

Option B: Match Domain Nameserver (Add Specific Domains)

Add specific domains that this nameserver should handle:

Click + Add Domain and enter domain patterns:

Supported patterns:

• Exact match: company.internal
• Wildcard subdomain: *.company.internal (matches app.company.internal but NOT company.internal itself)
• Multiple patterns per nameserver

Example for internal DNS:

company.internal
*.company.internal
internal.example.com
*.internal.example.com

Search Domains

Toggle Mark match domains as search domains to enable domain suffix searching.

When enabled:

• Typing server expands to server.company.internal
• Short names automatically try configured domains
• Only applies to match domain nameservers (not primary)

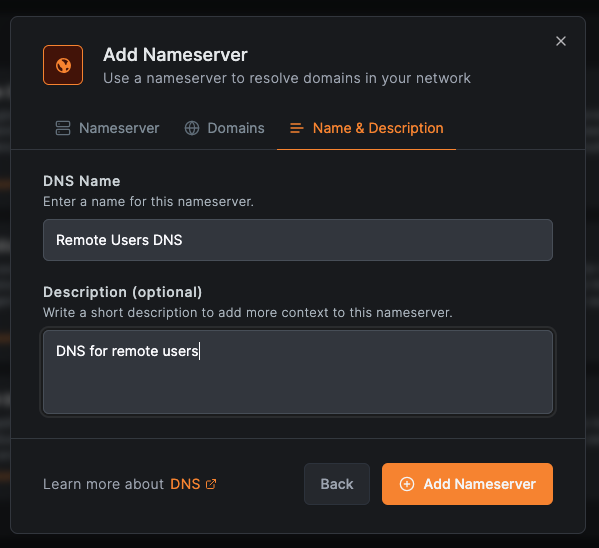

Step 4: Set Name and Description (Name & Description Tab)

Once nameserver IPs and distribution groups are configured, navigate to the Name & Description tab.

Step 5: Save and Verify

1. Click Continue to move through the tabs, or Add Nameserver when you're done configuring
2. The nameserver will be created and distributed to the selected peer groups
3. Wait 10-30 seconds for peers to receive the update
4. Test DNS resolution (see Troubleshooting)

Common Configuration Scenarios

Scenario 1: Simple Internal DNS

Goal: Use Cloudflare for internet, internal DNS for *.company.internal

Configuration:

{
  "name": "Cloudflare DNS",
  "description": "Public internet DNS",
  "nameservers": [
    {"ip": "1.1.1.1", "ns_type": "udp", "port": 53},
    {"ip": "1.0.0.1", "ns_type": "udp", "port": 53}
  ],
  "enabled": true,
  "primary": true,
  "domains": [],
  "search_domains_enabled": false,
  "groups": ["All Peers"]
}

Result:

• google.com → Cloudflare (1.1.1.1)
• app.company.internal → Internal DNS (10.0.0.1)
• server → Expanded to server.company.internal → Internal DNS

Scenario 2: Multi-Cloud Environment

Goal: Different DNS for AWS, GCP, Azure, and on-premise

Configuration:

{
  "name": "Google Public DNS",
  "primary": true,
  "domains": [],
  "nameservers": [
    {"ip": "8.8.8.8", "ns_type": "udp", "port": 53}
  ],
  "groups": ["All Peers"]
}

Scenario 3: Content Filtering for Mobile Devices

Goal: Block ads/malware on company phones and tablets

Configuration:

{
  "name": "NextDNS Filtering",
  "description": "Content filtering for mobile",
  "nameservers": [
    {"ip": "45.90.28.0", "ns_type": "udp", "port": 53}
  ],
  "primary": true,
  "domains": [],
  "groups": ["Mobile Devices"]
}

Scenario 4: Different DNS for Different Teams

Goal: Developers get internal DNS, guests only get public DNS

Configuration:

1. For Developers:

   • Primary: Public DNS (all domains)
   • Match: Internal DNS (*.company.internal)
   • Assigned to: "Developers" group

2. For Guests:

   • Primary: Public DNS only
   • No internal DNS access
   • Assigned to: "Guests" group

Advanced Configuration

DNS Failover and Redundancy

Always configure multiple nameservers:

{
  "nameservers": [
    {"ip": "10.0.0.1", "ns_type": "udp", "port": 53},  // Primary
    {"ip": "10.0.0.2", "ns_type": "udp", "port": 53},  // Secondary
    {"ip": "8.8.8.8", "ns_type": "udp", "port": 53}    // Fallback to public
  ]
}

The client will try servers in order with automatic failover.

Overlapping Domain Patterns

If multiple nameservers match a query, the most specific match wins:

Query: app.us-east.company.internal

Nameservers:
1. *.company.internal → DNS1
2. *.us-east.company.internal → DNS2

Result: Uses DNS2 (more specific)

Disabling DNS Management for Specific Groups

Some peers may need to keep their local DNS configuration (e.g., VPN requirements, corporate policy).

1. Go to DNS Settings (not Nameservers)
2. Add groups to Disabled Management Groups
3. Peers in these groups will ignore all NetBird DNS configuration

See DNS Settings for details.

Updating Nameservers

Editing an Existing Nameserver

1. Navigate to DNS → Nameservers
2. Click the group to edit
3. Modify settings
4. Click Save

Temporarily Disabling a Nameserver

Instead of deleting, you can disable:

1. Edit the nameserver
2. Toggle Enable Nameserver to OFF
3. Save

Peers will stop using this nameserver but the configuration is preserved.

Deleting a Nameserver

1. Click the nameserver
2. Click Delete
3. Confirm deletion

Best Practices

1. Start Simple

Begin with just two nameservers:

• One primary (public DNS)
• One match domain (internal)

Add complexity only as needed.

2. Use Descriptive Names

Bad: "DNS1", "Group A"
Good: "Internal Corporate DNS", "AWS VPC Resolver"

3. Always Have a Primary

Every peer should receive at least one primary nameserver, or they'll use unmanaged DNS.

4. Test in Stages

1. Create nameserver
2. Assign to a test distribution group first
3. Verify DNS works on test peers
4. Roll out to all peers

5. Document Your Domains

Keep a list of which domains belong to which systems:

company.internal → On-premise Active Directory
*.corp.company.internal → Corporate services
*.ec2.internal → AWS VPC
*.compute.internal → GCP

6. Monitor and Maintain

• Check that all nameserver IPs are reachable
• Update IP addresses if infrastructure changes
• Remove unused nameservers to keep configuration clean

Verifying Configuration

After creating nameservers, verify they're working:

Check Peer Status

1. Go to Peers in dashboard
2. Find a peer in your distribution group
3. Check DNS status indicator

Test from Peer

On the peer device:

# Check NetBird DNS is active
nslookup example.com 127.0.0.1

# Test internal domain resolution
nslookup internal.company.internal

# Check search domains
ping server  # Should expand to server.company.internal

See Troubleshooting for more diagnostic commands.

Advanced: Private DNS Behind Routing Peers

If your DNS server is on a private network accessible only through a routing peer, you need to set up network routes and access control in addition to the nameserver configuration.

Scenario

You have:

• DNS server: 192.168.0.32:53 on a private network
• Routing peer: Can reach the 192.168.0.0/24 network
• Client peers: Need to query this DNS through the routing peer

Setup Requirements

1. Configure the Nameserver

Create a nameserver pointing to your private DNS:

• IP: 192.168.0.32
• Port: 53
• Distribution groups: Your client peer groups (e.g., "Remote Developers")

2. Create a Network Route

Set up a network route so clients can reach the DNS server:

• Network: 192.168.0.0/24
• Routing peer: The peer that can access this network
• Distribution groups: Same as your nameserver (e.g., "Remote Developers")

3. Configure Access Control

Create an access control rule allowing DNS traffic:

• Source: Client groups (e.g., "Remote Developers")
• Destination: Routing peer's group
• Protocol: UDP
• Port: 53

DNS Forwarder Port

This forwarder port is internal to NetBird's routing mechanism - you don't need to configure it, but may see it in logs or network traces.

Next Steps

• DNS Settings - Disable DNS management for specific groups
• Troubleshooting - Fix common DNS issues
• API Reference - Automate with the API
