Plan and Deploy Changes with Draft Mode

Updated September 4, 2026

Every edit in the NetBird dashboard applies the moment you save it. That is fine for a single tweak, but a real change, like onboarding a new server, spans a peer, a group, and a policy, and a slip lands on production immediately.

Draft Mode removes that risk. It turns the Control Center canvas into a local working copy: sketch the whole change, review the exact API requests, and apply everything as one batch.

A draft moves through three stages: build on the canvas, review the change list, and deploy as one batch. Nothing touches your account until you click Approve & Deploy.

One example carries through the whole page: giving DevOps HTTPS access to staging-01, a new staging server that is not even installed yet.

Enter Draft Mode

In Control Center, switch the Live | Draft toggle in the top-right corner to Draft, then select either New Empty Draft or From Current View:

• From Current View: start from a copy of the canvas you are looking at. Pick this when you are modifying things that already exist; the draft reproduces the live view exactly, network nodes included.
• New Empty Draft: start from a blank canvas. Pick this when you are building something new from scratch, like our staging-01 setup.

Canvas Toolbar

The toolbar at the bottom of the canvas holds the select and hand (pan) tools, zoom controls, and the actions below. Every edit you make in a draft is tracked as a change and applied only at deploy.

Select and Pan

• Select (V) is the default tool: click a node to select it, drag it to move it, or drag across empty canvas to select several nodes at once.
• Hand (H) pans the canvas as you drag, so you can move around a large draft without touching any nodes.

Add Nodes

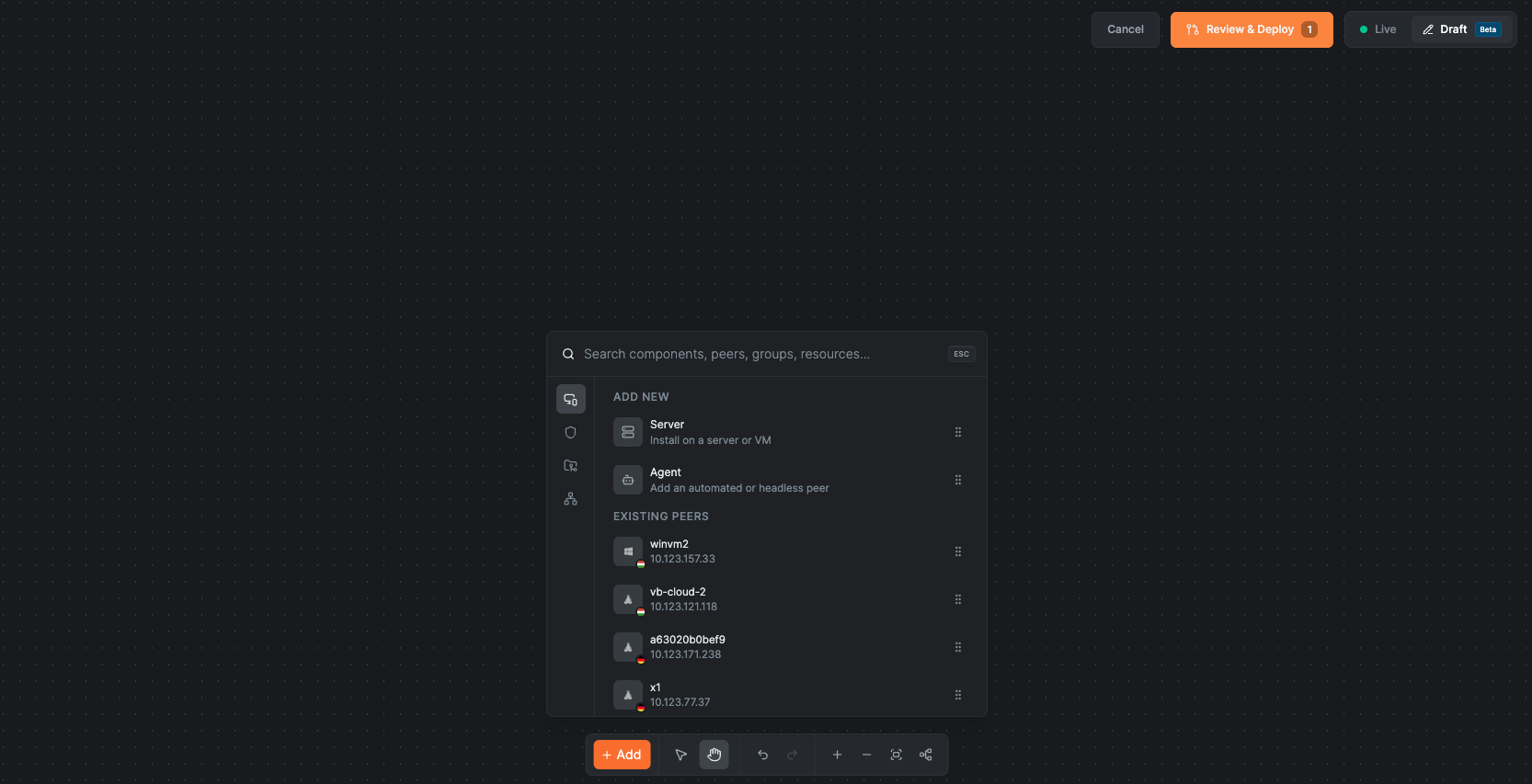

Click Add in the toolbar (or press C) to open the components panel. It covers both kinds of adding:

• Add new: drag-and-drop templates for components that do not exist yet (Server, Agent, Policy, Group, Network, Resource). Server and Agent both create placeholder peers and are installed the same way, with a setup key; pick whichever matches the machine's role.
• Add existing: searchable lists of the peers, groups, networks, and policies already in your account. Components already on the canvas are marked accordingly.

You can also right-click the canvas to pick a component from the context menu, or press Alt/⌥+1 through Alt/⌥+6 to create a new Server, Agent, Policy, Group, Network, or Resource at the center of the view.

For our example, drag a Server template onto the canvas. It arrives as a placeholder peer: a stand-in for a machine that has not registered yet (see Install peers that don't exist yet).

Then drag a Group onto the canvas for the access we are about to grant.

Network and Resource templates work the same way and integrate with Networks; connecting a policy to a network node asks which of its resources the policy should target.

Undo and Redo

Ctrl/⌘+Z undoes any canvas action, Shift+Ctrl/⌘+Z redoes it.

Fit to View

Fit to view (1) zooms and centers the canvas so the whole draft is on screen.

Auto-Arrange

Auto-arrange (A) reflows the nodes into a tidy layout, handy after a lot of dragging. Layout changes are visual only; they are never part of the deployed changes.

Interact with Nodes

We carry the staging-01 example through each action below.

Rename Nodes

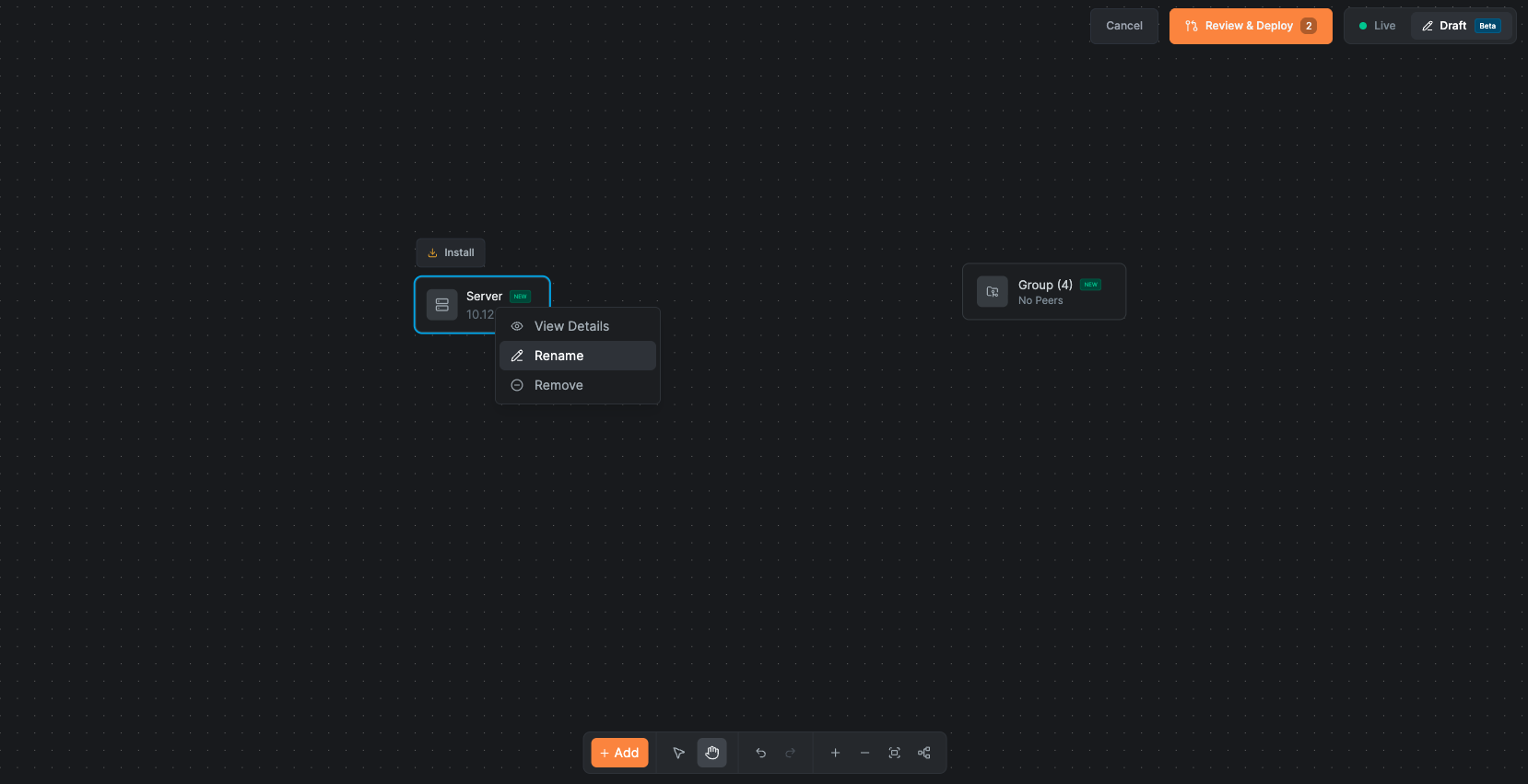

Right-click a node and choose Rename. We rename the server to staging-01 and the group to Staging. Names must be unique, and the built-in All group cannot be renamed.

Assign Peers to Groups

Drag the staging-01 node onto the Staging group. The peer is absorbed into the group and the group's member count goes up. Membership travels with the group's change, so you never manage it separately.

To group several peers at once, drag a selection across them, then click Create Group in the selection menu (or press G) and name the group:

Connect Nodes to Create Policies

Drag the existing DevOps group from the components panel onto the canvas, then drag a connection from DevOps to Staging. The standard policy editor opens with both sides prefilled. Restrict it to what the team actually needs: TCP port 443 for the web app, not all traffic. The first policy you deploy should already be the least-privilege one.

That is the whole change: a new server, its group, and one policy, and nothing has touched your network yet. The Review & Deploy counter now reflects each tracked change.

A few more ways to build policies:

• The side you drag from decides the direction. Dragging a connection from a node's right handle makes that node the policy's source; dragging from the left handle makes it the destination.
• Policies without the editor: drop a blank Policy node and connect a source and a destination to it. The policy is tracked as soon as both sides are set, no dialog involved.
• Groups on the fly: typing a new name into the policy editor's source or destination selector creates that group as part of the draft.

Install Peers That Don't Exist Yet

staging-01 does not exist yet, and Draft Mode does not need it to. A placeholder peer holds the machine's place on the canvas: you can group it and write policies against it, and when the real machine registers, it inherits everything you prepared.

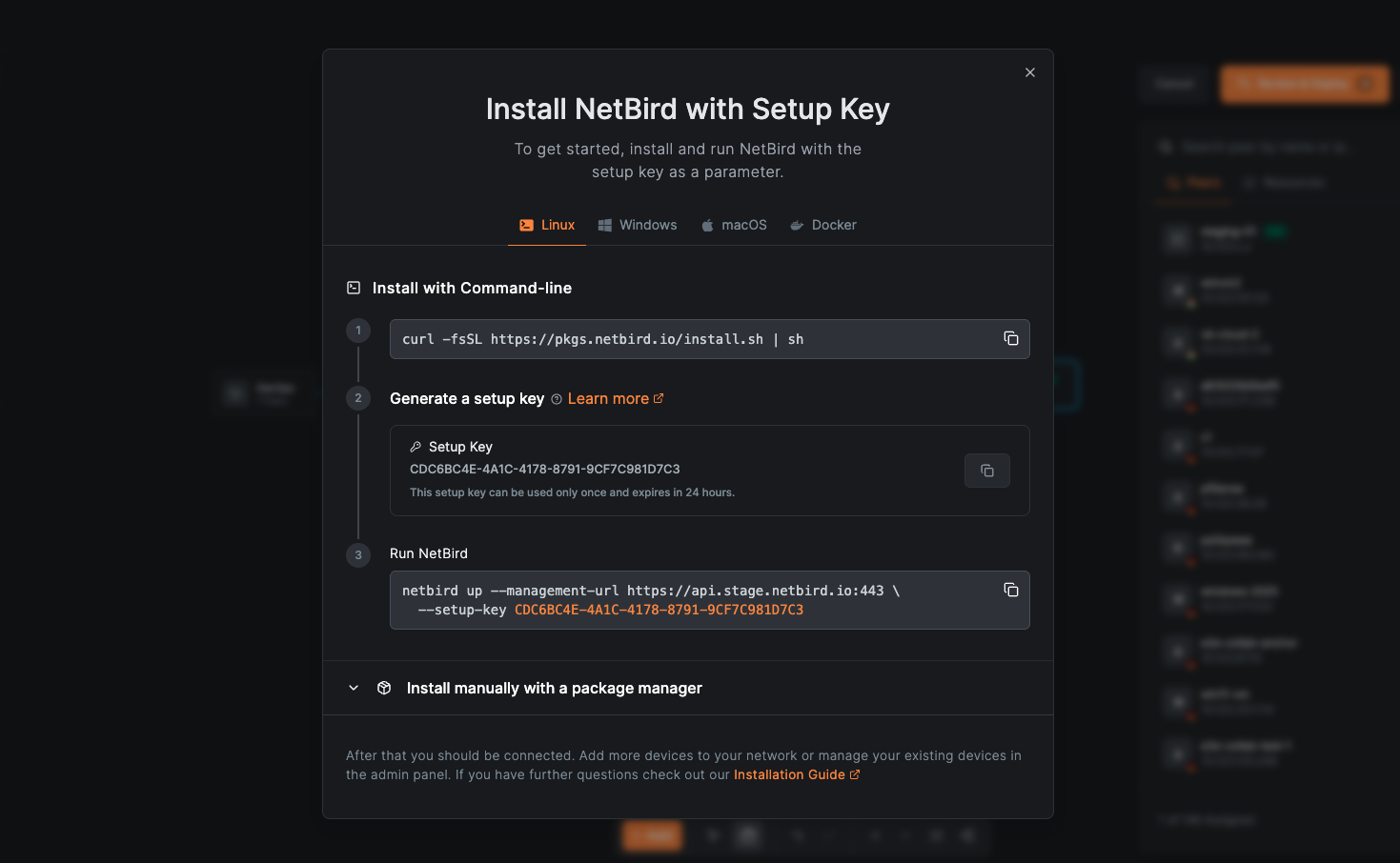

To turn the placeholder into a real peer, hover it and click Install:

1. The Install NetBird dialog opens with instructions per operating system. Click Generate a setup key and run the shown command on the machine.

2. The placeholder switches to Waiting while the machine registers.
3. When it connects, the placeholder is replaced in place: the real staging-01 takes over its name, its Staging membership, and the policy you drew. The temporary setup key is deleted automatically.

Remove and Delete Nodes

Remove and Delete do different things:

• Remove takes a component off the canvas and nothing more. It never asks for confirmation because it never touches your network; removing something also cancels any pending change it was part of. Backspace on a selected node does the same.
• Delete is only offered for things that actually exist in your account. It always asks for confirmation, shows up as a red Delete entry in the review list, and the deletion happens at deploy.

Review and Deploy

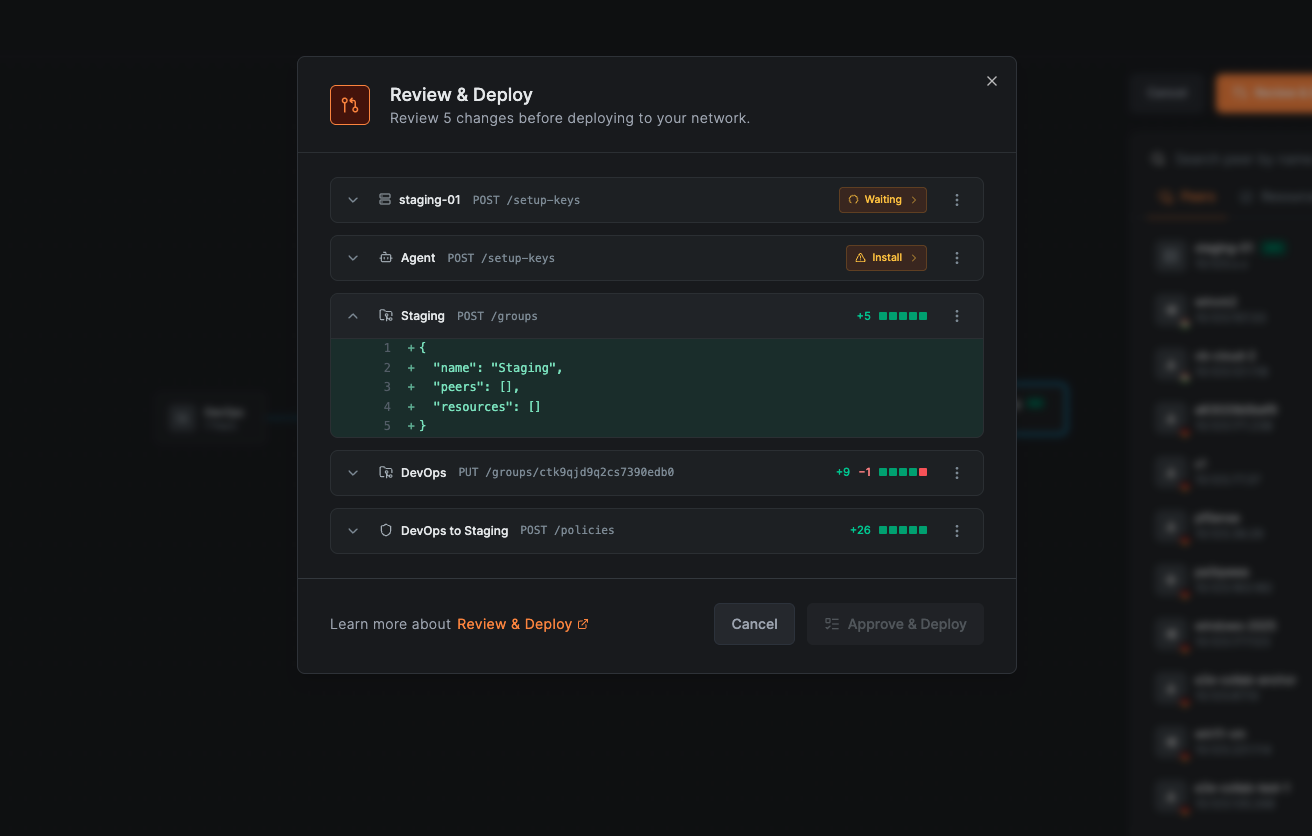

Click Review & Deploy. The review dialog lists every change in the exact order it will be applied, one row per operation:

• Each row shows the affected component and the HTTP request that will be sent (like POST /groups). Clicking the request copies it as a cURL command; expanding the row shows the request body as a diff.
• For our example you would see the Staging group creation, the DevOps → Staging policy creation, and the staging-01 install step.

If something is unfinished, the row carries an amber issue badge you can click to fix it in place: Install for a placeholder that has no machine yet, or No Network for a resource that is not assigned to any network. Approve & Deploy stays disabled until every blocking issue is resolved.

To drop a single change without discarding the whole draft, open the row's menu and choose Remove; a confirmation lists exactly what that reverts on the canvas before you commit to it.

When everything is green, click Approve & Deploy:

• Changes apply in dependency order: groups first, then networks, resources, routing peers, and policies, with deletions last. References resolve as the batch runs, so the new policy points at the Staging group created moments earlier.
• If a request fails, the deploy stops with the error. Changes that already applied stay applied and are marked with a check; fix the failing one and click Approve & Deploy again to resume from where it stopped.
• On success you get a Deploy complete confirmation, the draft closes, and the live canvas rebuilds with your changes in place.

Leaving a Draft

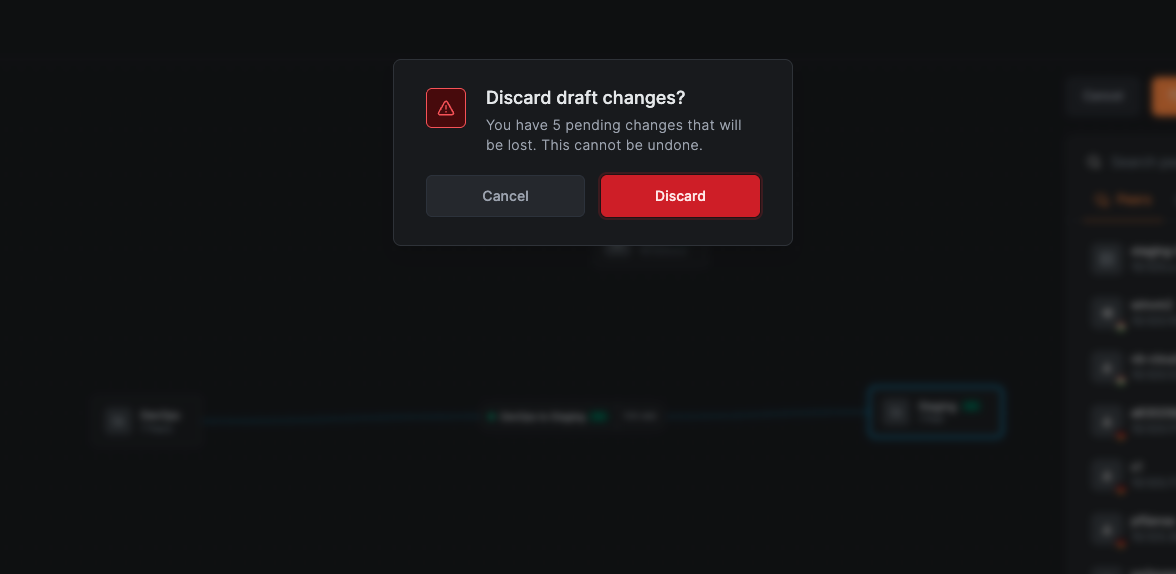

Click Cancel (or switch back to Live) to abandon a draft. With pending changes you are asked to confirm discarding them; navigating to any other dashboard page asks the same question first, and a page reload triggers the browser's own warning. Temporary artifacts a draft created for peer installation, like setup keys, are cleaned up automatically when the draft is discarded.

When Not to Use Draft Mode

For a single, self-contained edit, like widening one policy's port range, Draft Mode is overhead: edit the policy directly from the live Control Center view (the dashboard confirms before applying live changes) or from its regular page. Drafts are also never stored, so Draft Mode is not a place to park a half-finished configuration and come back to it another day: it fits changes you can build and deploy in one sitting. Draft Mode earns its keep when a change spans several components, needs a machine that is not installed yet, or deserves a review before it goes live. For automated or repeated changes, use the NetBird API instead.

Keyboard Shortcuts

Recap

• A draft is a working copy of your network: build on the canvas, review the change list, deploy as one batch. Nothing is written until you click Approve & Deploy.
• Our example never left that path: we placed staging-01, grouped it into Staging, and drew a least-privilege HTTPS policy from DevOps, all before the server even existed.
• Installing a placeholder slots the real machine into everything you prepared for it.
• Remove edits the canvas; Delete edits your network.
• The review shows the literal API requests in deploy order, and a failed deploy resumes where it stopped.
